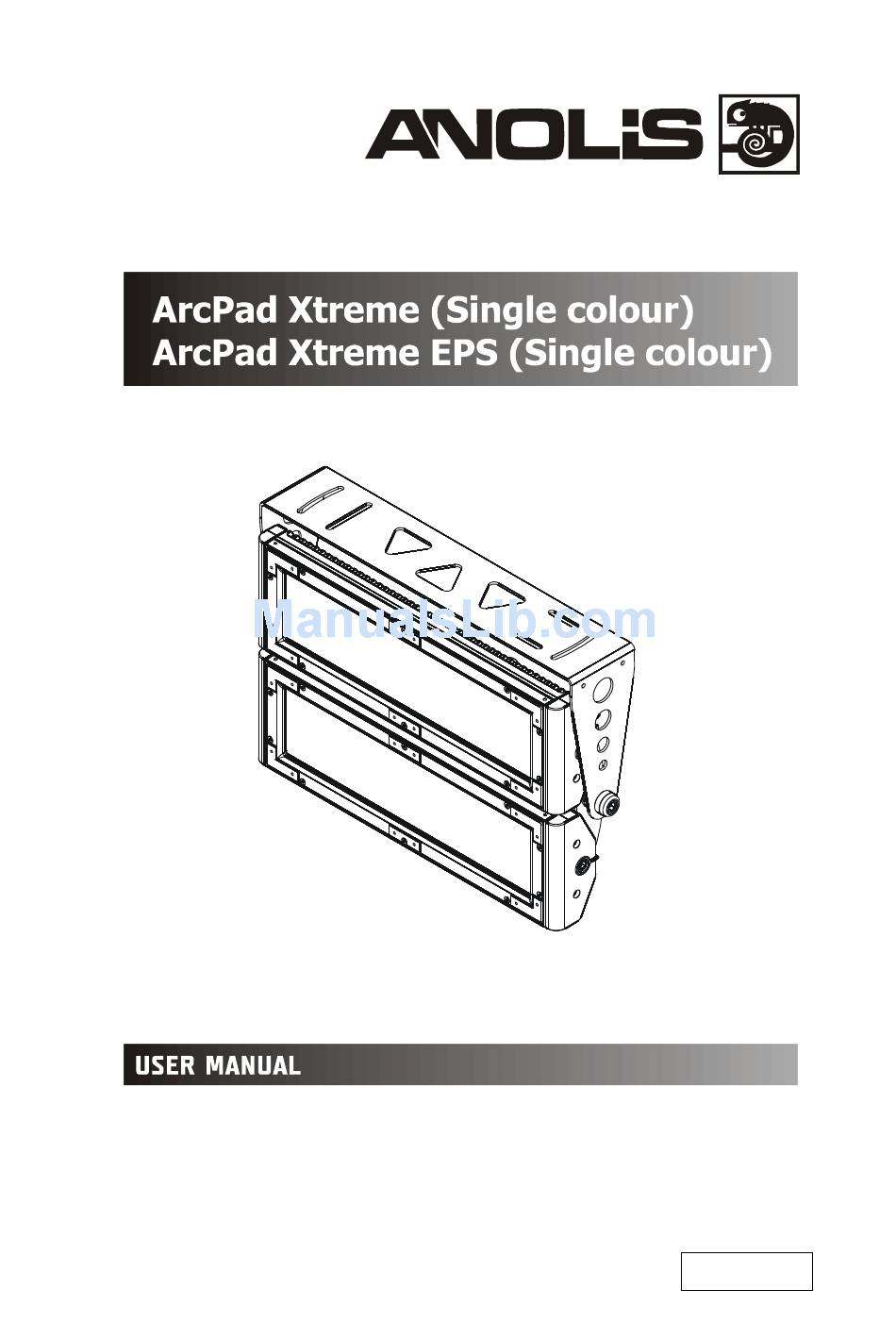

ArcPad Xtreme (Single colour) Table of contents 1. Safety instructions ..............................3 2. Fixture exterior view ..............................4 3. Installation .................................. 5 3.1 Mounting the fixture ............................5 3.2 Connection to the mains ............................6 3.3 Installation of the barn-doors, top/half top hats ....................7 3.4 Setting and control ...............................
ArcPad Xtreme (Single colour) FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR ArcPad Xtreme ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.
ArcPad Xtreme (Single colour) When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust. Avoid using the unit in locations subject to possible impacts. The fixture body never must be covered with cloth or other materials. Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.
ArcPad Xtreme (Single colour) 3. Installation 3.1 Mounting the fixture Ensure that the structure (truss, wall) to which you are attaching the fixture is secure. The ArcPad Xtreme can be arranged in any position orientation. The ArcPad Extreme allows to adjust its LED modules to the desired position either both modules together (by means of the Allen key 14 ) or each module separately (by means of the self-locking screws).
ArcPad Xtreme (Single colour) 3.2 Connection to the mains Fixtures must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulation The ArcPad Xtreme is equiped with a 5-cored power/data cable. The 3 cores serve for the power supply and next 2 shielded cores are intended for DMX connection.
ArcPad Xtreme (Single colour) 3.3 Installation of the barn-doors, top/half top hats You can install barn-doors or top hats to better define illuminated surface. Before installing the equipment disconnect the fixture from the mains. 1. Fit the barn-doors module (1) or top/half top hat (2) on the LED module (4) and fasten it by means of the 12 screws (3) as shown on the picture below.
ArcPad Xtreme (Single colour) 2. RDM Communicator Note: DMX controller has to be disconnected from the fixture when the RDM communicator is operated. After addressing and setting fixtures´behaviour you can use the Cyber Arch (after programming it) for stand-alone operation of fixtures. 3.5 DMX 512 connection To build a DMX chain 1.
ArcPad Xtreme (Single colour) 3.7 Stand-alone operation The fixtures on a data link are not connected to the controller but can execute pre-set programs which can be different for every fixture. To set the program to be played, see the "Stand-alone setting" (menu "St.AL."). "Stand-alone operation"...
ArcPad Xtreme (Single colour) 4. ArcPad Xtreme (Single colour) - DMX protocol Version 1.0 Mode Value Function Type of control Dimmer –LED module 1 0 - 255 Dimmer intensity from 0% to 100% proportional Dimmer –LED module 2 0 - 255 Dimmer intensity from 0% to 100% proportional Strobe –both LED modules...
ArcPad Xtreme (Single colour) 5. Control menu map Default settings=Bold print Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 A001 dM.Ad. 001-512 MA.SL. d.AbL MASt. InFo Poti. totL totL rSEt rSEt DM.In.
Page 12
ArcPad Xtreme (Single colour) Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 In.Po. CoL.1 0-255 F.dim 0-255 Stor. dFSE MAn.M. PrE.C. CoL.1 Co1.1..Co1.3 dimr dim0...dim.7 Man.C. rEd1 0-255 F.dim 0-255 TESt St.AL.
ArcPad Xtreme (Single colour) Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 rdMH Adj. CoL.1 F.dimr CaL.U. CoL.1 CoL.16 Stor. Hold On, Off uPd. 6. Fixture menu RDM communicator: Connect the RDM communicator to the fixture and from the menu “Control” select the “Remote LED display” item.
Page 14
ArcPad Xtreme (Single colour) The Remote LED Display window will appear. Now you can fullly control the fixture using the UP, Down, Enter, Escape and Reset buttons.
ArcPad Xtreme (Single colour) 6.1 Fixture Address Use this menu to set the DMX address of the fixture or set the fixture as a Master (Slave). dM.Ad. --- DMX addressing. Select this submenu to set a DMX start address. To set a DMX address. 1.
ArcPad Xtreme (Single colour) Note: The ambient temperature should not exceed 40°C. Measuring points: LEdS.--- the temperature of the LEDs module. boAr. --- the temperature on the PCB in the fixture head. The temperatures can be displayed in either °C or °F units - see option “tEM.U“ in the menu “Pers“. VErS.
ArcPad Xtreme (Single colour) “dimr“ - a dimmer “F.dim” a fine dimmer 4. Press the ENTER button and use the UP/DOWN buttons to set value , press the ENTER button to confirm it. 6. 5 Test sequences Use this menu to run demo-test sequences without an external controller, which will show you some possibilities of using the ArcPad Xtreme.
To update software in the fixture: I. Installation of the DMX Software Uploader. 1. DMX Software Uploader program is available from theAnolis web site at WWW.anolis.cz. 2. Make a new directory ( e.g. Anolis_Uploader) on your hard disk and download the software into it.
Page 19
ArcPad Xtreme (Single colour) Press the ENTER button. Use the UP/DOWN buttons to select “ uPd.“ item. Press the ENTER button Use the UP/DOWN buttons to select “ yES“ option Press the ENTER button Note: If you do not want to continue in software update, you have to switch off and on the fixture to escape from this menu.
ArcPad Xtreme (Single colour) Select COM if the serial port is used. Select DreamBox1 if the USB port is used. If the connection is OK, click on the Start Uploading button to start uploading. It will take several minutes to perform software update. If the option "Incremental Update" is not checked, all processors will be updated (including processors with the same software version).
ArcPad Xtreme (Single colour) Parameter ID Discovery command SET command GET command SOFTWARE_VERSION_LABEL DMX_START_ADDRESS IDENTIFY_DEVICE DEVICE_MODEL_DESCRIPTION MANUFACTURER_LABEL DEVICE_LABEL SENSOR_DEFINITION SENSOR_VALUE DISPLAY_LEVEL DEVICE_RESET DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION STATUS_MESSAGES STATUS_ID_DESCRIPTION DEVICE_HOURS 8. Error and information messages t.M.Er.(Temperature measuring error) The message informs you that the LED module temperature sensor is defective. MA.Er.
ArcPad Xtreme (Single colour) 9. Technical specifications Power supply • Electronic auto-ranging • Input voltage: 100 - 250V AC, 50-60 Hz • Power consumption Power Max. power consumption Typical power consumption Ambient mode (All LED channels at full) ( 2 LED Channels at full) Temperature Full mode 580W (590VA)
Page 23
ArcPad Xtreme (Single colour) Temperatures • Maximum ambient temperature: 40° C • Maximum housing temperature: 85° C Dimensions (mm) ArcPad Xtreme...
Page 24
ArcPad Xtreme (Single colour) Junction box Weight • 57 kg Protection factor • IP 67, IP 66 junction box Included items • 1 x ArcPad Xtreme • 1 x Junction box (No.99012672) • 1 x User manual • 1 x Gasket of cable grommet M20, PF ½ (P.N. 1305 1388) Optional accessories •...
ArcPad Xtreme (Single colour) 10. Cleaning and maintenance DANGER ! Disconnect from the mains before starting any cleaning or maintenance work Rinse off loose dirt with a garden hose or low pressure water spray. Wash the housing with a soft brush or sponge and a mild, non-abrasive washing detergent.
ArcPad Xtreme (Single colour) 11.Apendix 11.1 ArcPad Xtreme EPS Besides the ArcPad Xtreme exists variant with separated LED modules and control unit, which is named the ArcPad Xtreme EPS. Its differences compared to the ArcPad Xtreme integral are described below. Control ans setting is the same as at the compact version.
Page 27
ArcPad Xtreme (Single colour) Standard cables allow max. distance betwen LED module and control unit cca 0.7m. For longer distance you have to use adapter cables wired 1:1. Max. length betwen LED module and control unit must not exceed 20m. If the LED modules and the base are installed separately on the metal structure (LED modules and the base are galvanic interconnected), the LED modules fall under protection class I and must be grounded in accordance with all national and local electrical and construction regulations.
Page 28
ArcPad Xtreme (Single colour) Dimensions (mm) Weight LED module with mounting bracket: 24 kg Control unit: 9 kg Specifications are subject to change without notice. July 21, 2014...
