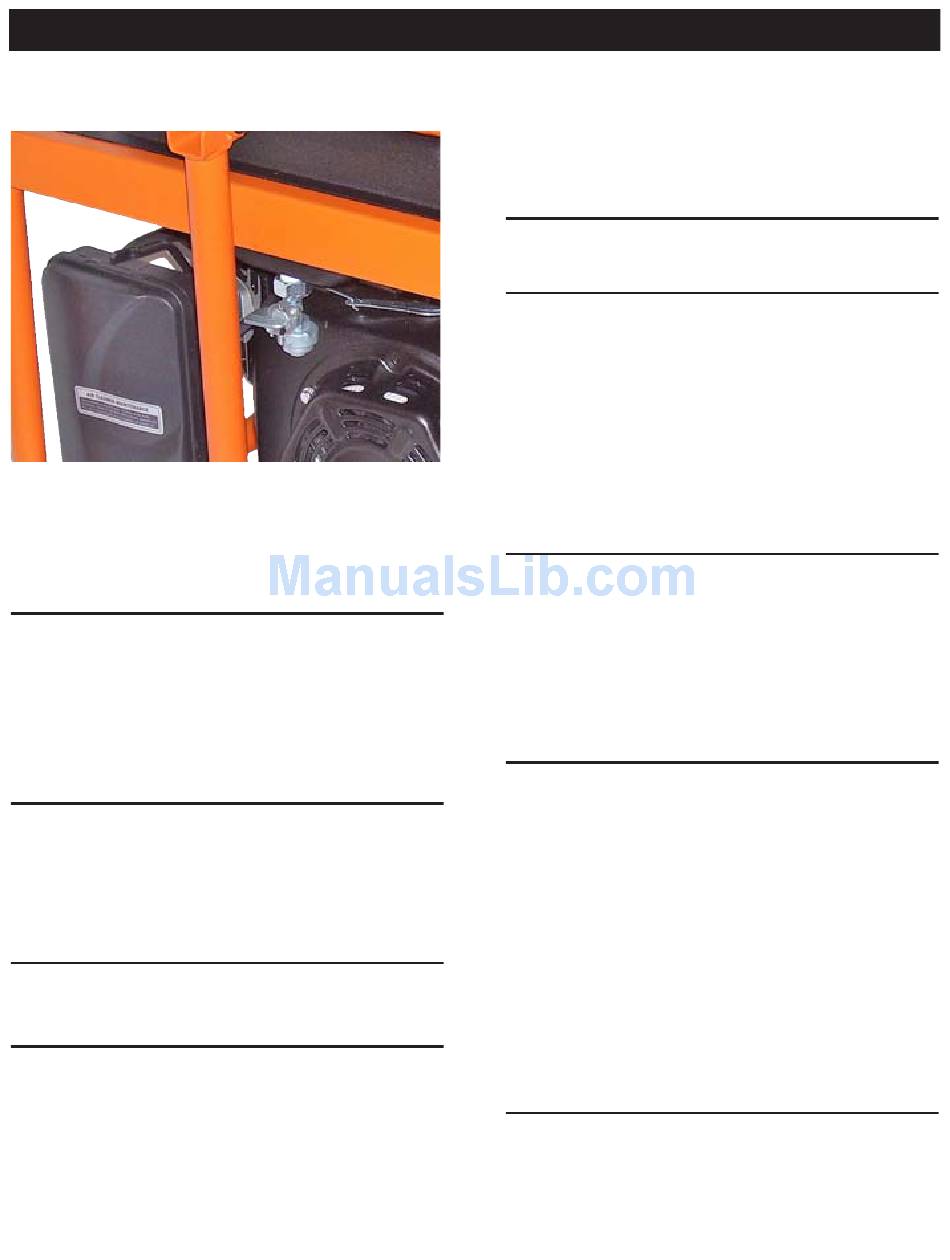

Figure 10 - Choke Position
IMPORTANT: Do not overload the generator. Also, do not overload
individual panel receptacles. These outlets are protected against
overload with push-to-reset-type circuit breakers. If amperage rating
of any circuit breaker is exceeded, that breaker opens and electrical
output to that receptacle is lost. Read "Don't Overload the Generator"
carefully.
2.8 STOPPING THE ENGINE
1. Shut off all loads, then unplug the electrical loads from generator
panel receptacles. Never start or stop the engine with electrical
devices plugged in and turned on.
2. Let engine run at no-load for several minutes to stabilize the
internal temperatures of engine and generator.
3. Move ON/OFF switch to OFF position.
4. Close fuel valve.
2.9 LOW OIL LEVEL SHUTDOWN SYSTEM
The engine is equipped with a low oil level sensor that shuts down the
engine automatically when the oil level drops below a specified level. If
the engine shuts down by itself and the fuel tank has enough gasoline,
check engine oil level.
2.9.1 SENSING LOW OIL LEVEL
If the system senses a low oil level during operation, the engine shuts
down. The engine will not run until the oil has been refilled to the
proper level.
3.1 MAINTENANCE SCHEDULE
Follow the calendar intervals. More frequent service is required when
operating in adverse conditions noted below.
Check Oil Level
Change Oil +
Check Valve Clearance
Service Air Filter
Replace Spark Plug
+ Change oil after first 20 hours of operation, then every season.
*
** Clean more often under dirty or dusty operating conditions. Replace air filter parts
*** Check valve clearance and adjust if necessary after first 50 hours of operation and
3.2 PRODUCT SPECIFICATIONS
3.2.1 GENERATOR SPECIFICATIONS
Rated. Power .................................................................................. 3.25 kW**
Surge Power ...................................................................................... 3.75 kW
Rated AC Voltage ..................................................................................... 120
Rated Current ................................................................................ 27 Amps**
Rated Frequency ............................................................ 60 Hz @ 3600 RPM
Phase ........................................................................................ Single Phase
** Maximum wattage is subject to, and limited by, such factors as fuel Btu
3.2.2 ENGINE SPECIFICATIONS
Displacement ........................................................................................208 cc
Spark Plug Type ...................... F6TC, NGK BPR4ES or Champion RN14YC
Spark Plug Gap ..................................... 0.028-0.031 inch or (0.70-0.80 mm)
Gasoline Capacity .....................................................4 U.S. gallons (15.14 L)
Oil Type .......................See Chart in "Before Starting the Generator" Section
Oil Capacity ........................................................................ 0.634 Qts. (0.6 L)
Run Time ................................................................... 12.5 Hours at 1/2 Load
Operating Temperature Range .....................0 °F (-17 °C) to 110 °F (43 °C)*
* When operating above 77 °F (25 °C) there may be a decrease in power.
3.3 GENERAL RECOMMENDATIONS
The warranty of the generator does not cover items that have been
subjected to operator abuse or negligence. To receive full value from
the warranty, the operator must maintain the generator as instructed
in this manual.
Some adjustments will need to be made periodically to properly
maintain the generator.
All adjustments in the Maintenance section of this manual should
be made at least once each season. Follow the requirements in the
"Maintenance Schedule".
Once a year replace the spark plug and replace the air filter. A
new spark plug and clean air filter assure proper fuel-air mixture
and help the engine run better and last longer.
3.3.1 GENERATOR MAINTENANCE
Generator maintenance consists of keeping the unit clean and dry.
At Each Use
Operate and store the unit in a clean dry environment where it will not
*Every Season
be exposed to excessive dust, dirt, moisture or any corrosive vapors.
***Every Season
Cooling air slots in the generator must not become clogged with snow,
**Every Season
leaves, or any other foreign material.
Every Season
Change oil every month when operating under heavy load or in high temperatures.
if they cannot be adequately cleaned.
every 100 hours thereafter.
content, ambient temperature, altitude, engine condition, etc.. Maximum
power decreases about 3.5% for each 1,000 feet above sea level; and will
also decrease about 1% for each 10 °F (6 °C) above 60 °F (16 °C) ambient
temperature.
NOTE:
Maintenance
11
