FOR M EASURAB LE SUCCESS

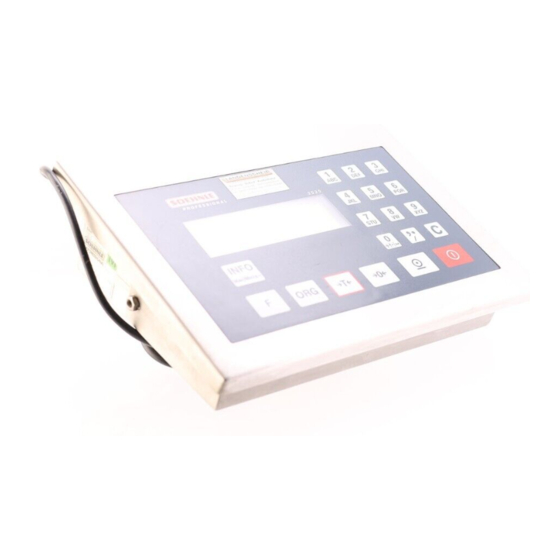

3020
Operating Manual
www.soehnle-professional.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3020 and is the answer not in the manual?

Questions and answers

Related Manuals for Soehnle 3020

Summary of Contents for Soehnle 3020

  • Page 1 FOR M EASURAB LE SUCCESS 3020 Operating Manual www.soehnle-professional.com...

  • Page 2: Table Of Contents

    English Contents 1........Introduction ....Page 3 2.

  • Page 3: Introduction

    Notes on the Operating Manual This operating manual is a short version of the Program Terminal 3020 and is intended to help you through your first steps with the scale and entry-level operations. This detailed manual is supplied on the CD so that you can obtain maximum performance from your new appliance.
  • Page 4 The appliance may only be opened by trained service technicians. Before working on the appliance, unplug the power supply. After power-on, the measured values will stabilise after a warm-up period of 30 minutes. Further information on power-on is provided in the Operating Manual 3020 on the CD. Connections Power supply...
  • Page 5 English Program mode Here, select the required weighing application program. After selecting and activating the application program, the scale is ready to operate. Function key The F function key is for calling up functions. It assumes different functions depending on how it is assigned. The current function is assigned in Setting mode.
  • Page 6 English Input and control keys The following keys are available for input and control: Numeric keys to type in numerical values Multiple programming of numeric keys to type in alphabetic characters Calls organisation data Clears last number Info key, electronic nameplate with reference data Scale change key (press in succession) Call tare memory Tare key / Cursor down / Cursor right...
  • Page 7 English Display The display shows a number of situative views. It is divided into display panes. SYMBOL BAR Additional indicator: Displays second units, weight ADDITIONAL INDICATOR values for counting, differences with setpoint, etc. Press the F key to activate as required. DISPLAY PANE Symbol bar: Displays information on the status of the activated measuring point.

  • Page 8: Basic Functions

    The basic functions are similar or identical for all application programs. Power on/off Power-on After power-on and during the run-up phase, the Soehnle Professional logo is displayed. The measuring points are briefly listed as they are detected. The scale is zeroed after the power-on routine. (This may vary with non-approved calibration).
  • Page 9 English Zeroing Press the zeroing key to correct minor deviations from the zero point, e.g. caused by soiling on the scale. Zero range approvable and non-approvable: -1% to +3% of the weighing range. If zeroing is not possible, the error message "Above zero range limit" or "Below zero range limit"...
  • Page 10 Organisation data help to assign identifiers to document weighing operations, e.g. article number, supplier, machine operator. They are available in all application programs. The Digital Indicator 3020 has 4 organisation data memories. Each memory has: • one freely definable description, e.g. "Article no."...
  • Page 11 Switching between scales Switching between several connected scales. Up to two measuring points can be mounted in the Digital Indicator 3020. Toggle between the measuring points by pressing the INFO key followed by the ORG key (in succession). The activated measuring points are switched one after the other.
  • Page 12 English Alphanumeric input Use the combined numerical/alphanumeric keypad to type in numerical and alphanumeric inputs (similar to a mobile phone keypad). Types of input box - Display boxes with no write option - Display/type-in boxes with numerical input option - Display/type-in boxes with alphanumeric input option Activating input boxes - Situation-dependent by means of function key or direct numerical input.

  • Page 13: Application Programs

    English Application programs The various application programs of the Soehnle Program Terminal 3020 offer you numerous solutions for your weighing operations. You can adapt the application programs to your specific needs in Setting mode. Please refer to the detailed manual on the CD under the heading "Setting mode".
  • Page 14 English 3.1.3 Weighing without taring Place weighing product on the scale. The weight is indicated with the message "Gross". 3.1.4 Manual taring Measure and tare with a container of unknown weight. Place the empty container on the scale. Press the Tare key. The tare value is saved.
  • Page 15 English 3.1.6 Additive tare Taring several, even different containers of known weight. See the description of the function in the CD manual. 3.1.7 Provisional tare Unknown tare values are added to the existing tare memory. See the description of the function in the CD manual.
  • Page 16 English b) Changing or overwriting a fixed tare value memory • Press the Print key and the F key simultaneously; Setting mode appears in the display. • The arrow points to "Program Settings". Confirm by pressing the Print key. • The arrow points to "General".
  • Page 17 English 3.1.10 Error message when taring Error 06: Not possible to tare Possible causes: - Scale empty - Scale in overload or underload - Manual tare input with tare value above maximum load 3.1.11 Display options with the Info key When you press the Info key, you have the following options: - Tare key: Display current tare weight 1 1 7 7...

  • Page 18: Totalising And Batching

    English Totalising and batching Totalising means that the individual items are weighed one after the other, the weight is added in the total memory and the scale is then clipped off again at the end of each weighing operation. Batching means that the weighed items remain on the scale, the weight is added in the total memory and the scale then returns to zero without clip off.

  • Page 19: Automatic Totalising

    English 3.2.3 Taring Taring functions same as for 3.1 Weighing and taring. 3.2.4 Operating the totalising functions Press the F key to transfer the weight on the weighing platform to the total memory. The item counter and the consecutive number are incremented by 1. Before requesting the next total, the scale must be clipped off at least to the clip off factor defined in Setting mode.
  • Page 20 English 3.2.8 Assigning and clearing the consecutive number Every input in the total memory is assigned a 4-digit consecutive number. The consecutive number is not reset to the factory setting when the total memory is cleared. Optionally, you can default resetting the consecutive number in Setting mode: - deactivated (no reset = factory setting) - when the Clear Total key is pressed.

  • Page 21: Counting

    English Counting Counting parts with the same weight. The single part weight (reference weight) is calculated from a known small quantity of countable parts. This then becomes the divisor to determine the piece count from the weight of an unknown quantity of countable parts. 3.3.1 Function key Function of F key: reference weight calculation...
  • Page 22 English Displaying the reference weight Press the "Info" and "F" keys in succession. Weight display during the counting operation The weight display appears at the top left of the indicator. Terminate the count operation by pressing the C key. Fixed value memory for reference weights You can save up to 400 reference weight in a failsafe memory.
  • Page 23 English Saving the new fixed value Entering a new reference value only works in Setting mode "Count/Reference weight fixed value". The memory location number is assigned by the appliance. The first figure in brackets indicates the number of free memory locations; the second figure shows the memory locations occupied by reference fixed values.

  • Page 24: Checking

    English Checking Checks whether the weighing product corresponds to a setpoint weight within a default. tolerance band. Example: If you want to check whether several weighing products This function can also be used for weighing in a default setpoint. Example: You want to fill 50 kg into a container. After placing the weighing product on the scale, the actual weight is shown in the indicator and the additional indicator shows the difference between reference and actual weight by a + or - sign.

  • Page 25: Further Information

    English 4. Further information You will find further information on the following subjects in the detailed documentation, the Program Terminal 3020 manual, on the supplied CD: - Setting mode - Error messages - Print - Barcode - etc. 2 2 5 5...
  • Page 26 English 2 2 6 6...
  • Page 27 English 2 2 7 7...
  • Page 28 FOR M EASURAB LE SUCCESS Soehnle Professional GmbH & Co. KG Wilhelm-Soehnle-Straße 2 71540 Murrhardt Telefon +49 (0) 71 92 / 93 19-220 Telefax +49 (0) 71 92 / 93 19-211 E-Mail info@soehnle-professional.de S S c c a a l l e e s s , , S S y y s s t t e e m m S S o o l l u u t t i i o o n n s s a a n n d d S S p p e e c c i i a a l l D D e e v v e e l l o o p p m m e e n n t t s s...
