System Sensor FAAST 7100X Installation And Maintenance Instructions page 3

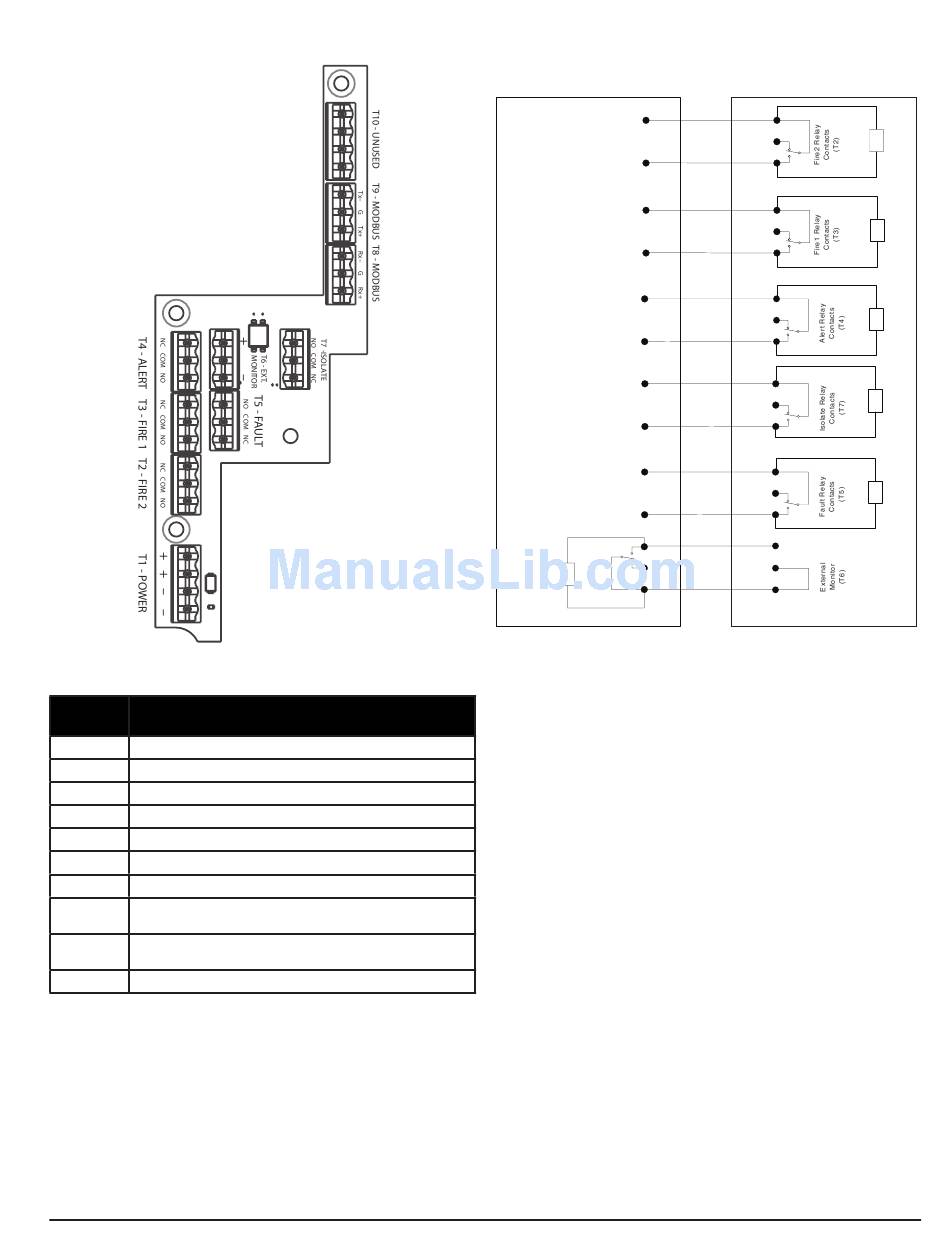

FIGURE 3. POWER AND ALARM CONNECTION BLOCK
TABLE 1. TERMINAL DESIGNATIONS
TERMINAL
BLOCK
T1
External Power – Powers Aspirating Smoke Detector
T2
Fire2 Relay – Maintains state on loss of power
T3 Fire1 Relay – Maintains state on loss of power
T4 Alert Relay – Maintains state on loss of power
T5 Fault Relay – Resets on loss of power
T6 External Monitor – Maintains state on loss of power
T7 Isolate Relay – Maintains state on loss of power
T8
RS 485 Rx
Rx and Tx can be wired in a half duplex configuration
T9
RS 485 Tx
Rx and Tx can be wired in a half duplex configuration
T10 Unused
SYSTEM WIRING
Refer to Table 1 for the field wiring terminal descriptions of the unit. Refer to
Figure 4 for a typical connection for monitoring the FAAST XS system at a Fire
Alarm Control Panel (FACP).
SS-600-012
FIGURE 4. FACP WIRING DIAGRAM
Fire Panel (FACP) typical connection
for monitoring of device
Short = Fire
Open = Fault
Short = Fire
Open = Fault
FACP
Short = Fire
Open = Fault
Supervisory
Short = Isolate
Open = Fault
Supervisory
Short = Fault
Open = Normal
Panel
Remote
47k
Reset
ASP128-00
SYSTEM POWERING
The following procedure describes how to initially power up the FAAST XS system.
1. Unplug the unit's power connector to the unit before turning on the
power.
2. Turn on the power.
3. Check the voltage at the connector. Make sure it is within the required
voltage range.
4. If the voltage is within the proper range, reconnect the power connec-
tor to the unit.
5. Connect a computer, with PipeIQ installed, to the unit using either the
USB connection, or the Ethernet port located inside the wiring cabinet.
(See the 'Connecting to FAAST XS' for detailed connection instructions.)
6. Use the PipeIQ software to set up the unit configuration required for
the particular application.
7. The PC may now be disconnected unless a permanent networked con-
nection is desired.
8. Verify the system fan starts up and air begins to flow out of the ex-
haust port. The user interface will provide the device status.
9. The device will establish an airflow baseline during the first five min-
utes of operation. After five minutes, the airflow level display will
provide the true measured airflow status. The device will give visual
indication of the baselining period on the LCD screen.
