System Sensor FAAST 7100X Installation And Maintenance Instructions page 2

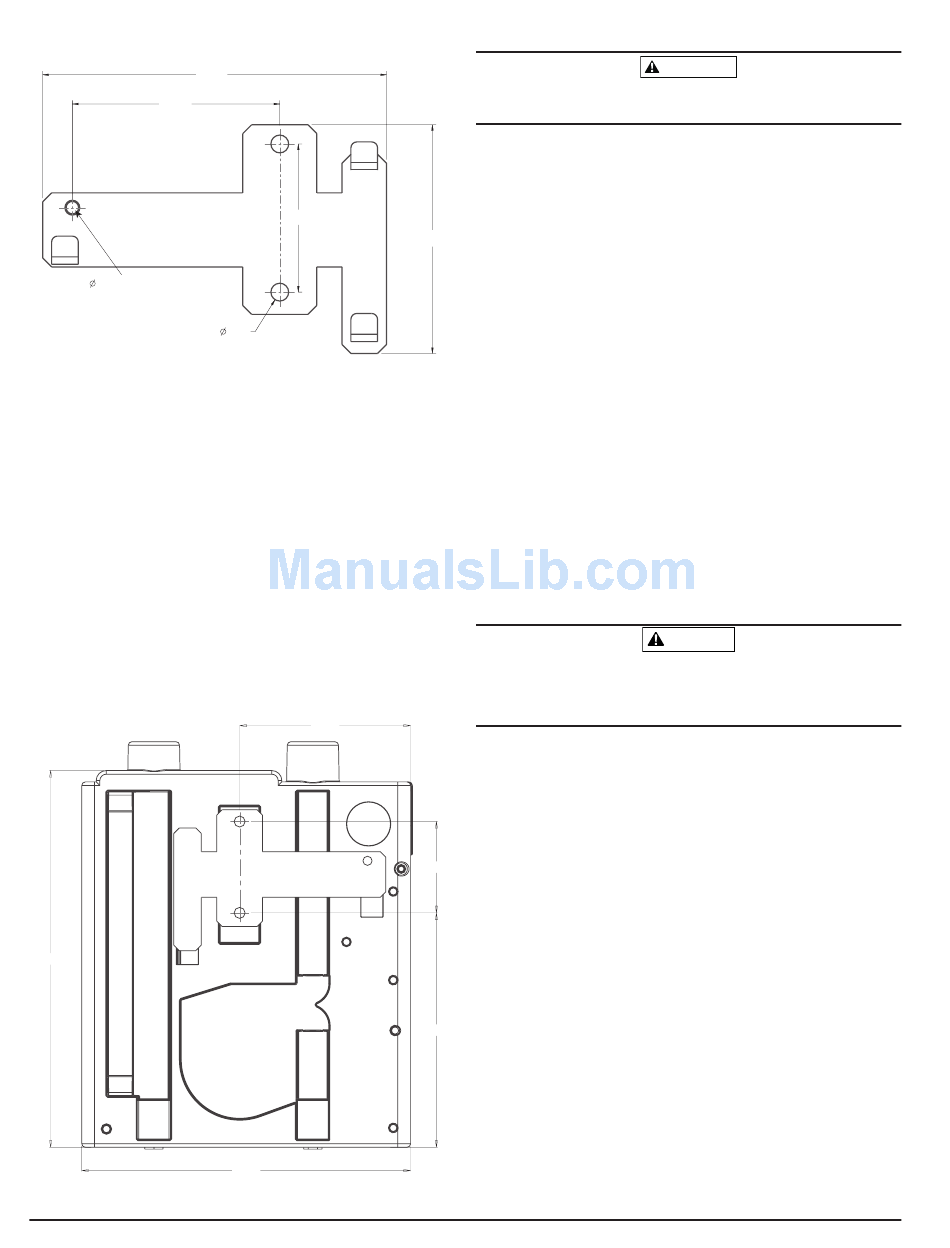

FIGURE 1: WALL MOUNTING BRACKET
5.800
3.500
.300, 1/4 in.,
20 TPI Mounting Stud
MOUNTING THE DETECTOR TO THE BRACKET
Once the mounting bracket is attached, the unit is ready to be secured onto
the bracket. Perform the following procedure to mount the unit.
1. Before installing the unit onto the bracket, remove the appropriate
conduit caps from the top or left side of the unit to match the orienta-
tion of the wiring.
2. Align the unit with the three mounting clips and the mounting stud
on the left side. Locate the conduit openings around the wiring access
door.
3. Push the unit down onto the mounting clips and secure it with the
supplied washer and nut on the mounting stud protruding through the
mounting slot shown in Figure 1.
FIGURE 2: MOUNTING SLOTS FOR MOUNTING STUDS
10.310
SS-600-012
2.500
.300
ASP127-00
4.680
9.000
ASP126-00
CONNECTING THE AIR SAMPLING PIPE
Detailed pipe network information and best practices can be found in the
Pipe Installation Guide, available for download at systemsensor.com/faast
The input and output ports are designed to accept nominal one inch pipe
(25mm). The input and output ports are tapered to provide fast, easy, pushfit
connection of the sampling pipe to the unit. Perform the following procedure
to connect the air sampling pipe to the unit.
1. Square off and de-burr the end of the sampling pipe. Ensure that the
pipe is free from any particles that might interfere with the pipe con-
3.860
nection.
2. Remove the input plug from the input port being used (either the top
or bottom of the unit).
3. Inset the air sampling pipe into the port, ensuring a snug fit. DO NOT
glue these pipes.
EXHAUST PIPE
The device should always be exhausted into the space that it is monitoring.
There are some circumstances where it may be necessary to connect a pipe
to the exhaust port to divert the exhaust away from the location of the unit.
Adding as little as 2ft of exhaust pipe also acts as a muffler for the fan – ensur-
ing quieter operation. Perform the following procedure to connect the exhaust
pipe to the unit.
1. Square off and de-burr the end of the exhaust pipe. Ensure that the
pipe is free from any particles that might interfere with the pipe con-
nection.
2. Remove the plug from the exhaust port being used (either the top or
bottom of the unit).
3. Inset the air exhaust pipe into the port, ensuring a snug fit. DO NOT
glue these pipes.
WIRING
Before working on the FAAST XS system, notify all required authorities that
the system will be temporarily out of service. Make sure all power is removed
from the system before opening the unit. All wiring must be in accordance
with local codes.
POWER CABLES
Use the power ratings of the unit and any other connected products to deter-
mine the required wire sizes for each connection.
CONDUIT USAGE
If electrical conduit has been used for system wiring, terminate the conduits
at the cable entry ports on the top of the unit, using the appropriate conduit
connectors.
2.500
1. Run all wiring, both power and alarm, through the conduit and into
the left side of the unit enclosure.
2. Attach the appropriate wires to the supplied Euro connectors. Follow
appropriate local codes and electrical standards for all cabling.
3. Plug the appropriate connector into the mating connector on the unit.
Refer to Table 1.
6.415
2
ATTENTION
WARNING
I56-6006-001
