1.2 Rear Panel Instructions

Name
AC110/230
USB
LAN
HDMI
VGA
E-SATA
VIDEO IN
AUDIO OUT
AUDIO IN
RS485
ALARM IN
ALARM OUT
MIC IN

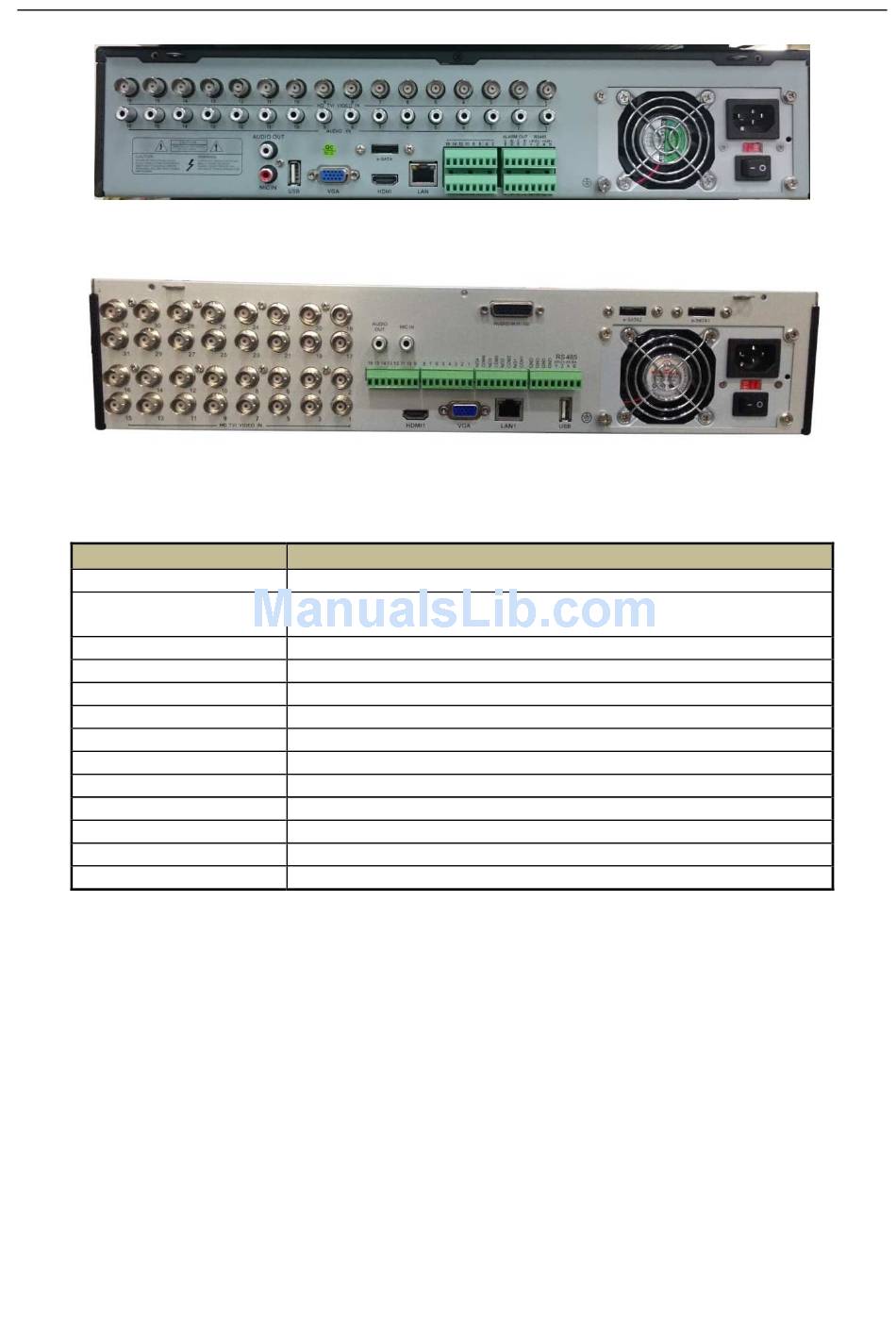

Rear Panel for 16 CH
Rear Panel for 32 CH
Power Input.
To connect external USB devices like USB mouse or USB
storage device.
Network Port.
HDMI Port. Connect to high-definition display device.
VGA Port. Connect to monitor.
External HDD for backup
16 CH Video Inputs.(support AHD/TVI/Analogue)
Audio output, connect to the sound box.
16 CH Audio Input.
Connect to keyboard or speed dome; A is TX +; B is TX-.
16 channel alarm inputs
4 channel alarm output
2 Way Audio Micphone
