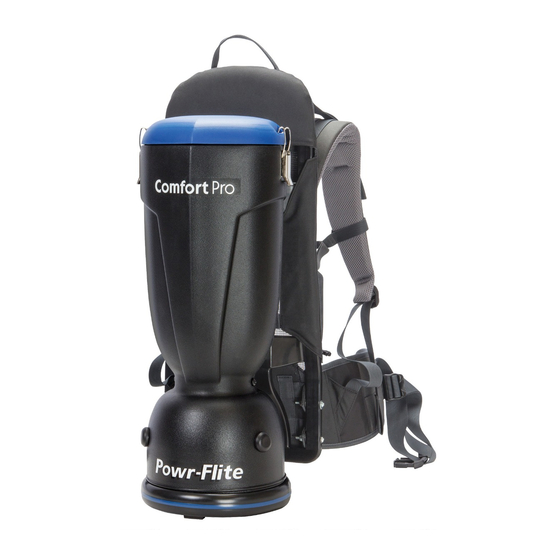

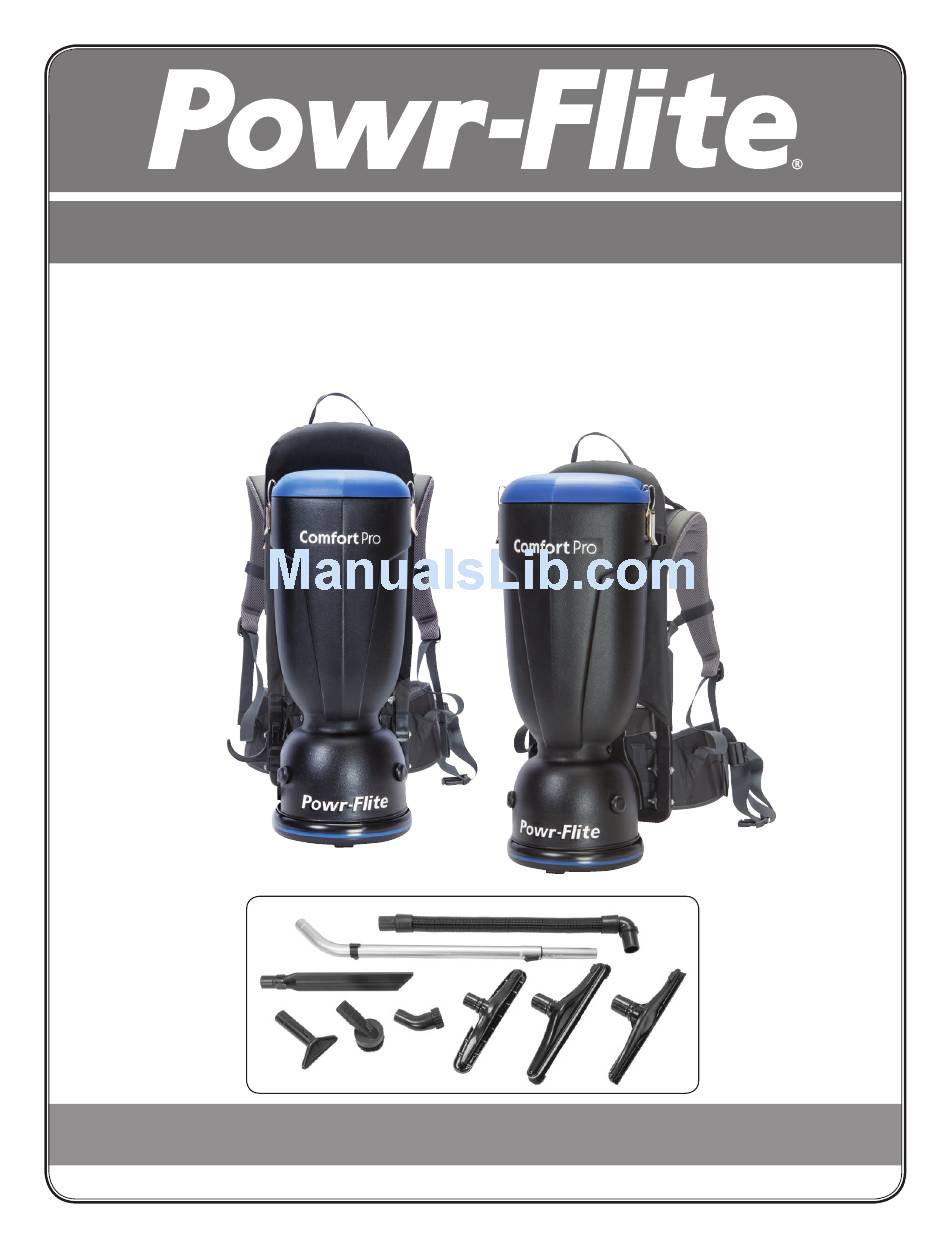

- Page 1 OPERATOR’S MANUAL & PARTS LIST Comfort Pro Backpack Vacuum BP6 - BP10 Series 6 quart model 10 quart model Hands free tool kit WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. © Tacony, Inc., All rights reserved X9712 1/2016 Save These Instructions...
- Page 2 NOTES Model Number: __________________________________________________________________ Serial Number: ___________________________________________________________________ Date of Purchase: ________________________________________________________________ Retain this manual as a permanent record of your purchase.
-
Page 3: Table Of Contents
Check the carton for shipping damage. Carefully unpack and Introduction ...........3 inspect your new Powr-Flite vacuum for shipping damage. Each unit is tested and thoroughly inspected prior to shipping. Safety Instructions ........4 If damage is discovered, immediately notify the transportation company that delivered your machine and request an inspec- Storage ............4... -
Page 4: Safety Instructions
Read all instructions before using. Save These Instructions. WARNING! Following the cleaning instructions will prolong the life of your Powr-Flite vacuum. When using an electrical appliance, basic precautions should always be followed. Use only as instructed in this manual. Use only the recommended attachments and replacement parts. - Page 5 25. Ne pas tenter de réparer l’aspirateur vous-même. Toute intervention réalisée par une autre personne que les techniciens des centres technique agréé entrainera l’annulation de la garantie. 26. Stocker l’aspirateur a l’interieur dans une piece fraiche et séche. tockage Stocker l’aspirateur a l’interieur dans une piece fraiche et séche. Powr-Flite.com...
-
Page 6: Grounding Instructions
Cutting off the ground wire or using a cord that is not equipped with a ground plug will void the warranty on the unit. Powr-Flite will accept NO liability associated with the unit. Improper connection of the equipment-grounding conductor can result in a risk of WARNING! electric shock. -
Page 7: Operating Instructions
PeratIng InStructIonS IMPORTANT! PERFORM PROPER INSTALLATION OF HEPA BAGS AND CORD IN COMFORT PRO BACKPACK VACUUMS. Please read the following instructions carefully. They will help to get the best performance from this professional commer- cial vacuum cleaner and to maintain it in optimum condition. Always make sure the main power of the vacuum is off and the unit is not plugged in when doing any maintenance on the vacuum. - Page 8 Always unplug machine before cleaning, or making any WARNING! adjustments or repairs. The backpack vacuum has four levels of filtration: the paper vacuum bag, a micro cloth filter, a pre-motor filter and an exhaust filter. These bags and filters capture fine dust particles and protect the motor from dirt.
- Page 9 Wearing the Backpack Vacuum The backpack is designed to balance the weight of the vacuum on the hips, not the shoulders. 1. Adjust the Vari-Quick height adjuster to your back length. 2. Loosen all of the straps and place the vacuum on your back. Stabilizer Straps Shoulder Straps VariQuick Height Adjuster...
- Page 10 Warm air will be pulled into machine and circulate cooler air through mesh on Deuter harness. Active Cooling can be turned off by lowering silver metal bar. (Fig. 6) Active Cooling can stay open all the time. OPEN FIG. 5 CLOSED FIG. 6 Powr-Flite.com...
-
Page 11: Maintenance
After the motor has cooled to a safe operating temperature, locate the thermal reset switch on the bottom of the unit, under the post motor filter and push it back in. There will be a slight audible click. Now the motor will restart. ©Powr-Flite, All Rights Reserved... -
Page 12: Machine Specifications
PecIfIcatIonS 6 quart model 10 quart model Specifications and parts are subject to change without notice. Please refer to www.Powr-Flite.com for the latest schematic drawing and parts list. PRODUCT SPECIFICATIONS MODEL COMFORT PRO 6 COMFORT PRO 10 COMFORT PRO 6 PREMIUM... - Page 13 Standard Tool Kit J1006 4′ Rigid Hose Fits: BP6S - BP10S W/90° Bend & Cuff CT171 2 Bend Wand CT176 17″ Crevice Tool W/Clip CT184 Install the floor tool to the end of the 3″ Dusting Tool wand. Align the brass ring with the W/Clip B352-PF10 groove on the floor tool to ensure a...
-
Page 14: Schematic And Parts List
oolS cheMatIcS and artS... - Page 15 STANDARD TOOL KIT - FITS BP6S - BP10S ITEM DESCRIPTION PART NO. CARPET TOOL W/CLIP B352-PF10 HARD FLOOR TOOL W/CLIP C352-PF20 DOUBLE BEND WAND CT171 17" CREVICE TOOL W/CLIP CT176 3" DUSTING TOOL W/CLIP CT184 5" UPHOLSTERY TOOL W/CLIP CT188 POWR-GLIDE CARPET TOOL W/CLIP CT194 4' CRUSH PROOF HOSE W/90°...
- Page 16 – bP6S - bP10S cheMatIc...
- Page 17 6 QUART CLOTH BAG X9679 MOTOR RESET LABEL X9755 10 QUART SMS BAG X9692 MOUNTING RIVOT X8946 #6 FLAT WASHER ZP 1575 POWR-FLITE LABEL X9687 8-18 3/4 LONG HI LO SCREW X9676 CRI GOLD LABEL X9742 RIVET X9758 COMFORT PRO LABEL X9729...
- Page 18 – bP6P - bP10P cheMatIc...
- Page 19 6 QUART CLOTH BAG X9679 MOTOR RESET LABEL X9755 10 QUART SMS BAG X9692 MOUNTING RIVOT X8946 #6 FLAT WASHER ZP 1575 POWR-FLITE LABEL X9687 8-18 3/4 LONG HI LO SCREW X9676 CRI GOLD LABEL X9742 RIVET X9758 COMFORT PRO LABEL X9729...
- Page 20 IMIted arranty Powr-Flite will repair or exchange parts for your vacuum in the event of a This warranty covers normal use and does not cover damage which occurs in manufacturing defect as follows: shipment or failure resulting from alteration, accident, misuse, abuse, neglect, or improper maintenance.
