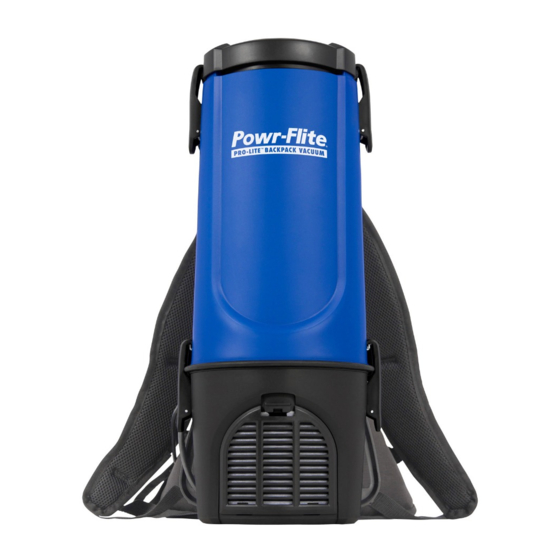

- Page 1 OPERATOR’S MANUAL & PARTS LIST Backpack Vacuum BP4S-1 Series WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. © Tacony, Inc., All rights reserved BP4S-1 7/2016 Save These Instructions...
-
Page 2: Customer Service
Congratulations on your purchase of the BP4S-1 Powr-Flite Backpack. We know you will be happy with the performance and features that we selected for you. In the event that you have questions or concerns, do not hesitate to contact us at:... -
Page 3: Common Replacement Parts
Check the carton for shipping damage. Carefully unpack and Introduction ...........3 inspect your new Powr-Flite vacuum for shipping damage. Each unit is tested and thoroughly inspected prior to shipping. Safety Instructions ........4 If damage is discovered, immediately notify the transportation company that delivered your machine and request an inspec- Grounding Instructions .........5... -
Page 4: Important Safety Instructions
Read all instructions before using. Save These Instructions. WARNING! Following the cleaning instructions will prolong the life of your Powr-Flite vacuum. When using an electrical appliance, basic precautions should always be followed. Use only as instructed in this manual. Use only the recommended attachments and replacement parts. -
Page 5: Grounding Instructions
Cutting off the ground wire or using a cord that is not equipped with a ground plug will void the warranty on the unit. Powr-Flite will accept NO liability associated with the unit. Improper connection of the equipment-grounding conductor can result in a risk of WARNING! electric shock. -
Page 6: Perating Instructions
8. Store the power cord on the cord hook located on the harness frame after each use (figure 8). 9. Affix the Switch box to the harness with the available straps. (figure 9). Always use the P-clamp. There is a WARNING! risk of electrical shock/damage to the backpack vacuum if P-clamp is not used. (Fig. 7) Powr-Flite.com... - Page 7 PeratIng InStructIonS Always unplug machine before cleaning, or making WARNING! any adjustments or repairs. The backpack vacuum has four levels of filtration: The paper bag, a micro cloth bag, a pre-motor filter and an exhaust filter. These bags and filters are designed to capture fine particles and protect the motor from dirt. It is important to replace the paper bag when it is no more than ½ full and to clean the filters on a regular schedule. Replace filters every 6 months or as you see performance decline. Paper Vacuum Bag 1. Remove paper bag. Insert a new paper bag into the micro cloth bag, making sure the cardboard disk is centered on the flexible sealing ring (figure 1). 2. Replace the lid. Fasten the latches and replace hose (figure 2 & 3). Micro cloth bag After each use, the micro cloth bag should be inspected.
-
Page 8: Maintenance
The vacuum motor will stop before it can get too hot. If this occurs, empty and thoroughly clean the vacuum bag and filters, or free any blockage and ensure that adequate airflow is restored. If the motor shuts down, turn off power switch, unplug the backpack and allow to cool. When you plug it in, after cooling, the motor will operate when the power switch is enabled. Powr-Flite.com... -
Page 9: Specifications
PecIfIcatIonS PRODUCT SPECIFICATIONS MODEL BP4S-1 ACCESSORY TOOLS STANDARD BODY HIGH IMPACT POLYPROPYLENE DIMENSIONS (L x W x H) · (in./ cm) 9.5" x 9.0" x 22.5" (24cm x 23cm x 57cm) BACKPACK WEIGHT (LBS / KG) 10.0 Lbs (4.5 Kg) CORD TYPE I LIENGTH (Feet/ Meters) 16/3 SJT, 50 ft (15.2m) CAPACITY (Quarts / Liters) - Page 10 oolS cheMatIcS and artS PRODUCT SPECIFICATIONS ITEM DESCRIPTION PART NO. HARNESS AND FRAME ASSEMBLY X1492 TOP COVER ASSEMBLY X1493 PAPER BAG (10PK) X1486 MICRO CLOTH BAG X1487 LOWER MOUNTING BRACKET ASSEMBLY X1494 BUCKLE ASSEMBLY X1495 FILTER COVER X1496 PRE-MOTOR FILTER AND EXHAUST FILTER X1488 MOTOR AND SWITCH ASSEMBLY MODULE X1497...
-
Page 11: Wiring Diagram
90 DEGREE SWIVEL CUFF X1490 HARD FLOOR TOOL C352-4400 POWER-GLIDE CARPET TOOL CT190 4' STRETCH HOSE W/90 DEGREE CUFF X1491 Additional accessory tools are also available for purchase on the Powr-Flite Website: www.powr-flite.com IrIng IagraM XOUT BTA12 5.1V 470uF 470k 1N4007 0.22uF... - Page 12 IMIted arranty Powr-Flite will repair or exchange parts for your vacuum in the event of a This warranty covers normal use and does not cover damage which occurs in manufacturing defect as follows: shipment or failure resulting from alteration, accident, misuse, abuse, neglect, or improper maintenance.
