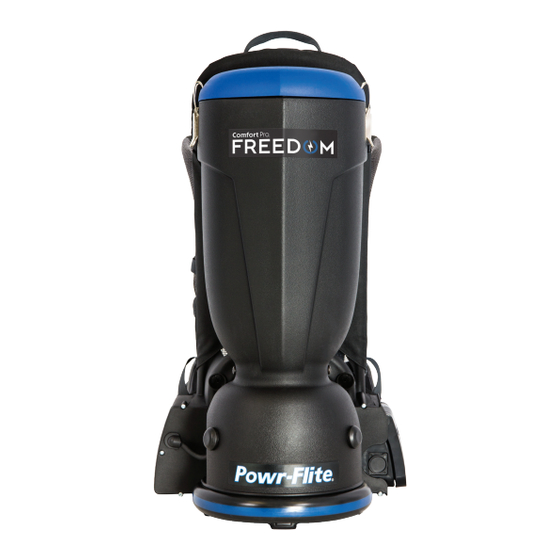

- Page 1 OPERATOR’S MANUAL & PARTS LIST Comfort Pro FREEDOM Backpack Vacuum CPF6 Series WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. © Tacony, Inc., All rights reserved CPF-MAN 4/2016 Save These Instructions...
- Page 2 NOTES Model Number: __________________________________________________________________ Serial Number: ___________________________________________________________________ Date of Purchase: ________________________________________________________________ Retain this manual as a permanent record of your purchase.
-
Page 3: Protect The Environment
Check the carton for shipping damage. Carefully unpack and Introduction ...........3 inspect your new Powr-Flite vacuum for shipping damage. Each unit is tested and thoroughly inspected prior to shipping. Safety Instructions ........4 If damage is discovered, immediately notify the transportation company that delivered your machine and request an Storage ............4... -
Page 4: Important Safety Instructions
Read all instructions before using. Save these instructions. WARNING! Following the cleaning instructions will prolong the life of your Powr-Flite vacuum. When using an electrical appliance, basic precautions should always be followed. Use only as instructed in this manual. Use only the recommended attachments and replacement parts. -
Page 5: Battery And Charging System
To reduce the risk of electric shock, fire, battery explosion, or injury, use appliances only with specifically designed battery packs. 1. Use only Powr-Flite charger X1194 and Powr-Flite battery pack X1200. Use of any other battery packs may create a risk of injury and fire. -
Page 6: C Harger G Rounding I Nstructions
Cutting off the ground wire or using a cord that is not equipped with a ground plug will void the warranty on the unit, and Powr-Flite will accept NO liability associated with the unit. Improper connection of the equipment-grounding conductor can result in a risk of WARNING! electric shock. -
Page 7: Perating Instructions
PeratIng InStructIonS IMPORTANT! PERFORM PROPER INSTALLATION OF HEPA BAGS AND CORD IN COMFORT PRO BACKPACK VACUUMS. Please read the following instructions carefully. They will help to get the best performance from this professional commer- cial vacuum cleaner and to maintain it in optimum condition. Always make sure the main power of the vacuum is off and the unit is not plugged in when doing any maintenance on the vacuum. - Page 8 Always unplug machine before cleaning, or making any WARNING! adjustments or repairs. The backpack vacuum has four levels of filtration: the paper vacuum bag, a micro cloth filter, a pre-motor filter and an exhaust filter. These bags and filters capture fine dust particles and protect the motor from dirt. It is important to replace the paper bag when it is no more than ½ full and to clean the filters on a regular schedule and replace as necessary. Paper Vacuum Bag 1. Remove paper bag. Insert a new paper bag into the cloth bag, making sure the cardboard disk is centered on the flexible sealing ring. When you replace the lid, the short nozzle in the center of the lid will be closed over the central hole of the cardboard disk of the paper vacuum bag providing a seal.
- Page 9 Wearing the Backpack Vacuum The backpack is designed to balance the weight of the vacuum on the hips, not the shoulders. 1. Adjust the VariQuick height adjuster to your back length. 2. Loosen all of the straps and place the vacuum on your back. Stabilizer Straps Shoulder Straps VariQuick Height Adjuster...
-
Page 10: Troubleshooting
The vacuum motor will stop before it can get too hot. If this happens, empty and thoroughly clean the vacuum bag and filters, or free any block- age and ensure that adequate airflow is restored. After the motor cools, you will be able to restart the machine – this may take up to 20 minutes. Powr-Flite.com... -
Page 11: Specifications
PecIfIcatIonS Specifications and parts are subject to change without notice. Please refer to www.Powr-Flite.com for the latest schematic drawing and parts list. PRODUCT SPECIFICATIONS MODEL COMFORT PRO FREEDOM 6 COMFORT PRO FREEDOM 6 PREMIUM ITEM# CPF6S CPF6P TOOL KIT* Standard... - Page 12 Standard Tool Kit J1006 4′ Rigid Hose Fits: CPF6S W/90° Bend & Cuff CT171 2 Bend Wand CT176 17″ Crevice Tool W/Clip CT184 3″ Dusting Tool W/Clip B352-PF10 Install the floor tool to the end of the Carpet Tool wand. Align the brass ring with the W/Clip groove on the floor tool to ensure a CT188 secure fit.
- Page 13 oolS chematIcS and artS STANDARD TOOL KIT - FITS CPF6S PREMIUM TOOL KIT - FITS CPF6P ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. CARPET TOOL W/CLIP B352-PF10 CARPET TOOL W/CLIP B352-PF10 HARD FLOOR TOOL W/CLIP C352-PF20 HARD FLOOR TOOL W/CLIP C352-PF20 DOUBLE BEND WAND CT171...
- Page 14 chematIc X9666 X9679 X9739 X9683 X9668 X9691 X9698 X9752 01575 A352-3300 X9753 X1195 X1207 02568 X9697 X9758 X1152 X1263 X8248 X1197 X9664 X9754 X9713 X9733 X9734 X1004 X9688 X1206 X9681 X1259 X9687 X1395 X9079 X1200 X1208 X1198 X1205 X9671 X9669 X9690 X9717 X9667...
- Page 15 X9679 6 QUART CLOTH BAG X9681 RUBBER MOTOR MOUNT X9682 EXHAUST FILTER X9683 INLET FILTER X9685 HOUSING BUMPER X9687 POWR-FLITE LABEL X9688 MOTOR MOUNTING BOLT X9690 8-18 HI-LO SCREW X9691 1/4-20 CLIP NUT X9697 WARNING LABEL X9698 HARNESS LABEL X9706...
- Page 16 ImIted arranty Powr-Flite will repair or exchange parts for your vacuum in the event of a This warranty covers normal use and does not cover damage which occurs in manufacturing defect as follows: shipment or failure resulting from alteration, accident, misuse, abuse, neglect, or improper maintenance.
