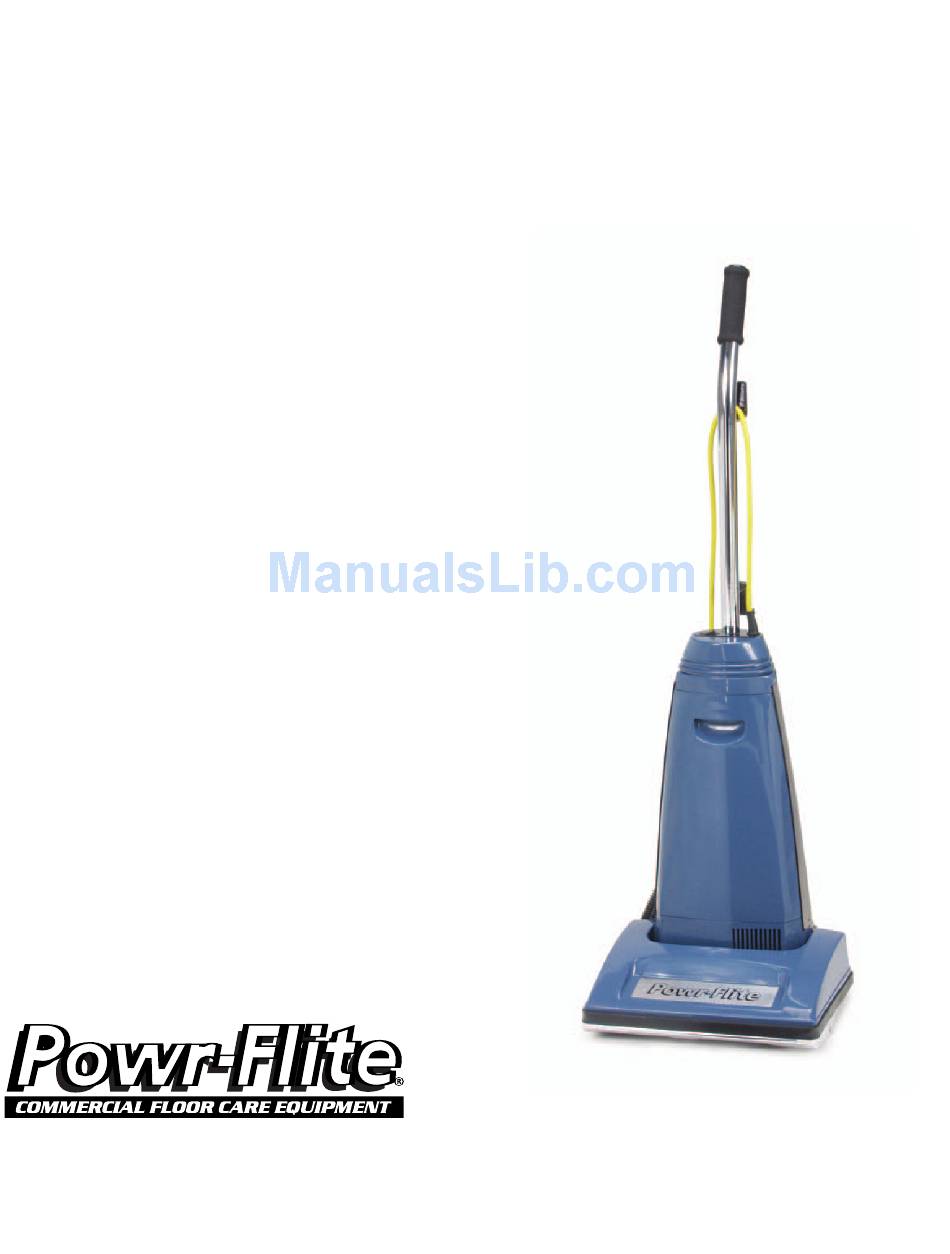

Operating
Instr uctions
Model PF90
Before operating the unit, please
read these instructions completely.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PF90 and is the answer not in the manual?

Questions and answers

Related Manuals for Powr-Flite PF90

Summary of Contents for Powr-Flite PF90

  • Page 1 Operating Instr uctions Model PF90 Before operating the unit, please read these instructions completely.

  • Page 2: Table Of Contents

    Save These Instructions Before you plug in your Powr-Flite Vacuum Cleaner, make sure that the voltage indicated on the rating plate locat- ed underneath the vacuum cleaner is the same as your local supply.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. When using an electrical appliance, basic precautions should always be followed, including the following: SAVE THESE INSTRUCTIONS. WARNING To reduce the risk of fire, electric shock, or injury: 1. Do not leave appliance unattended when plugged in. Unplug from outlet when not in use and before servicing. 2.

  • Page 4: Grounding Instructions

    Grounding Instructions This appliance must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug.

  • Page 5: Parts Identification

    Blow molded hose Foot pedal Model release specification Furniture plate guard Thermal reset Thermal reset Self-adjusting nozzle button instructions Replacement Bags/Filters • Genuine Powr-Flite Vacuum Filter Bags • Genuine Powr-Flite Electrostatic Filter Part # 460PB Part # F901 3 pk. 1 pk.

  • Page 6: How To Assemble And Operate The Vacuums

    How to Assemble and Operate the Vacuum How to Attach the Handle to the Vacuum Cleaner The cleaner and the handle are packed separately. 1. After first removing the handle screw, insert handle into the hole on top of the vacuum cleaner. Make sure that the switch on the handle is positioned to the front of the vacuum cleaner (Fig.

  • Page 7: Handle Adjustments

    Fig. 3 Fig. 2 Electrostatic Filter Your Powr-Flite vacuum cleaner is equipped with an electrostatic filter (CPU-1 model only) to capture fine dust particles and protect the motor from dirt. Accumulated dirt in the dust compartment will be collected on this filter and may restrict motor performance. It is impor- tant to change the electrostatic filter regularly —...

  • Page 8: Automatic Self-Adjusting Rug Nozzle

    Automatic Self-Adjusting Rug Nozzle Your Powr-Flite upright vacuum cleaner is designed with an Automatic Self-Adjusting Rug Nozzle. No manual adjustments are required. The height of the rug nozzle is instantly and automatically adjusted to carpet pile height. This self-adjusting feature allows the rug nozzle to float evenly over all carpet pile surfaces.

  • Page 9: How To Replace The Headlight Bulb, Drive Belt, & Brush

    How to Replace the Headlight Bulb and the Drive Belt CAUTION: First, unplug the vacuum cleaner. How to Remove the Bottom Plate. 1. Place vacuum cleaner in the low position by using the handle release pedal. Then, turn the vacuum cleaner over, exposing the underside. 2.

  • Page 10: Replacing The Agitator

    Replacing the Agitator Assembly Brushes should be replaced when they are worn or when the bristle does not touch a card that is held across the nozzle. You should replace all four brushes at the same time in order to maintain good cleaning efficiency. Remove E-clip first from agitator shaft by using screw driver.

  • Page 11: Thermal Fuse Protection

    • Change filter bags and filters as recommended to maintain optimum cleaning efficiency. • Always use genuine Powr-Flite filter bags and filters, as use of other products may result in poor cleaning or fil- tration performance. Powr-Flite filtration products are designed for maximum performance.
  • Page 12 ASSEMBLY PF90...
  • Page 13 ref# order description each ref# order description each 18.146 handle assembly complete 19.50 AE1243713 washer handle end cap AE0213713 washer B431-2014 foam handle grip 3.07 AC0553006 switch activator spring AE0663714 switch knob AG0883000 wire connector A732-0700 set screw 2027129 zip tie AK0723582 switch knob guard AG0863000...
  • Page 14 Powr-Flite Limited Warranty Powr-Flite will repair or exchange parts for your Light This warranty covers normal use and does not cover dam- Weight vacuum cleaner in the event of a manufacturing age which occurs in shipment or failure resulting from alter-...
