Summary of Contents for Powr-Flite PF58

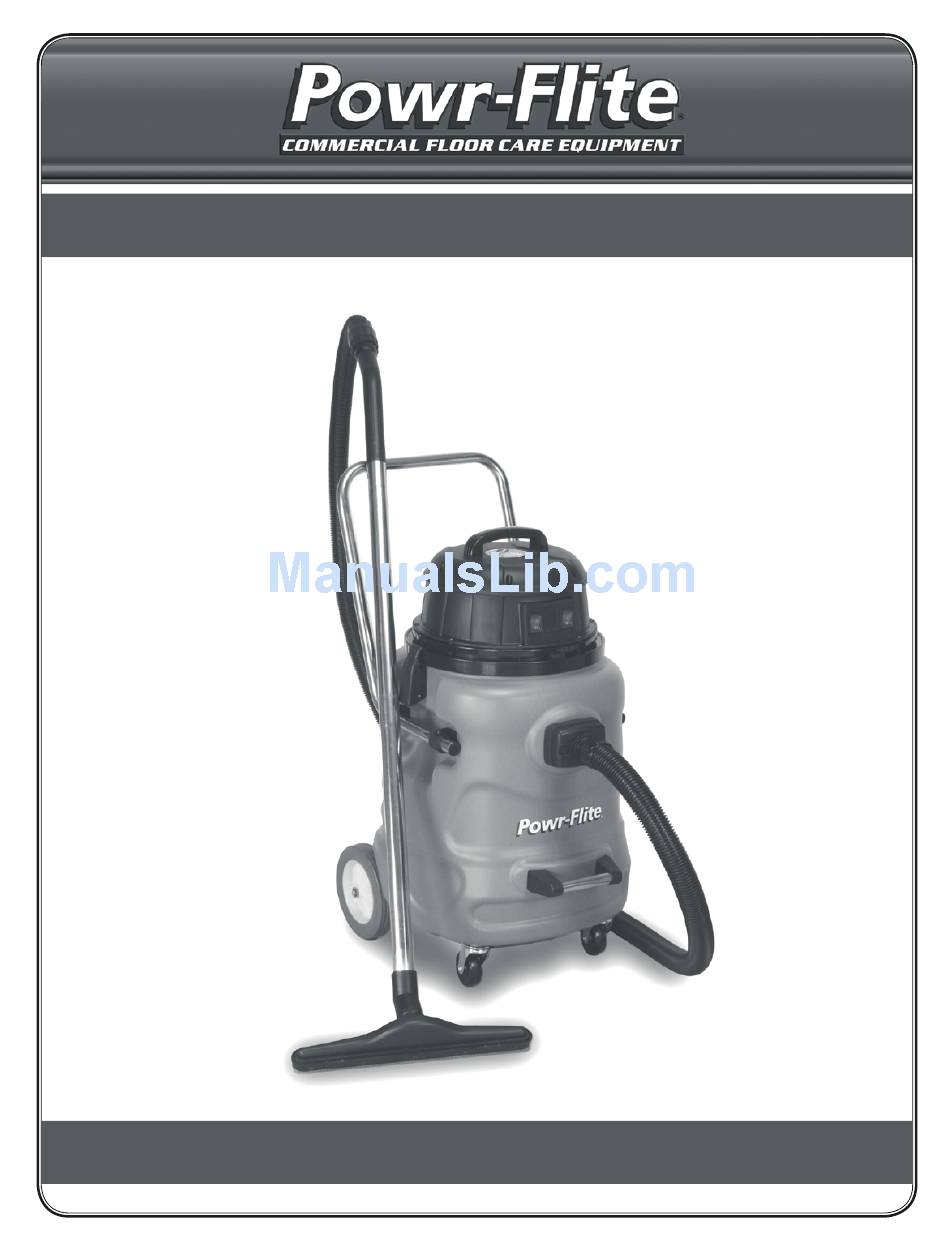

- Page 1 OPERATOR’S MANUAL PF58 Wet/Dry Vacuum WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. © Tacony, Inc., All rights reserved PF58-Man 4/2009 Equipment must be operated, serviced and maintained in accordance with the manufacturer’s instructions...
-
Page 2: Important Safety Advice
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE *When using a wet/dry vacuum, basic precautions should be followed. *Read all instructions before using your vacuum. DRY OPERATION OF VACUUM IMPORTANT SAFETY ADVICE The wet/dry vacuums are equipped with bypass motors. Install the cloth When using electrical equipment basic safety precautions should be fol- filter, place the motor head on the canister and snap down the hold-down lowed including the following:... -
Page 3: Maintenance And Servicing
3. Replace the filter and top housing and fasten the latches. NOTE: This cleaner is designed with a powerful suction. Do not be alarmed if the motor noise increases when performing tougher cleaning work. Model PF58 shown with optional front mounted squeegee. – 3 –... - Page 4 Model PF58 Parts ref # item # description ref # item # description WD20A HANDLE WD68 GASKET WD34 STRAIN RELIEF WD70 SPONGE WD246 POWER CORD WD69 SPONGE WD247 EXTENSION CORD WD85 BLOCKER WD65 TOP COVER WD166 PLATE B WD15W MOTOR CONNECTION WIRE SET...
- Page 5 Model PF58 Parts ref # item # description ref # item # description WD219 TANK WD226 HANDLE WD220 WD227 AXEL WD221 WD228 BUSHING WD132 HANDLE WD123M REAR WHEEL WD133 COVER WD229 WASHER WD222 WASHER WD230 C-RING WD223 HOLDER WD167 FRAME...
- Page 6 Model PF58 Parts FM100H EXPLODED VIEW ref # item # description ref # item # description WD168 U-SHAFT WD184 ADJUSTER LEVER WD169 BUTTON WD186 ADJUSTER LEVER KNOB WD170 FIXED NUT WD191 GASKET WD171 ADJUSTED WHEEL WD24 CONNECTOR WD172 BUTTON WD25...
- Page 7 Model PF58 Parts - Optional Squeegee Assembly Installing Instructions - FM100H FRONT MOUNT SQUEEGEE INSTRUCTIONS 1. Remove vacuum head and filters from the vacuum. 2. Install axle mounting plate to bottom of unit. See fig 1 3. Attach handle bracket to squeegee bracket.
-
Page 8: Troubleshooting Guide
1 year from date of pur- chase on workmanship, motor, and parts. In case you, as our customer, meet any trouble with your machine, contact a Powr-Flite representative, who will be happy to be of service to you and will take care of any warranty issues.
