Sub-Zero CBBI-36R Design Manual page 11

Planning Information
Plumbing Requirements.
with an automatic ice maker, the water supply line should
be located within the shaded area shown in the illustra-
tion. The water supply line should be connected to the
house supply with an easily accessible shut-off valve
between the supply and the unit. Do not use self-piercing
valves. A saddle valve kit (4200880) is available from your
Sub-Zero dealer. The water line must not interfere with
installation of the anti-tip brackets.
IMPORTANT NOTE: A reverse osmosis system can be
used provided there is constant water pressure of 30 psi
(2.1 bar) to 100 psi (6.9 bar) supplied to the unit at all
times.
Plumbing Requirements
Water Supply Line
Water Pressure
Excess Water Line for Connection
For all built-in models
6.35 OD copper line
mm
2.1– 6.9 bar
914
mm
13
mm
SHUT-OFF
76
mm

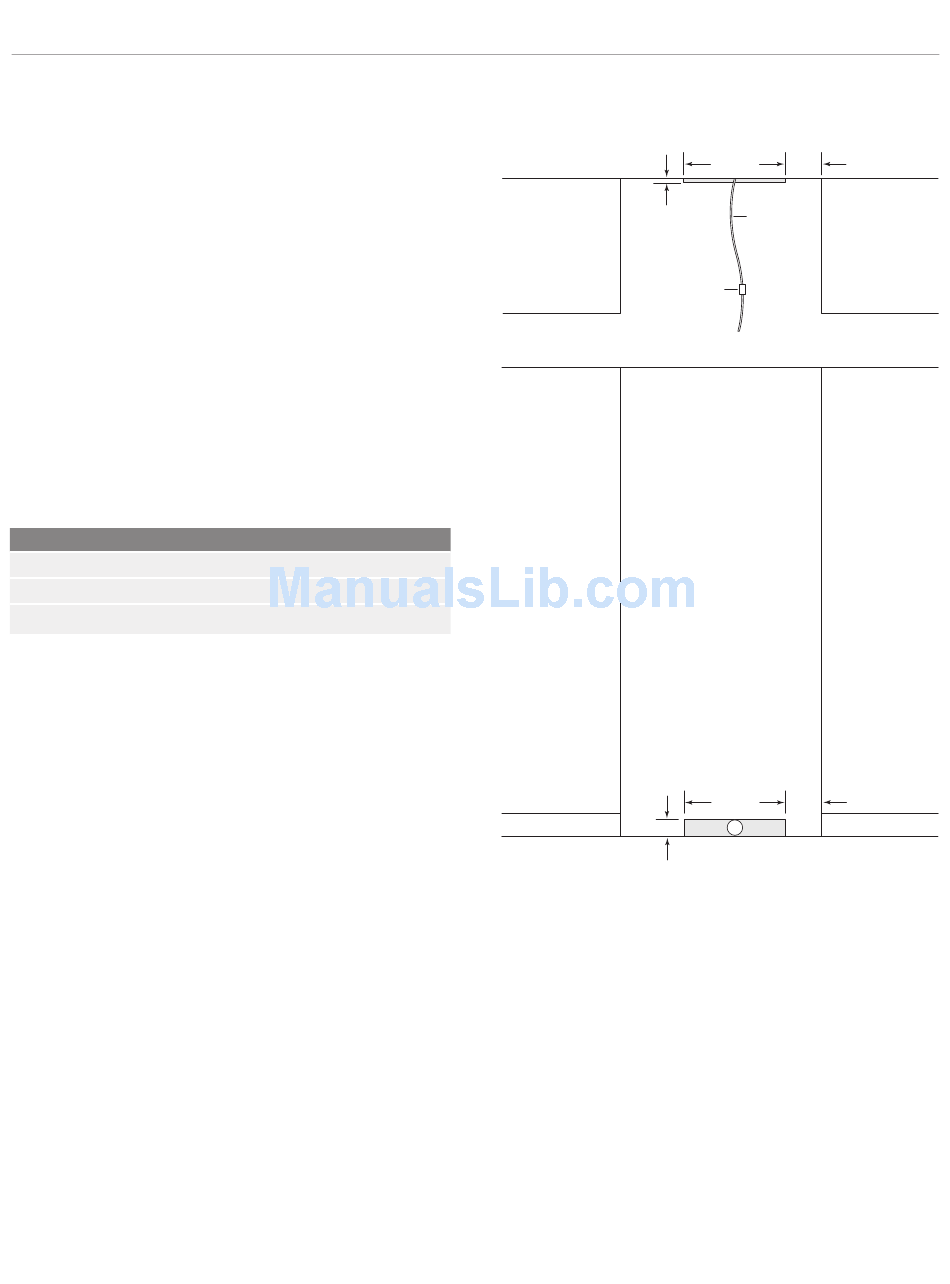

Location of water supply.
subzerotrade.com
152
457
mm
mm
WATER LINE
VALVE
TOP VIEW
FRONT VIEW
457 152
mm
mm
W
