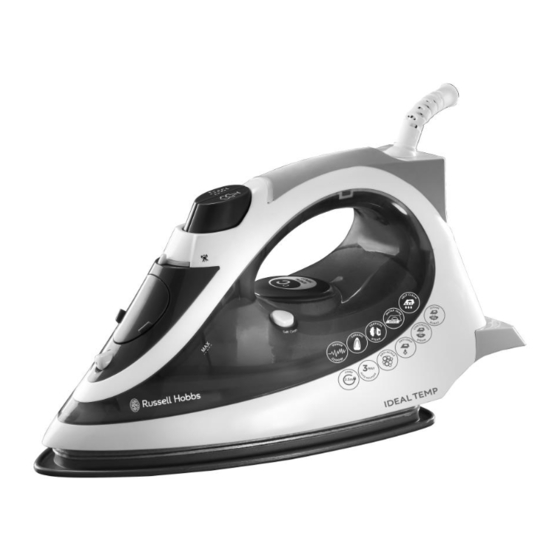

INSTRUCTIONS AND WARRANTY
RHI007
RUSSELL HOBBS
IDEAL TEMP
STEAM, SPRAY, DRY IRON

Advertisement

Table of Contents
loading

Related Manuals for Russell Hobbs RHI007

Summary of Contents for Russell Hobbs RHI007

  • Page 1 INSTRUCTIONS AND WARRANTY RHI007 RUSSELL HOBBS IDEAL TEMP STEAM, SPRAY, DRY IRON...
  • Page 2 Congratulations on purchasing our Russell Hobbs Ideal Temp Steam, Spray, Dry Iron. Each unit is manufactured to ensure safety and reliability. Before using this appliance for the first time, please read the instruction manual carefully and keep it for future reference.

  • Page 3: Important Safeguards

     Includes water measuring cup  With indicator light and heel rest  Water spray and anti-drip feature  Active-Duo anti-calcium/ limescale feature: (1) Anti-calc tablet fixed inside the water tank; (2) Self clean function  Vertical steam feature ideal for suits, dresses, curtains, hanging garments and delicate fabrics ...
  • Page 4 7. Children should be supervised to ensure that they do not play with the appliance. 8. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by the manufacturer or a qualified person in order to avoid an electrical hazard.
  • Page 5 25. Don’t use the iron in the vicinity of children. 26. Use the iron on a stable, level, heat-resistant surface, preferably an ironing board. 27. Don’t leave the iron unattended while plugged in, or while it’s standing on the ironing board. It could be knocked over by you, by a child or by a pet. 28.

  • Page 6: Parts Diagram

    44. In case of technical problems, switch off the appliance and do not attempt to repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above mentioned pre-cautions and instructions, could affect the safe operation of this appliance.

  • Page 7: Before First Use

    OPERATING INSTRUCTIONS BEFORE FIRST USE Remove any protective films or stickers from the soleplate and the iron’s body. Wipe the soleplate with a dry soft cloth. Unwind and straighten the power cord. Fill the iron as described in the section “How to Fill the Water Tank”. Connect the appliance to a suitable mains power supply outlet.
  • Page 8 Fabrics with this symbol are not ironable (figure 2). These fabrics include synthetic fabrics such as Spandex or elastane, Spandex-mixed fabrics and polyolefins (e.g. polypropylene), as well as prints on garments. Do not iron non-ironable fabrics. Figure 2. READ THE GARMENT LABELS AND FOLLOW THE MANUFACTURER’S IRONING INSTRUCTIONS THAT ARE OFTEN SHOWN BY SYMBOLS SIMILAR TO THE TABLE BELOW.

  • Page 9: How To Fill The Water Tank

    Example: Ironing a shirt 1. Start ironing the time-consuming parts such as collar, cuffs and sleeves. 2. Next, iron the bigger parts like the front and back. By doing this, you prevent wrinkling the bigger parts when you are busy ironing the time-consuming ones. 3.

  • Page 10: Dry Ironing

    WATER SPRAY FUNCTION This function can be used at any time and it does not affect other functions. Press the spray button to spray water on clothes, as often as required. Moistening the garment to be ironed often helps to remove stubborn creases. NOTE: When using the water spray function, ensure that there is enough water in the water tank.

  • Page 11: Burst Of Steam In Vertical Position

    steam rate can be adjusted according to your requirement, however for the best results and shortest ironing time, we strongly recommend that you iron all ironable fabrics at the maximum steam output setting. Caution: Synthetic fabric, Nylon, Synthetic Silk and Silk cannot be steam ironed as it will damage the finish of the fabric.

  • Page 12: Self-Cleaning

    soleplate. Tip: Pull the garment with one hand to stretch it for more effective wrinkle removal. Note: It may be necessary to press the burst of steam button few times to start this function. During the use of ‘Burst of Steam’, stop ironing when the SmartLight turns on and then start ironing again only after the SmartLight has turned off.
  • Page 13 Chamber from previous use. 12. Release the self-cleaning button a soon as all the water in the tank has been used 13. Repeat the self-cleaning process if the iron still contains a lot of impurities. 14. After the self-cleaning process, put the plug into the wall socket and let the iron heat up to allow the soleplate to dry.

  • Page 14: Cleaning And Maintenance

    CLEANING AND MAINTENANCE  Regularly rinse the water tank with water. Empty the water tank after you have rinsed it.  After using, lift the iron with the water inlet filling hole downwards to empty the remaining water from the water tank into the sink. ...

  • Page 15: Storing The Appliance

    STORING THE APPLIANCE  Complete Cleaning and Maintenance as instructed above.  Ensure that the steam slider is set to the “0”/ “no steam”/ “OFF” position.  Ensure that all parts are dry before storing.  Store only once the iron has cooled completely. ...

  • Page 16: Troubleshooting

    TROUBLE-SHOOTING Problem Possible Reasons Solution Not enough heat The SmartLight indicator light is Wait until the SmartLight has turned off – the iron is still on and the iron is still heating now ready. The iron is unplugged. Check if the iron is plugged into the mains power supply.

  • Page 17: Servicing The Appliance

    turned off. The water is over the MAX water Pour out the remaining level position. water. Little Steam Check if the steam slider is in the Set the steam slider to the correct position. correct position. A steam hole is blocked. Clean the steam hole as indicated in the cleaning and maintenance section.

  • Page 18: Changing The Plug

    (Pty) Limited service centre. Servicing outside the warranty period is still available, but will, however, be chargeable. CHANGING THE PLUG Should the need arise to change the fitted plug, follow the instructions below. This unit is designed to operate on the stated current only. Connecting to other power sources may damage the appliance.
  • Page 19 PLEASE AFFIX YOUR PROOF OF PURCHASE/RECEIPT HERE IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE PRODUCED. W A R R A N T Y Home of Living Brands (Pty) Limited (“Home of Living Brands”) warrants to the original purchaser of this product (“the customer”) that this product will be free of defects in quality and workmanship which under normal personal, family or household use and purpose may manifest within a period of 1 (one) year from the date of purchase (“warranty period”).
