INSTRUCTIONS AND WARRANTY
RHI628
RUSSELL HOBBS STEAM, SPRAY, DRY IRON

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RHI628 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Russell Hobbs RHI628

Summary of Contents for Russell Hobbs RHI628

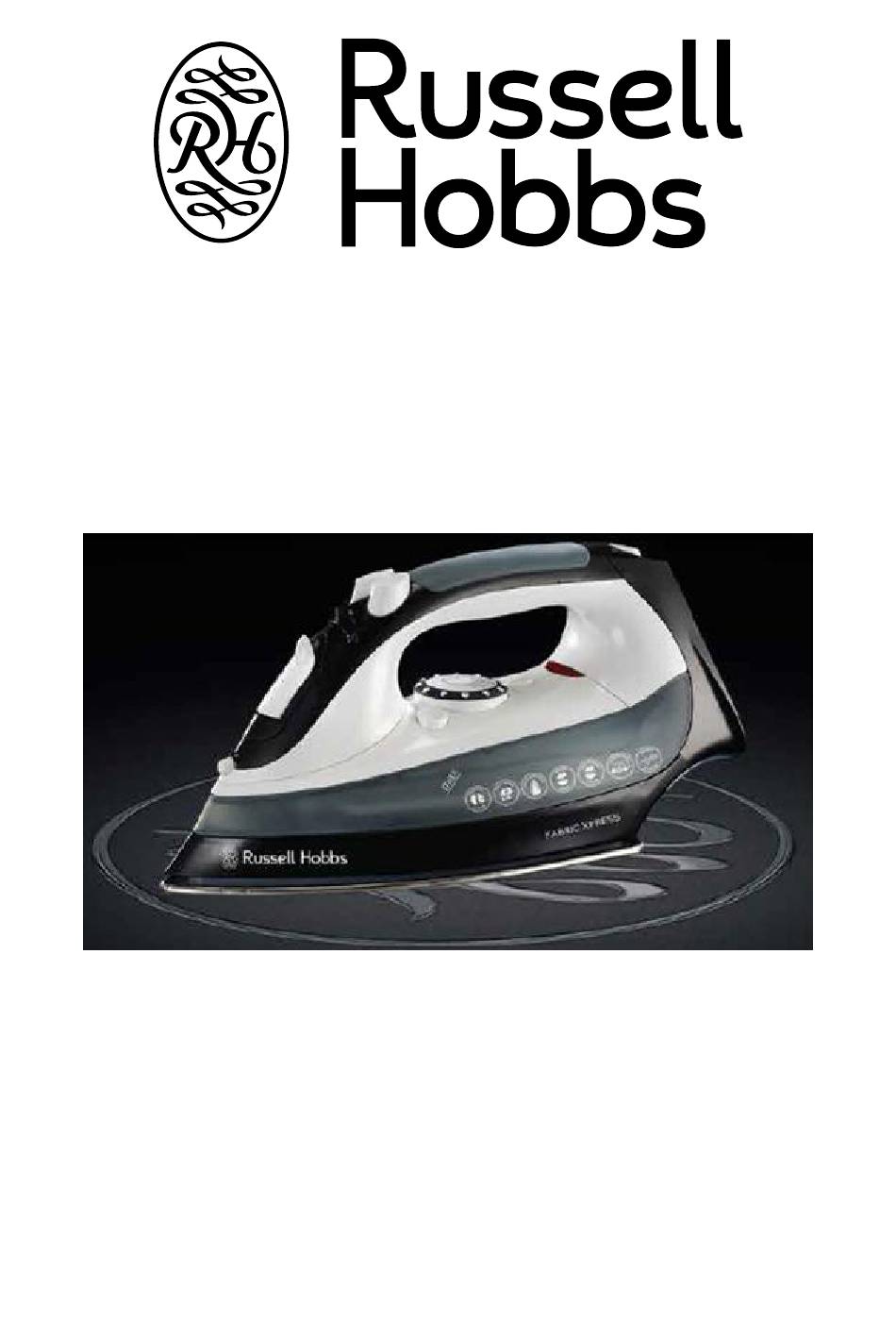

  • Page 1 INSTRUCTIONS AND WARRANTY RHI628 RUSSELL HOBBS STEAM, SPRAY, DRY IRON...

  • Page 2: Important Safeguards

    Congratulations on purchasing our Russell Hobbs Steam, Spray, Dry Iron. Each unit is manufactured to ensure safety and reliability. Before using this appliance for the first time, please read the instruction manual carefully and keep it for future reference. FEATURES OF THE RUSSELL HOBBS STEAM, SPRAY, DRY IRON ...
  • Page 3 1. Please read the instructions carefully before using any appliance. 2. Always ensure that the voltage on the rating label corresponds to the mains voltage in your home. 3. Incorrect operation and improper use can damage the appliance and cause injury to the user.
  • Page 4 17. Use of an extension cord with this appliance is not recommended. However, if it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid overheating of the extension cord, appliance or plug point.
  • Page 5  Immediately after use  When not in use  When moving 38. The appliance generates high temperature steam. Always handle with care and warn other users of potential danger. 39. Don’t let the power cord touch the soleplate as it may result in damage as well as a potential fire hazard.

  • Page 6: Parts Diagram

    PARTS DIAGRAM 1. Temperature Dial 7. Steam Knob 2. Steam Button 8. Soleplate 3. Spray Button 9. Skirt 4. Spray Nozzle 10. Water Tank 5. Water Inlet Cover 11. Self-Clean Button 6. Pilot Light Indicator OPERATING INSTRUCTIONS BEFORE FIRST USE Remove any protective films or stickers from the soleplate and the Iron’s body.
  • Page 7 starts to come out from the vents on the soleplate. Begin first time ironing with an old towel. When the water tank is empty and there is no more steam that can be produced; the preparation work is completed. The iron is now ready for proper use. Note: It is normal for small amount of smoke to be produced the first time you use the iron, this will quickly disappear.
  • Page 8 READ THE GARMENT LABELS AND FOLLOW THE MANUFACTURER’S IRONING INSTRUCTIONS THAT ARE OFTEN SHOWN BY SYMBOLS SIMILAR TO THE FOLLOWING: IRONING LABEL TEXTILE TYPE FABRICS Synthetic Acrylic Polypropylene Polyurethane Synthetic Acetate Triacetate Synthetic Polyamide (Nylon) Polyester Viscose(Rayon) Silk Silk Wool Wool Cotton Cotton...

  • Page 9: Dry Ironing

    3. Open the water inlet cover. 4. Place the iron on its heel rest and tilt forward approximately at a 45 degree angle. 5. Fill water through the water-filling inlet hole up to the MAX level mark indicated on the side of the iron/ water tank. Never fill above this mark. 6.

  • Page 10: Steam Ironing

    STEAM IRONING This function can only be used at a higher ironing temperature – moderate or max position. 1. Fill the iron as described in "How to Fill the Water Tank". 2. Connect the iron to a suitable mains power supply outlet. 3.

  • Page 11: Burst Of Steam In Vertical Position

    removed within three (3) steam button presses. BURST OF STEAM IN VERTICAL POSITION Burst of steam can also be applied when holding the iron in a vertical position. This function is useful for removing wrinkles on garments in hanging position, hanging curtains, or other hanging fabrics.

  • Page 12: Cleaning And Maintenance

    10. Disconnect the iron from mains power supply outlet. 11. Hold the iron horizontally over a sink. 12. Hold/ press the self-cleaning button in and gently shake the iron to and fro. 13. Steam and boiling hot water will emit from the holes on the soleplate which contains impurities, scale, minerals and flakes (if any) that deposited in the Steam Chamber from previous use.

  • Page 13: Storing The Appliance

     Ensure that the steam knob is set to the “0”/ “no steam” position.  Wipe the soleplate with a damp cloth and a non-abrasive (liquid) cleaner. Once done, buff the soleplate with a clean dry cloth.  If fiber has adhered/ stuck to the soleplate, use a damp cloth with vinegar to wipe the fiber from the soleplate.

  • Page 14: Servicing The Appliance

    The temperature dial may have check if the iron is been set to the incorrect position plugged into the mains The iron is unplugged. power supply. No steam is being produced The temperature dial has been Set the temperature dial set to “0”/ “OFF”.

  • Page 15: Changing The Plug

     That the unit has been wired correctly and that the wall socket is switched on.  That the mains power supply is ON.  That the plug is firmly in the mains socket. If the appliance still does not work after checking the above: - Consult the retailer for possible repair or replacement.
  • Page 16 PLEASE AFFIX YOUR PROOF OF PURCHASE/RECEIPT HERE IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE PRODUCED. W A R R A N T Y Home of Living Brands (Pty) Limited (“Home of Living Brands”) warrants to the original purchaser of this product (“the customer”) that this product will be free of defects in quality and workmanship which under normal personal, family or household use and purpose may manifest within a period of 1 (one) year from the date of purchase (“warranty period”).
