RETAINING
CLIP (2)

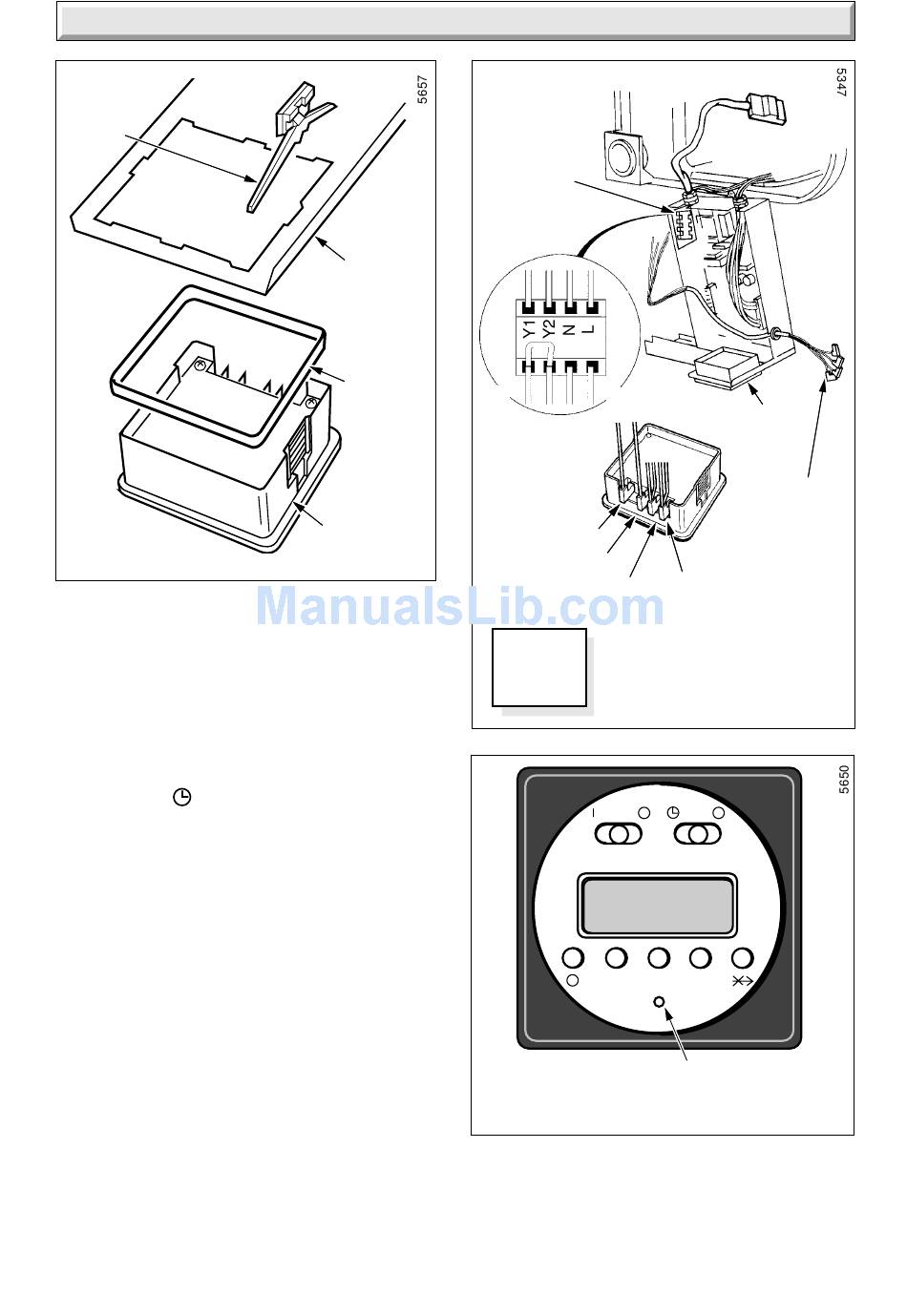

Setting Instructions for SWIFT-FLOW
Digital Timer Style 2.
The following instructions are provided so that, if the
Instructions for Use are missing the clock/timer can be
set working.
This is a twenty four hour clock, that is 1pm is 1300.
1. Press "R" Reset.
2. Set switch to " ".
3. Set time of day "HR" "MIN".
4. Set day of week "DAY.
5. Set switch to "RUN" - colon will flash.
Once this is done the following preset times will
operate:-
MON to FRI - "ON"
"OFF"
"ON"
"OFF"
SAT and SUN - "ON"
"OFF"
"ON"
"OFF"
Because of our constant endeavour for improvement details may vary slightly from those in the instructions.
221062A
Digital Clock / Timer
CLOCK/TIMER
MOUNTING
BRACKET
SPACER
CLOCK/TIMER
Diagram 5
06.30
08.30
16.30
22.30
07.00
09.00
16.00
23.00
4
4 WAY
TERMINAL
BLOCK
Y Y B BR
*
Y Y B BR
Y Y
*Remove yellow
*link
BR B
COMMON
HEATING ON
MAINS
LIVE (L)
KEY
BR
BROWN
B BLUE
Y
YELLOW
AUTO
M T W Th F S Su
DAY HR
P
DIGITAL CLOCK/TIMER STYLE 2
CLOCK/
TIMER
ELECTRICAL
CONNECTORS
MAINS
NEUTRAL
(N)
Diagram 6
RUN
P
MIN
R
RESET
BUTTON
Diagram 7
