INSTALLERS INFORMATION
These instructions are supplementary to the
literature supplied with the boiler and are for use
with :
Top Outlet Horizontal Concentric Flue Packs -
A2043600 and A2043400
Refer to diagram 1.
Top Outlet Horizontal Concentric Flue Packs:
A2043600
Horizontal telescopic flue pack.
A2043400
Standard horizontal flue pack.
SEALING
TAPE (telescopic only)
SEALING
COLLAR
cxi & sxi
FLUE SYSTEM
SCREW x 2
SCREW x 1
TELESCOPIC
TERMINAL ASSEMBLY
Tel: (01773) 828100
Fax: (01773) 828070
If you have been supplied with Standard
horizontal flue pack - Pt. No. 2000460360 or Pt.
No. A2037300, you will find the instructions for
the preparation and installation of these flues
within the literature supplied with your boiler.
SECURING
COLLAR
SCREW x 2
SEALING
COLLAR
STANDARD
TERMINAL ASSEMBLY
Glow-worm,
Nottingham Road, Belper, Derbyshire. DE56 1JT
General/Sales enquiries:
Tel: (01773) 824639 Fax: (01773) 820569
0020008566A.01.05
FLUE
ELBOW
SCREW x 4
GASKET
(fitted)

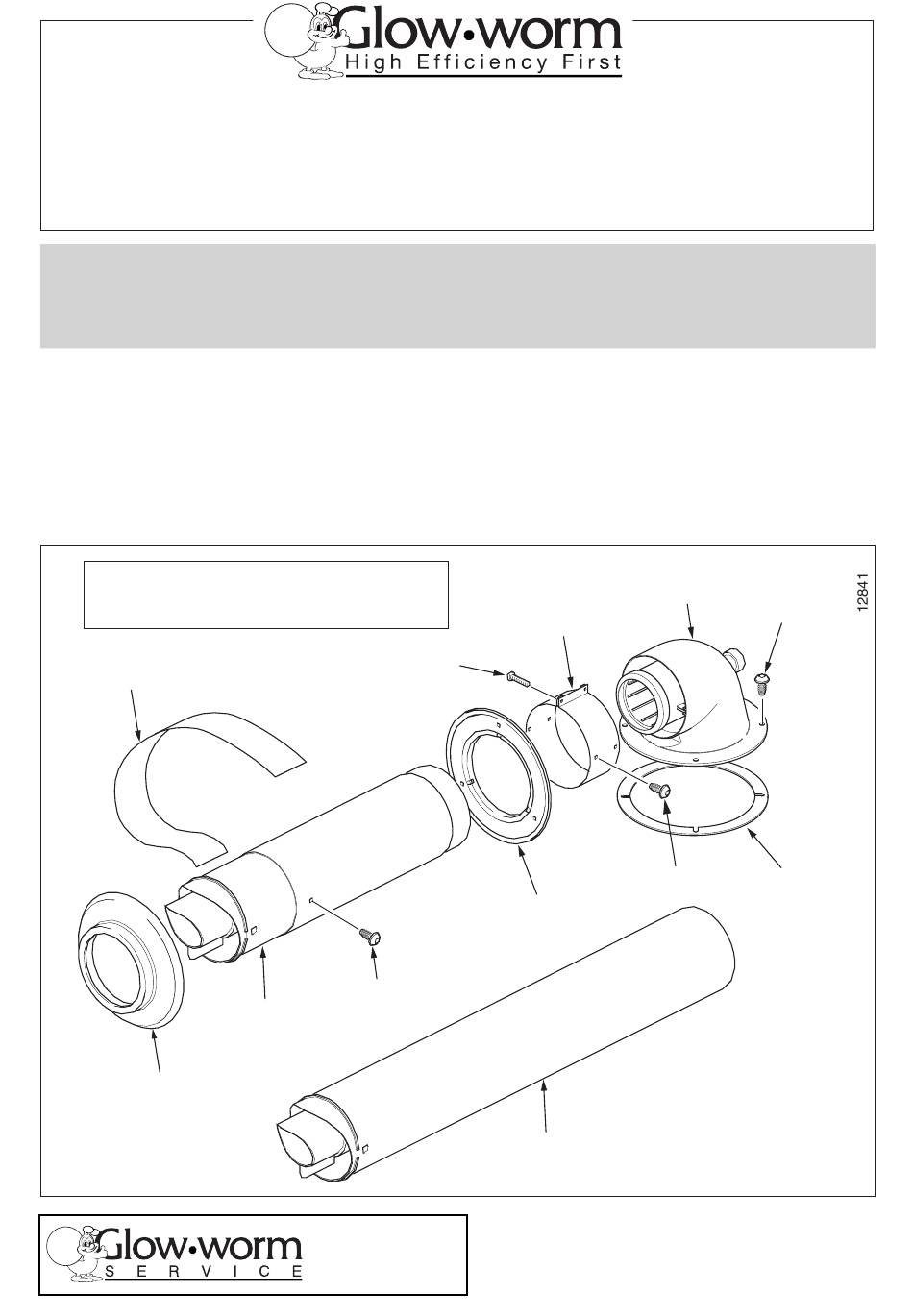

Diagram 1
