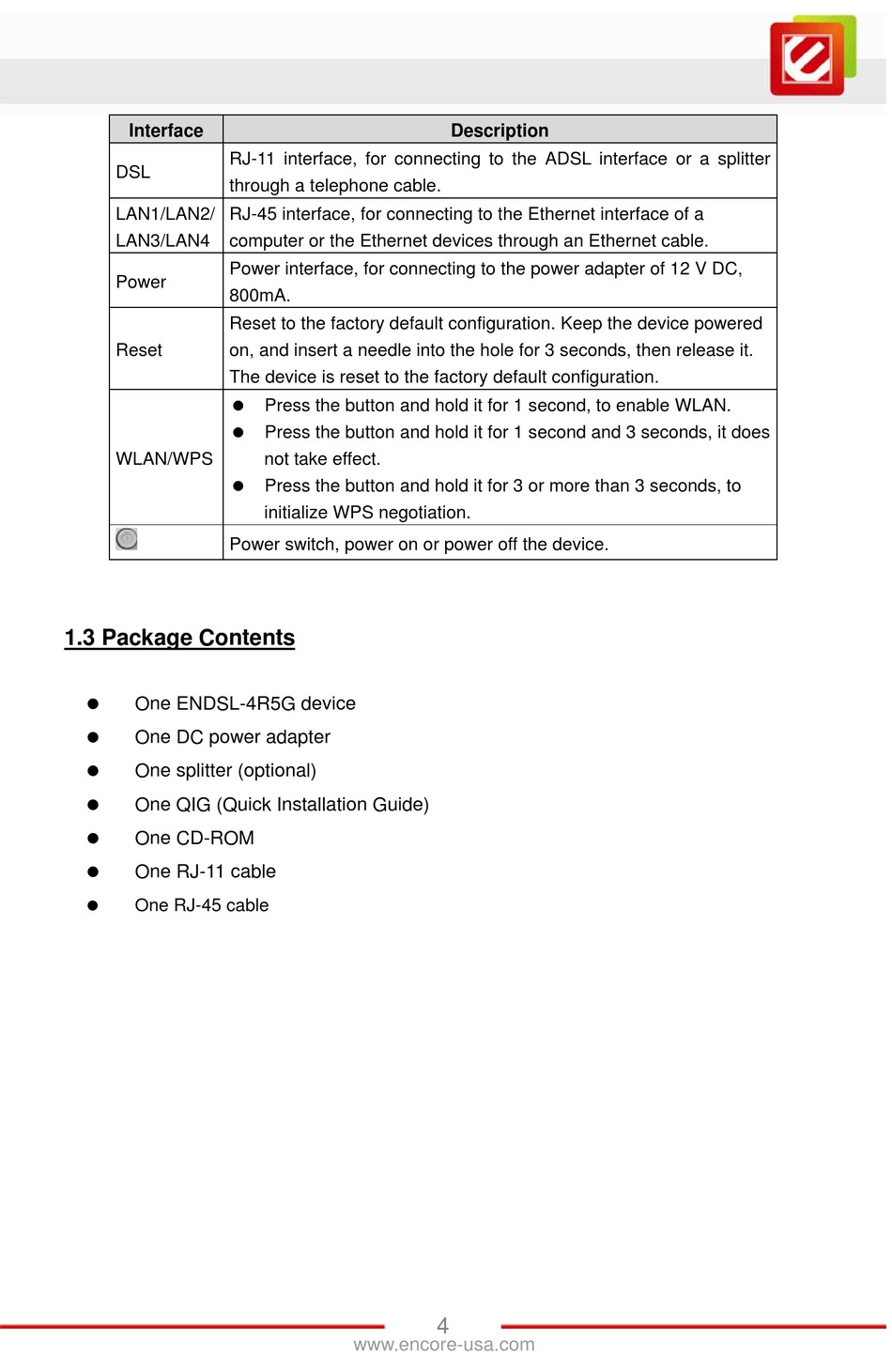

Package Contents - Encore ENDSL-4R5G Quick Installation Manual

Interface
RJ-11 interface, for connecting to the ADSL interface or a splitter
DSL
through a telephone cable.
LAN1/LAN2/ RJ-45 interface, for connecting to the Ethernet interface of a
LAN3/LAN4 computer or the Ethernet devices through an Ethernet cable.
Power interface, for connecting to the power adapter of 12 V DC,
Power
800mA.
Reset to the factory default configuration. Keep the device powered
Reset on, and insert a needle into the hole for 3 seconds, then release it.
The device is reset to the factory default configuration.
 Press the button and hold it for 1 second, to enable WLAN.
 Press the button and hold it for 1 second and 3 seconds, it does
WLAN/WPS
 Press the button and hold it for 3 or more than 3 seconds, to
Power switch, power on or power off the device.

1.3 Package Contents


One ENDSL-4R5G device

One DC power adapter

One splitter (optional)

One QIG (Quick Installation Guide)

One CD-ROM

One RJ-11 cable

One RJ-45 cable
not take effect.
initialize WPS negotiation.
