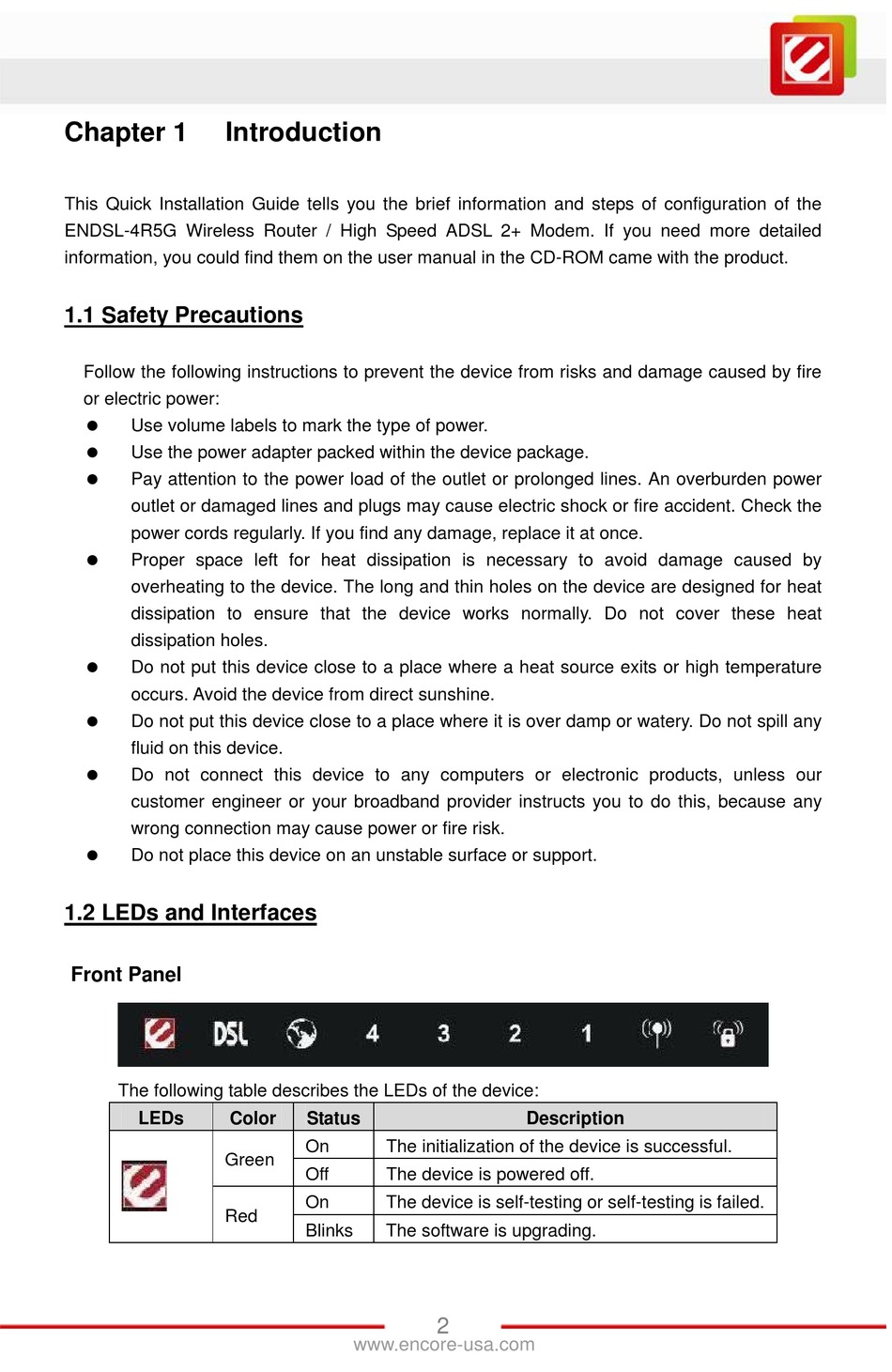

Chapter 1 Introduction
This Quick Installation Guide tells you the brief information and steps of configuration of the
ENDSL-4R5G Wireless Router / High Speed ADSL 2+ Modem. If you need more detailed
information, you could find them on the user manual in the CD-ROM came with the product.

1.1 Safety Precautions

Follow the following instructions to prevent the device from risks and damage caused by fire
or electric power:

Use volume labels to mark the type of power.

Use the power adapter packed within the device package.

Pay attention to the power load of the outlet or prolonged lines. An overburden power
outlet or damaged lines and plugs may cause electric shock or fire accident. Check the
power cords regularly. If you find any damage, replace it at once.

Proper space left for heat dissipation is necessary to avoid damage caused by
overheating to the device. The long and thin holes on the device are designed for heat
dissipation to ensure that the device works normally. Do not cover these heat
dissipation holes.

Do not put this device close to a place where a heat source exits or high temperature
occurs. Avoid the device from direct sunshine.

Do not put this device close to a place where it is over damp or watery. Do not spill any
fluid on this device.

Do not connect this device to any computers or electronic products, unless our
customer engineer or your broadband provider instructs you to do this, because any
wrong connection may cause power or fire risk.

Do not place this device on an unstable surface or support.

1.2 LEDs and Interfaces

Front Panel
The following table describes the LEDs of the device:
LEDs Color
Green
Red
Status
On The initialization of the device is successful.
Off The device is powered off.
On The device is self-testing or self-testing is failed.
Blinks The software is upgrading.
2
www.encore-usa.com
Description
