2. Hardware Installation

2.1 System Requirements

Pentium III 266 MHz processor or higher
128 MB RAM minimum
20 MB of free disk space minimum
RJ45 Ethernet Port

2.2 Package Contents

ENDLS-A2+WIG2 modem
RJ-45 Ethernet cable
RJ-11 Phone cable
Power Adapter
Quick Installation Guide
One External Antenna (for detachable model)

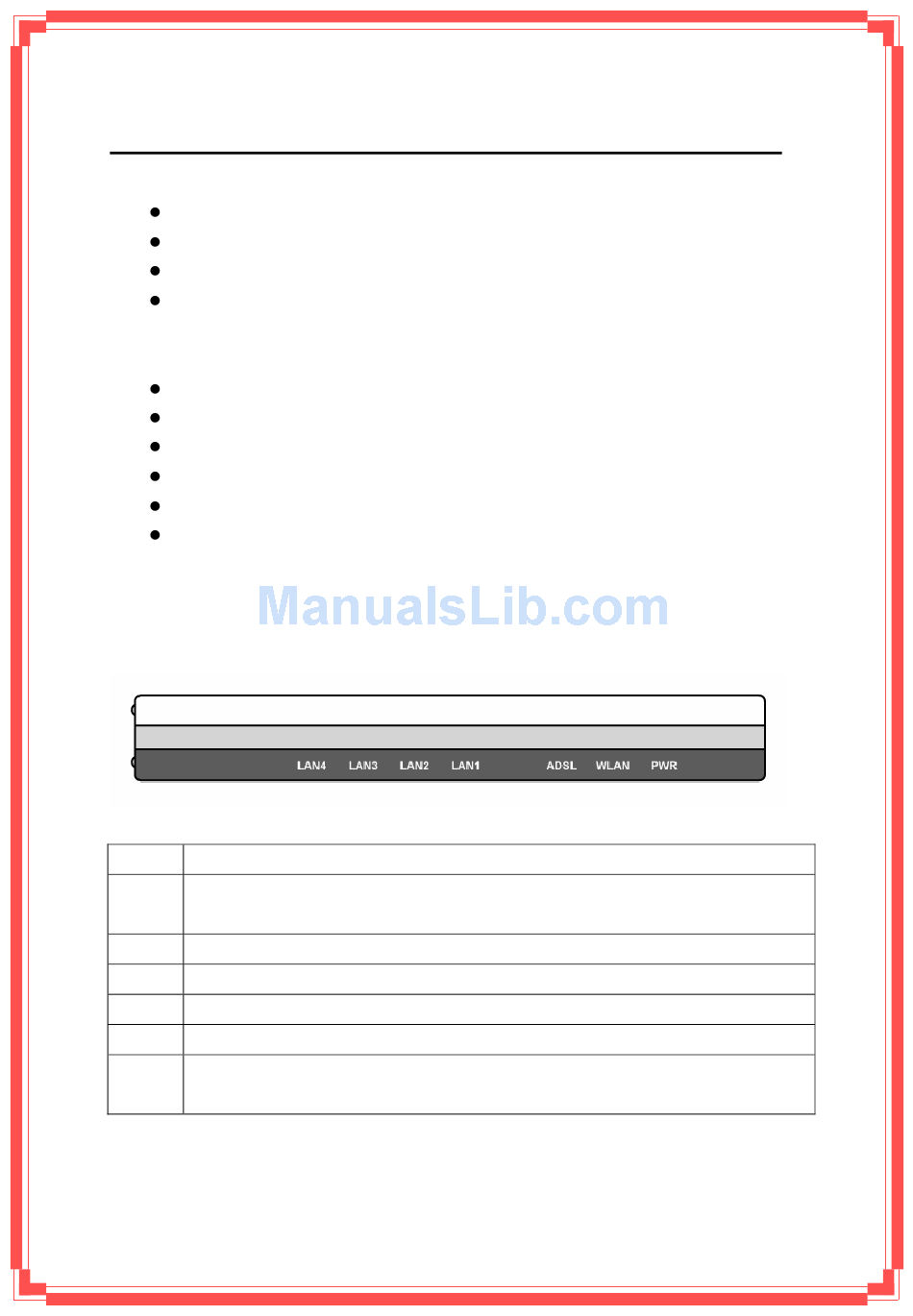

2.3 Front Panel Indicators and Description

Front panel of the ENDLS-A2+WIG2 router has LED indicators to display router's
operating status.
Descriptions of LED status
PWR When an active power adapter is connected with this router, this LED will light up.
When WLAN card installed properly, this LED will be flashing. When transferring data,
WLAN
the LED will be steadily.
LAN4 When port 4 connection with PC or Switch / Hub is established, this LED will light up.
LAN3 When port 3 connection with PC or Switch / Hub is established, this LED will light up.
LAN2 When port 2 connection with PC or Switch / Hub is established, this LED will light up.
LAN1 When port 1 connection with PC or Switch / Hub is established, this LED will light up.
When connection with Internet (ADSL Connected) is established, this LED will light up.
ADSL
When this LED is flashing: NO ADSL physical connection
