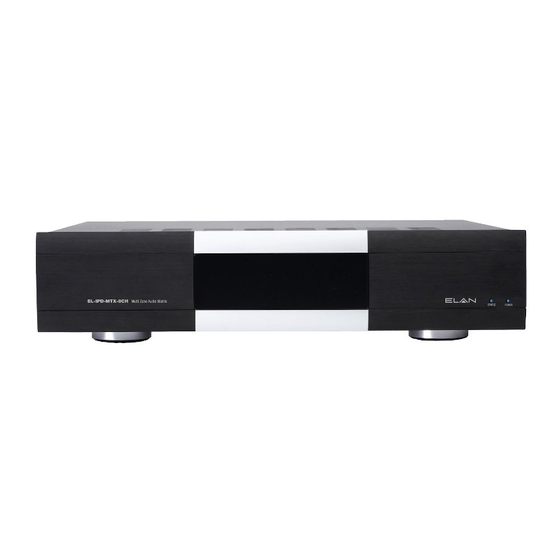

- Page 1 EL-IPD-MTX-8CH Multi Zone Audio Matrix Quick Start Guide...
-
Page 2: Important Safety Instructions
QUICK START GUIDE EL-IPD-MTX-8CH IMPORTANT SAFETY INSTRUCTIONS: Read these instructions. 18. Do not expose batteries to excessive heat such as sunshine, fire or the like. Keep these instructions. 19. Open flame sources, such as lighted candles, Heed all warnings. should NOT be placed on the apparatus. -
Page 3: Fcc And Ic Information
QUICK START GUIDE EL-IPD-MTX-8CH FCC AND IC INFORMATION: This Class B digital apparatus complies with Part 15 of the FCC rules and with Canadian ICES-003. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: This device may not cause interference and This device must accept any interference, including interference that may cause undesired operation of the device. -
Page 4: What's Included
QUICK START GUIDE EL-IPD-MTX-8CH OVERVIEW The EL-IPD-MTX-8CH Multi Zone Audio Matrix can be used in a stand-alone configuration or with other amplifiers and pre-amps within the ELAN IP audio distribution family of products by adding the optional Dante™ Audio Networking Card. - Page 5 QUICK START GUIDE EL-IPD-MTX-8CH REAR VIEW Item Description Network 100/1000 Ethernet DHCP Enabled by Default • 1 RJ45 Jack Digital Audio Inputs • 2 Optical TOSLINK Inputs Stereo, PCM, 96kHz, 24-bit • 2 Coaxial RCA Inputs Maximum input level: 2.0 VRMS Doorbell Audio Input Input sensitivity: 0dbV (1.0 VRMS)
- Page 6 QUICK START GUIDE EL-IPD-MTX-8CH APPLICATIONS The following applications are examples of how the EL-IPD-MTX-8CH Multi Zone Audio Matrix can be used. For more detailed system design guidelines, see the ELAN IP Amplifier Design Guide from www.elanhomesystems.com. The EL-IPD-8CH-MTX can be used in stand alone mode to support up to 13 input sources (4 digital, 8 mono / 4 stereo analog RCA and 1 stereo 3.5mm typically used as the doorbell input from an ELAN System Controller).
- Page 7 Adding the EL-IPD-NAC-EXT -Network Audio Card gives the ability to combine multiple chassis in to one system. Combine the EL-IPD-MTX-8CH Multi Zone Audio Matrix with the EL-IPD-AMP-EXT Multi Zone Audio Extender to add up to 8 more zones of audio. Using Dante Audio Networking, the two chassis can be linked using standard networking equipment.
- Page 8 By adding the EL-IPD-NAC-EXT - Network Audio Card to both EL-IPD-MTX-8CH Multi Zone Audio Matrix chassis, they can be connected to add up to 12 more zones and 12 inputs. Using Dante Audio Networking, the two chassis can be linked using standard networking equipment.
- Page 9 QUICK START GUIDE EL-IPD-MTX-8CH If more sources are needed beyond the capability of a single EL-IPD-MTX-8CH Multi Zone Audio Matrix, the EL-IPD-PRE-MSI can be added to increase the number of inputs available. By adding the EL-IPD-NAC-EXT - Network Audio Card to both EL-IPD-MTX-8CH Multi Zone Audio Matrix and the EL-IPD-PRE-MSI Multi Zone Preamp Audio Matrix, they can be connected to add up to 12 preamp zones and 22 inputs.
- Page 10 If remote sources are needed such as a TV’s audio output, the EL-IPD-PRE-SSI Local Audio Source input device can be used to send audio over the network to the EL-IPD-MTX-8CH Multi Zone Audio Matrix. Using Dante Audio Networking, the two devices can be linked using standard networking equipment. The EL-IPD-PRE-SSI is an additional source added to the direct input sources on the EL-IPD-MTX-8CH.
-
Page 11: Installation
QUICK START GUIDE EL-IPD-MTX-8CH INSTALLATION Mount the EL-IPD-MTX-8CH Multi Zone Audio Matrix in a cabinet by setting it on a sturdy shelf. As with any electronic device, the EL-IPD-MTX-8CH generates heat at all times, but considerably more when all zones are playing. -
Page 12: Audio Inputs
The digital inputs are independent of the line level analog audio inputs and are available as sources to any zone. The doorbell input is used to route audio from the ELAN control system - including paging via the ELAN user interfaces and audio from video doorbells. -
Page 13: Powering The System
QUICK START GUIDE EL-IPD-MTX-8CH POWERING THE SYSTEM Plug in the EL-IPD-MTX-8CH Multi Zone Audio using the correct power cord for your region and engage the Main Power switch on the rear. CONFIGURATION For detailed configuration information, download the ELAN integration note and ELAN IP Amplifier Design Guide from www.elanhomesystems.com. -
Page 14: Troubleshooting
QUICK START GUIDE EL-IPD-MTX-8CH TROUBLESHOOTING The two LEDs on the front face of the unit provide information regarding the status of the L-IPD-MTX-8CH Multi Zone Audio Matrix POWER INDICATOR Condition Amplifier Status Power/Network Status Power On, Booting Flashing Blue Power On, Connected to Network... -
Page 15: Limited Warranty
LIMITED WARRANTY Nortek Security & Control ( ‘NSC’ ) warrants the EL-IPD-MTX-8CH to be free from defects in materials and workmanship for the period of two years (2 years) from the date of purchase. If within the applicable warranty period above purchaser discovers that such item was not as warranted above and promptly notifies ‘NSC’... - Page 16 1 (800) 472-5555 - US techsupport@elanhomesystems.com 1 (707) 283-5900 - International web: 1 (707) 283-5901 - Fax elanhomesystems.com 10025259 Rev-C, 03/2020 ©2020 Nortek Security & Control, LLC. All rights reserved. ELAN is a registered trademark of Nortek Security & Control, LLC.
