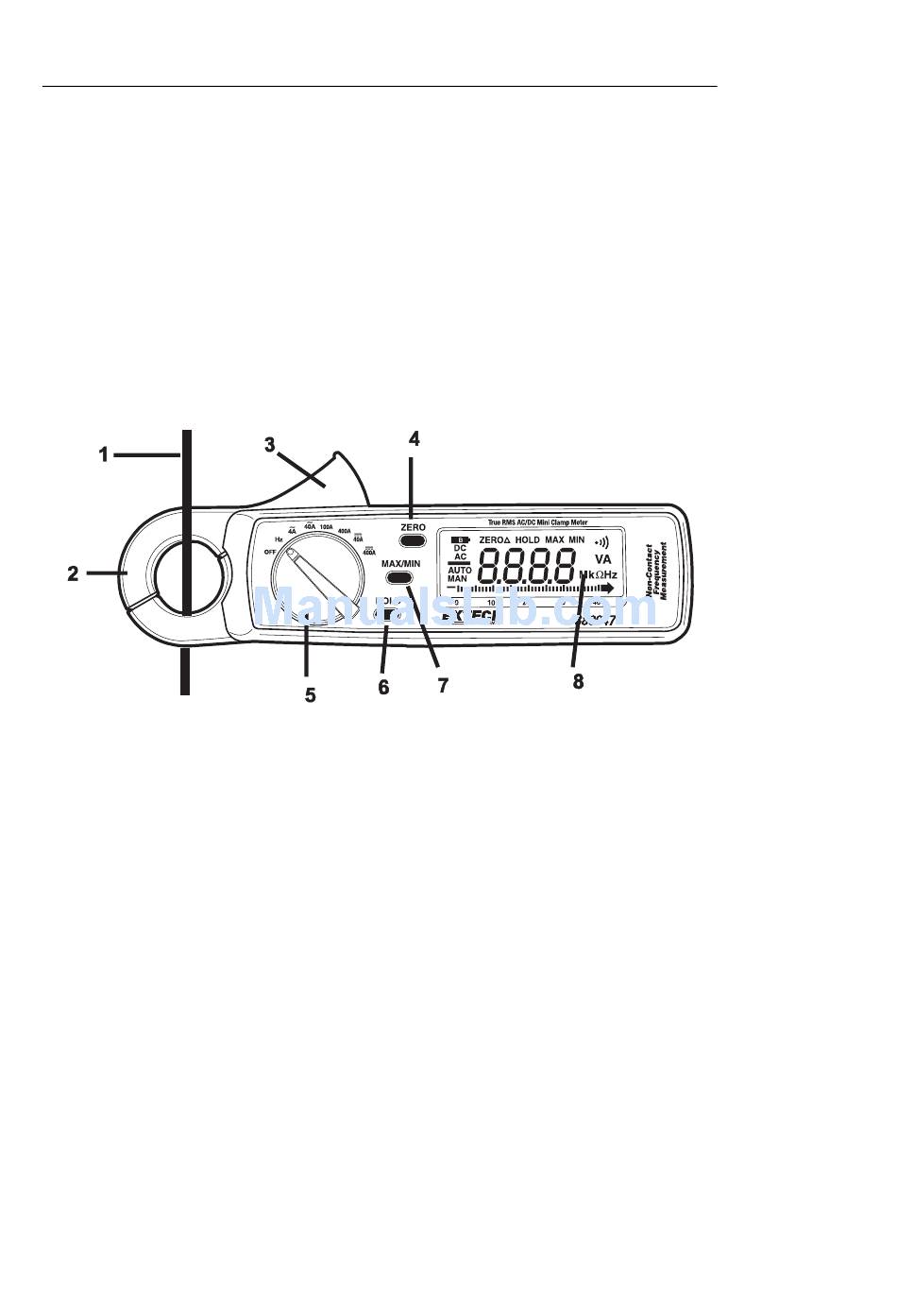

Meter Description
1.
Conductor under test
2.
Clamp Jaws
3.
Jaw trigger – Opens the meter jaws
4.
ZERO / Relative button – Zeroes the DCA reading
5.
Function select switch
6.
HOLD button to freeze displayed reading
7.
MAX/MIN button – Press to track and view highest and lowest readings
8.
LCD Display with function indicators, units of measure, and bargraph
380947 V3.0V
4
www.burntec.com
10/06
