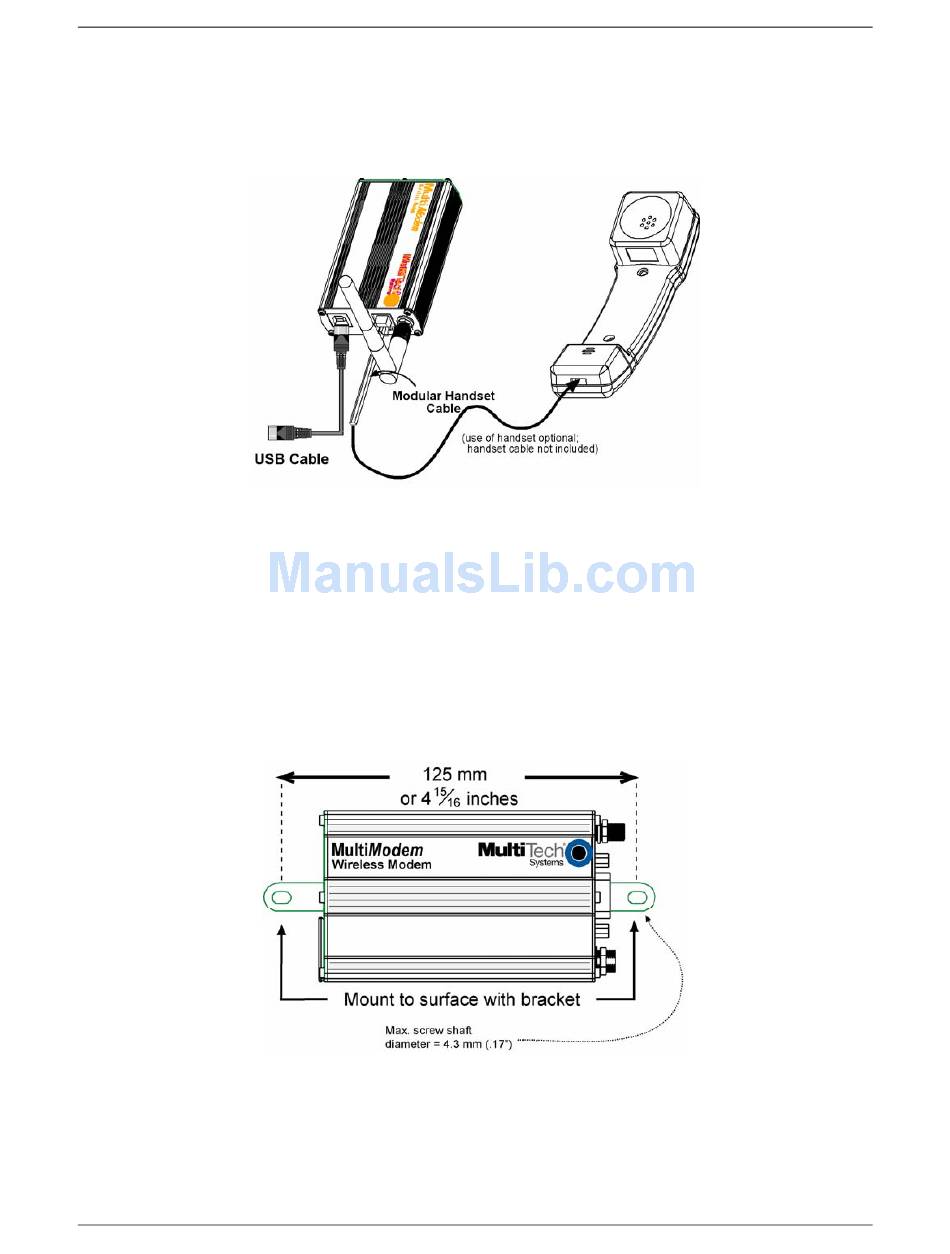

Step 3 – Handset Connection (Optional)
If you intend to use a phone handset, connect it to the MultiModem now.
Step 4 – Attach the Modem to a Flat Surface
(Optional)
To mount the Wireless MultiModem, do the following:
1.
Obtain mounting screws (two are needed) that are appropriate for the surface on which you will mount the
modem. For example, one might use two 6-32 self-tapping screws 5/8" in length to mount the unit in a
truck to the wall of the cab behind the passenger's seat.
2.
Typically, the unit is mounted against a flat surface into which holes can be drilled. The mounting holes
(center-to-center) must be separated by 125mm or 4 -15/16 inches.
Drill the mounting holes at the desired mounting location.
Multi-Tech Systems, Inc. MultiModem CDMA USB Wireless Modem User Guide
Chapter 2 – Activation and Installation
12
