MultiModemDSVD User Guide

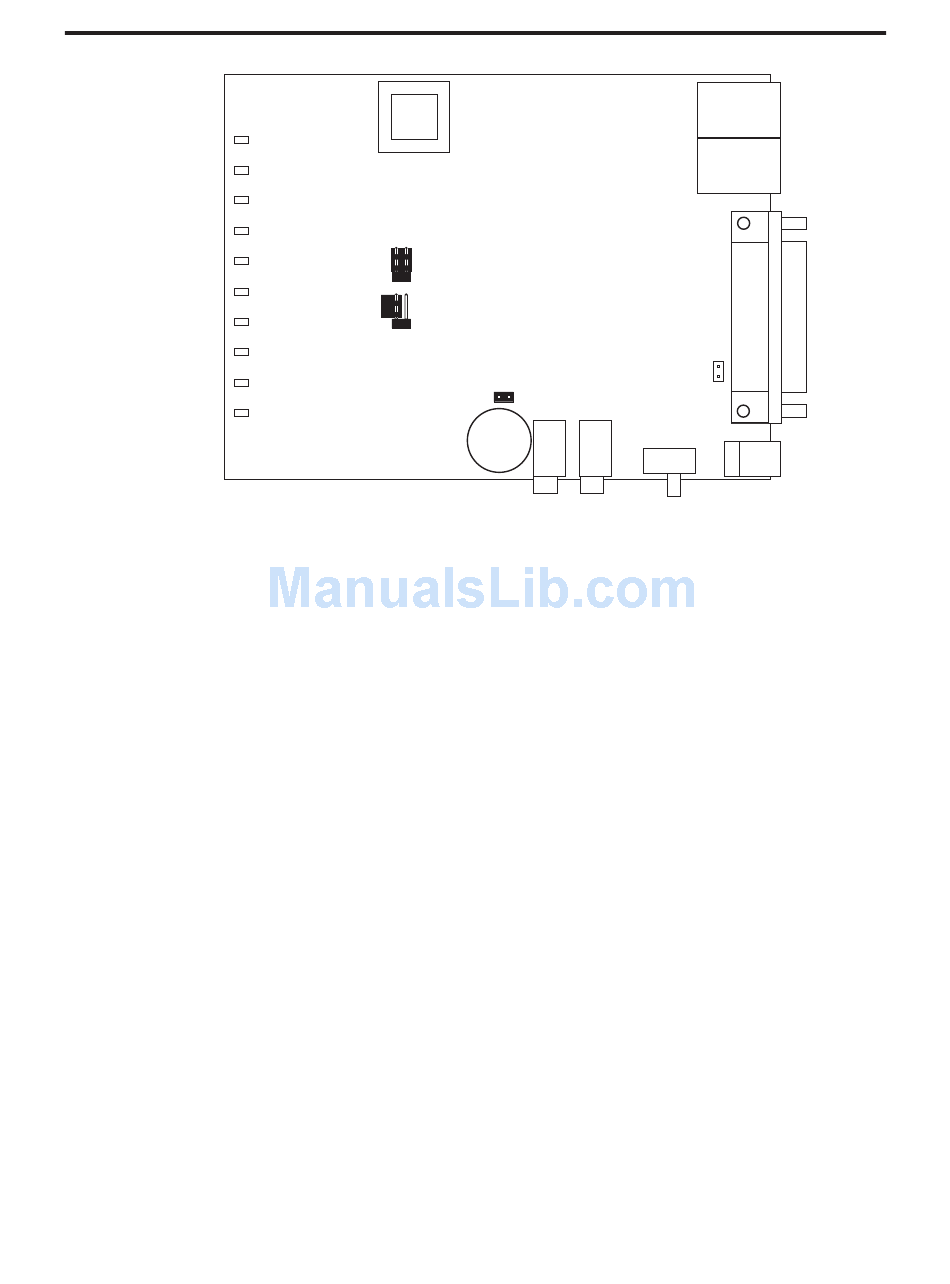

Figure 2-2. Location of speaker jumper. (MT5600DSDV only)

Changing the Speaker Jumper

The speaker jumper (J10) is behind the internal speaker near the external speaker

jack (see Figure 2-2).

• To use the MultiModemDSVD with a monophonic external speaker, remove the

jumper plug from the J10 jumper pins. You can store it by placing it on one

jumper pin.

• To use the MultiModemDSVD with a stereo speaker or sound card, place the

jumper plug on both pins of the J10 jumper. This is the factory default position.

Multi-Tech Systems, Inc.

J10 Speaker Mode

Closed: stereo (default)

Open: mono

J10

2 Installation
