Summary of Contents for Logik LCPCKX11

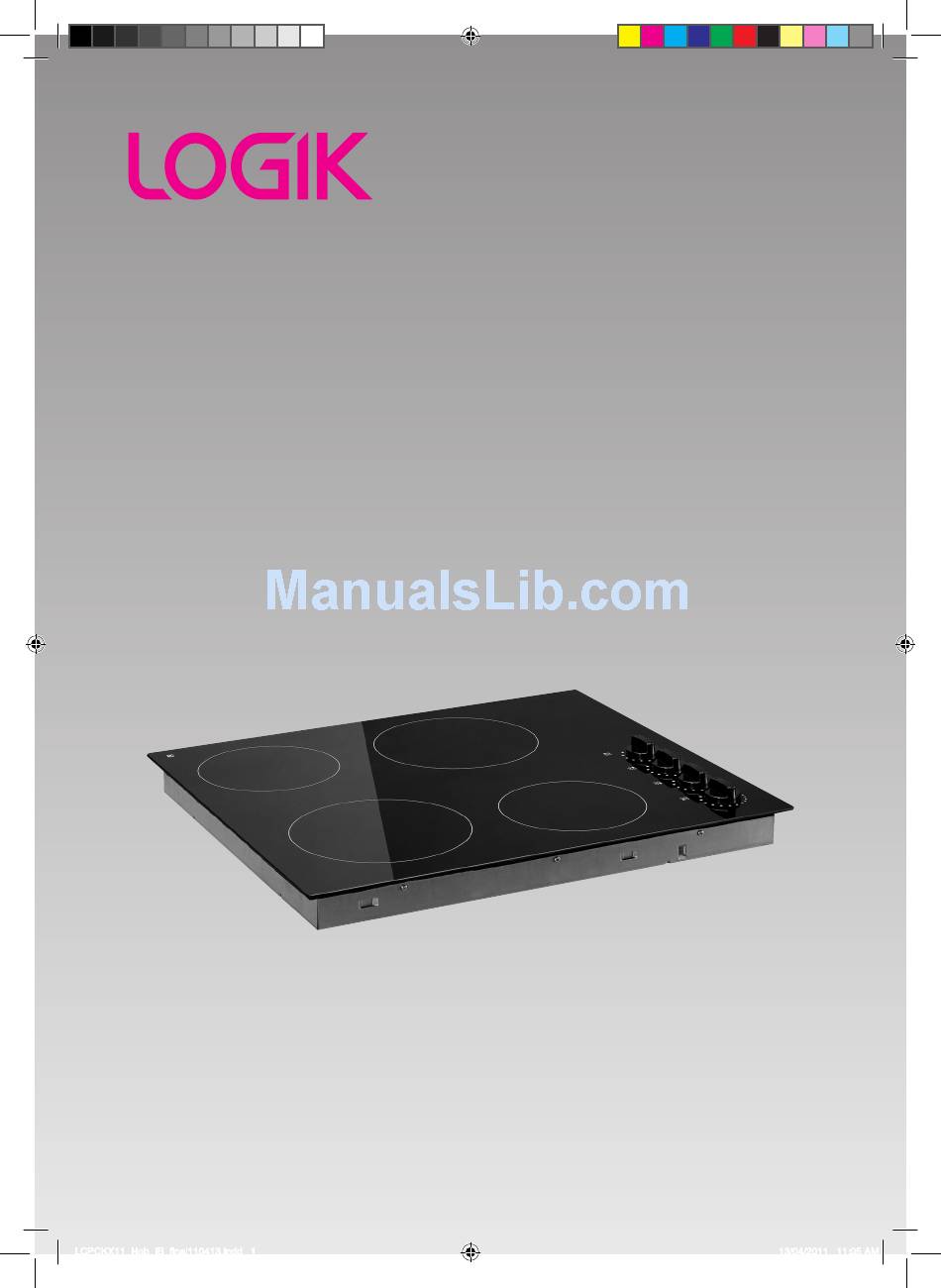

- Page 1 4 Zone Ceramic Hob Instruction / Installation Manual LCPCKX11 LCPCKX11_Hob_IB_final110413.indd 1 13/04/2011 11:05 AM...
- Page 2 LCPCKX11_Hob_IB_final110413.indd 2 13/04/2011 11:05 AM...
-
Page 3: Table Of Contents
Contents Unpacking ............................. 4 Product Overview ......................... 5 Top View ..................................5 Control Panel ................................5 Before Using Your New Ceramic Hob ..................6 Choosing the Right Cookware ..................... 6 Using Your Ceramic Hob ....................... 7 To Start Cooking ...............................7 Hot Hob Warning Indicator ...........................7 When You Have Finished Cooking ........................7 Cooking Guidelines ........................ -
Page 4: Unpacking
Thank you for purchasing your new Logik Built-in Ceramic Hob. We recommend that you spend some time to read this manual in order to fully understand how to install and operate it correctly. Read all the safety warnigs carefully before use and keep this manual for future reference. -
Page 5: Product Overview
Product Overview Top View Max.1200 W zone Max.1800 W zone Max.1200 W zone Max.1800 W zone Ceramic Glass Control Panel Control Panel Hot Hob Warning Indicators Power Regulating Controls LCPCKX11_Hob_IB_final110413.indd 5 13/04/2011 11:05 AM... -
Page 6: Before Using Your New Ceramic Hob
Before Using Your New Ceramic Hob • Read this guide, taking special note of the ‘Safety Warnings’ section. • Remove any protective film that may still be on your ceramic hob. Choosing the Right Cookware Do not use cookware with jagged edges or a curved base. Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. -
Page 7: Using Your Ceramic Hob
Using Your Ceramic Hob To Start Cooking Place a suitable pan on the cooking zone you wish to use. • Make sure the bottom of the pan and the surface of the cooking zone are clean and dry. Adjust the power regulating control to the desired level to turn on the control. -
Page 8: Cooking Guidelines
Cooking Guidelines Take care when frying as oil and fat heat up very quickly. At extremely high termperatures oil and fat will ignite spontaneously and this presents a serious fire risk. Cooking Tips • When food comes to the boil, reduce the temperature setting. • Using a lid will reduce cooking times and save energy by retaining the heat. -
Page 9: Care And Cleaning
Care and Cleaning The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the ceramic hob to find the settings that best suit you. Steam cleaner is NOT to be used. What? How? Important! -
Page 10: Hints And Tips
See ‘Care and cleaning’ . cleaning products being used. Please do not disassemble the unit by yourself to avoid any dangers and damages to the ceramic hob. Specification Model LCPCKX11 (Hob) Rated Voltage 230 – 240V~ Rated Frequency 50 Hz Overall Dimension (W x D X H) 590 (W) ×... -
Page 11: Installation
Installation Preparing the Worktop Cut out the work surface following the dimensions shown in the drawing below. For the purpose of installation and use, a minimum distance of 5cm space must be left around the cut out. Be sure the thickness of the work surface is at least 20mm. Use a heat-resistant work surface material to avoid deformation caused by the heat from the hob. -
Page 12: Fastening The Fixing Brackets
Fastening the Fixing Brackets The unit should be placed on a stable, smooth surface (use the packaging). Turn the hob upside down, place it on a soft surface and fasten the brackets to the approriate holes. DO NOT tighten the screws at this stage. Apply sealing strips around the edge of the hob. -
Page 13: Connecting The Hob To The Mains Power Supply
Connecting the Hob to the Mains Power Supply Remove the screw A. Remove the screw A. screw A Remove the 2 screws B. Remove the 4 screws C in the terminal box and insert the power cord at the connection. screw C screw B The power supply should be connected in compliance with the relevant standard, or a single-pole circuit... - Page 14 the top plate. Fix the top plate. LCPCKX11_Hob_IB_final110413.indd 14 13/04/2011 11:05 AM...
-
Page 15: Safety Warnings
Safety Warnings Operation and Maintenance Your safety is important to us. Please read this information before using your ceramic hob. Electrical Shock Hazard Installation • Do not cook on a broken or cracked ceramic hob. If the ceramic hob surface should break or crack, Electrical Shock Hazard switch the appliance off immediately at the mains • Disconnect the appliance from the mains... - Page 16 Important Safety Instructions • Do not stand on your ceramic hob. • Never leave the appliance unattended when in use. • Do not use pans with jagged edges or drag pans Boilover causes smoking and greasy spillovers that across the ceramic glass surface as this can scratch may ignite.
- Page 17 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Bracket 303207800067 GB818 / M4*10-PFH Screw 301500101084 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.
- Page 18 LCPCKX11_Hob_IB_final110413.indd 18 13/04/2011 11:05 AM...
- Page 19 LCPCKX11_Hob_IB_final110413.indd 19 13/04/2011 11:05 AM...
- Page 20 LCPCKX11_Hob_IB_final110413.indd 20 13/04/2011 11:05 AM...
