Summary of Contents for Logik LCHOBTC10

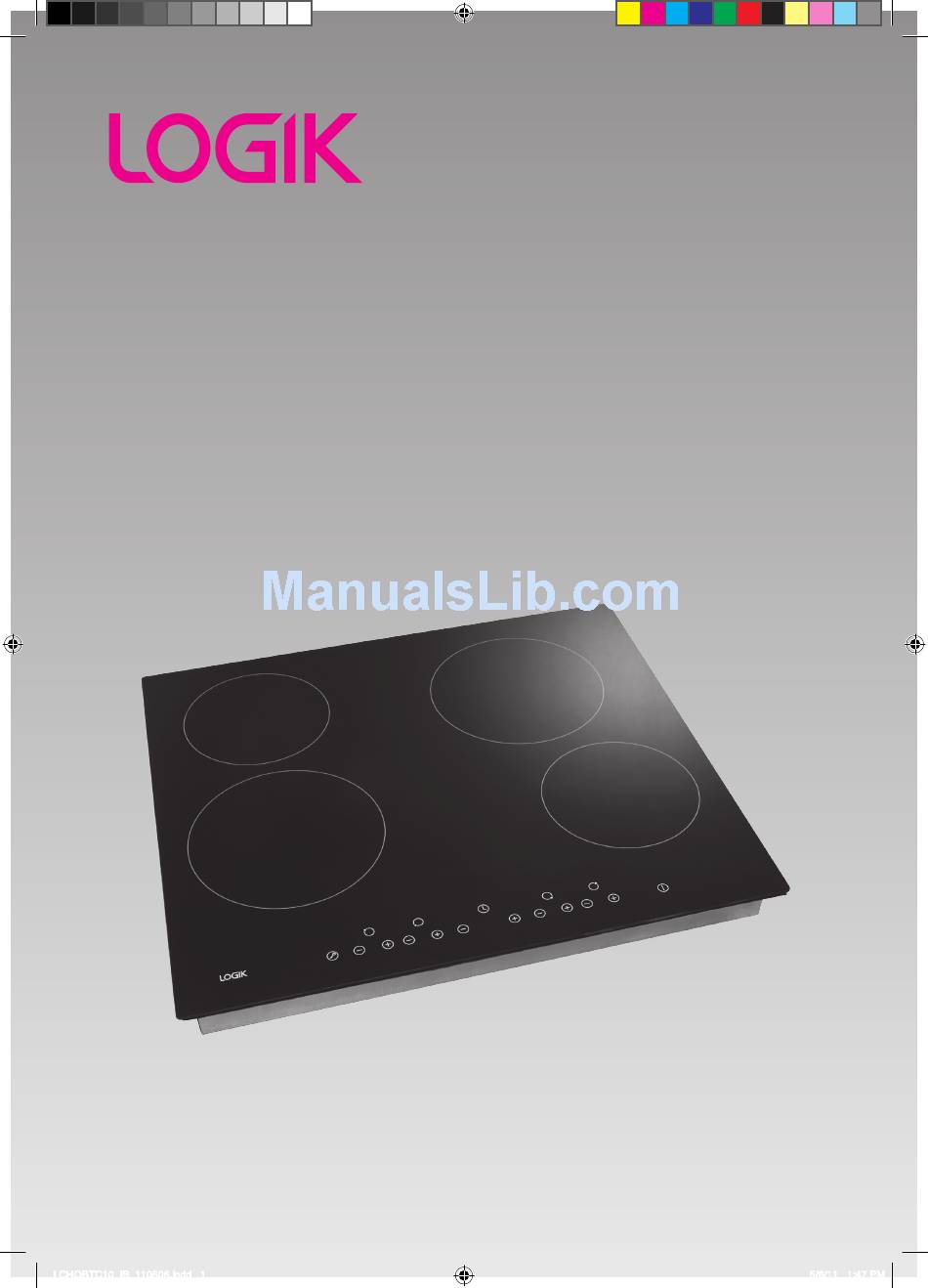

- Page 1 Built-in Ceramic Hob Instruction / Installation Manual LCHOBTC10 LCHOBTC10_IB_110506.indd 1 5/6/11 1:47 PM...
- Page 2 LCHOBTC10_IB_110506.indd 2 5/6/11 1:47 PM...
-
Page 3: Table Of Contents
Contents Unpacking ............................. 4 Product Overview ......................... 5 Top View ..................................5 Control Panel ................................5 Before Using Your New Ceramic Hob ..................6 Choosing the Right Cookware ..................... 6 Using the Touch Controls ......................7 Using Your Ceramic Hob ....................... 7 To Start Cooking ...............................7 When You Have Finished Cooking ........................8 Locking the Controls ...............................8... -
Page 4: Unpacking
Thank you for purchasing your new Logik Built-in Ceramic Hob. We recommend that you spend some time to read this manual in order to fully understand how to install and operate it correctly. Read all the safety warnigs carefully before use and keep this manual for future reference. -
Page 5: Product Overview

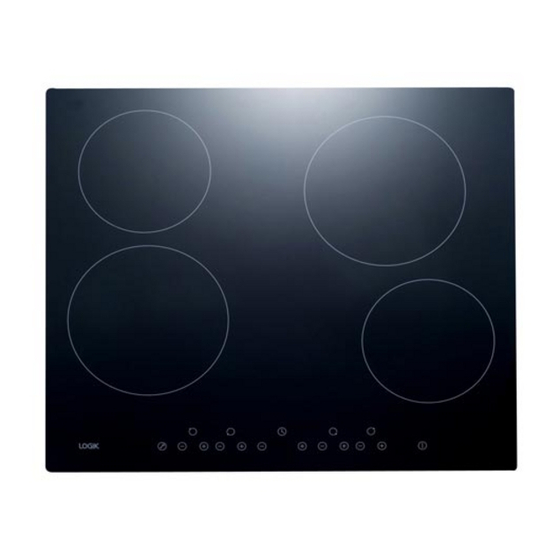

Product Overview Top View Max. 1200 W Zone Max. 1800 W Zone Max. 1200 W Zone Max. 1800 W Zone Glass Plate ON / OFF Control Panel Control Panel On/Off Control Power Regulating Controls Keylock Control Timer LCHOBTC10_IB_110506.indd 5 5/6/11 1:47 PM... -
Page 6: Before Using Your New Ceramic Hob
Before Using Your New Ceramic Hob • Read this guide, taking special note of the ‘Safety Warnings’ section. • Remove any protective film that may still be on your ceramic hob. Choosing the Right Cookware Do not use cookware with jagged edges or a curved base. Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. -
Page 7: Using The Touch Controls
Using the Touch Controls • The controls respond to touch, so you don’t need to apply any pressure. • Use the ball of your finger. • You will hear an audible tone each time a touch is registered. • Make sure the controls are always clean, dry, and that there is no object (e.g. an utensil or a cloth) covering them. -
Page 8: When You Have Finished Cooking
When You Have Finished Cooking Turn the cooking zone off by scrolling down to – or touching controls together. Make sure the display shows – . Or, turn the whole cooktop off by touching the ON/OFF control. Beware of hot surfaces will display to show which cooking zone is hot to touch. -
Page 9: Over-Temperature Protection
Over-Temperature Protection A temperature sensor monitors the temperature inside the ceramic hob. When an excessive temperature is monitored, the ceramic hob will stop operation automatically. Residual Heat Warning When the hob has been operating for some time,there will be some residual heat. The letter “ ”appears to warn you to keep away from it. -
Page 10: Setting The Timer To Turn Cooking Zones Off
Set the time by touching the controls of the timer. • Touch the controls of the timer once to increase or decrease by 1 minute. • Touch and hold the control of the timer to increase or decrease by 10 minute. • If the setting time exceeds 99 minutes, the timer will automatically return to –... - Page 11 While the power level indicator is flashing, set the time by touching the controls of the timer. • Touch the controls of the timer once to increase or decrease by 1 minute. • Touch and hold the controls of the timer to increase or decrease by 10 minutes.
-
Page 12: Cooking Guidelines
Cooking Guidelines Take care when frying as oil and fat heat up very quickly. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk. Cooking Tips • When food comes to the boil, reduce the temperature setting. • Using a lid will reduce cooking times and save energy by retaining the heat. -
Page 13: Heat Settings
Heat Settings The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the ceramic hob to find the settings that best suits you. Heat setting Heat setting Suitability 1 - 2... -
Page 14: Cleaning And Maintenance
Cleaning and Maintenance What? How? Important! Everyday soiling on Switch the power to the ceramic • When the power to the ceramic hob glass (fingerprints, hob off. is switched off, there will be no ‘hot marks, stains left by surface’ indication but the cooking Apply a ceramic hob cleaner while food or non-sugary zone may still be hot! -
Page 15: Hints And Tips
. Unsuitable, abrasive scourer or See ‘Care and cleaning’ . cleaning products being used. Specification Model LCHOBTC10 Rated Voltage 230 – 240V~ Rated Frequency 50 Hz Overall Dimension (W x D X H) 590 (W) × 520(D) × 55(H) (in mm) Power Consumption 6000 –... -
Page 16: Installation
Installation Preparing the Worktop Cut out the work surface following the dimensions shown in the drawing below. For the purpose of installation and use, a minimum distance of 5cm space must be left around the cut out. Be sure the thickness of the work surface is at least 20mm. Use a heat-resistant work surface material to avoid deformation caused by the heat from the hob. -
Page 17: Fastening The Fixing Brackets
Fastening the Fixing Brackets The unit should be placed on a stable, smooth surface (use the packaging). Turn the hob upside down, place it on a soft surface and fasten the brackets to the appropriate holes. DO NOT tighten the screws at this stage. Apply sealing strips around the edge of the hob. - Page 18 The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker the method of connection is shown below. 3 × 6 mm / 3 × 2.5 mm • This appliance must be earthed. • For this connection a power lead of wire type H05VV-F should be used.
-
Page 19: Safety Warnings
Safety Warnings Your safety is important to us. Please read this Operation and Maintenance information before using your ceramic hob. Electrical Shock Hazard Installation • Do not cook on a broken or cracked ceramic hob. If the ceramic hob surface should break or crack, Electrical Shock Hazard switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified... - Page 20 Important safety instructions • Do not use pans with jagged edges or drag pans across the ceramic glass surface as this can scratch • Never leave the appliance unattended when in use. the glass. Boilover causes smoking and greasy spillovers that may ignite.
- Page 21 There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd. • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England (P.N.: LCHOBTC10-005) LCHOBTC10_IB_110506.indd 21 5/6/11 1:48 PM...
- Page 22 LCHOBTC10_IB_110506.indd 22 5/6/11 1:48 PM...
- Page 23 LCHOBTC10_IB_110506.indd 23 5/6/11 1:48 PM...
- Page 24 LCHOBTC10_IB_110506.indd 24 5/6/11 1:48 PM...
