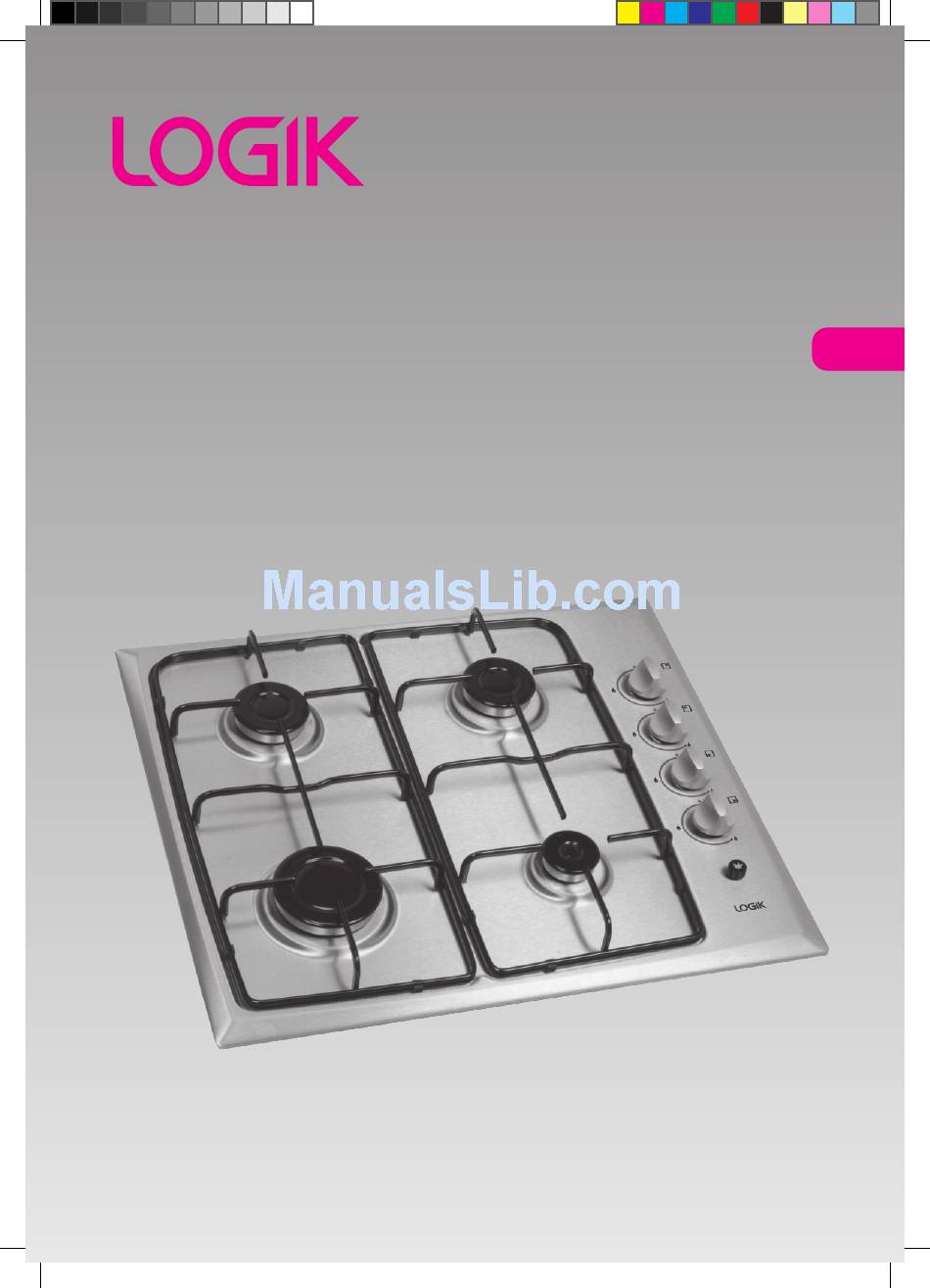

- Page 1 Built-in Gas Hob Instruction / Installation Manual LGHOBX10 LGHOBX10_Vestel_IB_110419_flo.indd 1 20/04/2011 4:02 PM...
- Page 2 LGHOBX10_Vestel_IB_110419_flo.indd 2 20/04/2011 4:02 PM...
-
Page 3: Table Of Contents
Contents Contents ............................3 Unpacking ............................. 4 Product Overview ......................... 5 The Main Unit ................................5 Control Panel ................................5 Before Using Your New Hob ......................6 Lighting the Hob ........................... 6 Flame Failure Safety Feature ....................... 7 If the Burner Does Not Light ......................7 If the Flame is Irregular ........................ -
Page 4: Unpacking
Thank you for purchasing your new Logik Built-in Gas Hob. You must read this manual in order to fully understand how to operate it correctly. This unit MUST be installed by a competent and registered engineer (Gas Safe in the UK). -
Page 5: Product Overview
Product Overview The Main Unit Standard burner (75 mm) Control panel Ignition button Large burner (100 mm) Small burner (55 mm) Control Panel To select upper right burner To select upper left burner To select lower left burner To select lower right burner LGHOBX10_Vestel_IB_110419_flo.indd 5 20/04/2011 4:02 PM... -
Page 6: Before Using Your New Hob
Before Using Your New Hob Before using your new hob, please: • Read this manual fully taking special note of the ‘Safety Warnings’ section. • Plug the hob into the electricity supply and turn it on so that the ignition circuit will work. This appliance is for cooking purposes only. -
Page 7: Flame Failure Safety Feature
Flame Failure Safety Feature The flame supervision device (FSD) probe cuts off the gas supply to the burner if the flame is blown out. When lighting the burner, hold down the control for approximately 5 – 10 seconds after the burner has lit. Releasing the control too soon will extinguish the flame. -
Page 8: Cookware Guidelines
Cookware Guidelines To get the best out of your hob, follow these simple suggestions: • Use saucepans with thick flat bottoms. Food in a saucepan with an uneven bottom will take longer to cook. • Do not use large saucepans or frying pans that overlap the edges of your hob as this can deflect heat onto your worktop and damage the surface. -
Page 9: Cleaning And Maintenance
Cleaning and Maintenance Steam Cleaners must not be used to clean this product. Cooking part Cleaning Important Trivets/pan supports, • Hot soapy water and nylon scourer. • Always allow hob parts to cool burner caps and enamel completely before cleaning them. • Mild abrasive cream cleaners. -
Page 10: Burner Parts And Pan Supports
Burner Parts and Pan Supports You can remove and clean these parts with hot soapy water or non-abrasive detergents. Clean spills regularly before they become burnt on. Do not wash these parts in a dishwasher. After cleaning, check that the burner rings and burner caps are dry before replacing correctly. It is very important to check that the burner rings and burner caps have been correctly positioned. -
Page 11: Hints And Tips
Hints and Tips Problem Possible Solutions My burner does not • Check the hob is plugged in and the electricity is switched on. light • Check the gas supply valve is turned on and the gas supply to the house is working. -
Page 12: Specification
Specification Model LGHOBX10 Rated Voltage (V) Rated Frequency (Hz) Power Consumption(W) Gas Type NG or LPG (Default set to NG) Net Weight (kg) Product Dimensions (cm) External Width External Depth Product Dimensions (cm) Internal Width Internal Depth Features and specifications are subject to change without prior notice. -
Page 13: Installation
Installation The hob must be installed by a Gas Safe Registered engineer in accordance with the Gas Safety (Installation and Use) Regulations and to the relevant standards. Please, ensure that, once the hob is installed, it is easily accessible for the engineer in the event of a breakdown. • Prior to installation, ensure that the local distribution conditions (nature of gas and pressure) and the adjustment of the product are compatible. -
Page 14: Provision For Ventilation
Provision for Ventilation • The room containing the appliance should have an air supply in accordance with the latest version of BS5440. • All rooms require a window that opens or equivalent, while some rooms require a permanent vent in addition to the window that opens. -
Page 15: When The Hob Is First Installed
When the Hob is First Installed Once the hob has been installed, it is important to remove any protective materials, which were put on in the factory. Any gas installation must be carried out by a Gas Safe Registered engineer. The manufacturer will not accept liability, should the above instructions or any of the other safety instructions incorporated in this manual are ignored. -
Page 16: Cut Out Dimensions
Cut Out Dimensions The dimensions of the cut-out are given in the diagram. Width: 560mm Depth: 490mm All measurements given in millimetres (mm) and cutout dimensions are given as: ‘nominal measurement’ Overall Dimensions Width: 580mm Depth: 510mm Fitting the Hob into the Worktop • Apply the adhesive sealing material “C”... -
Page 17: Conversion From Ng To Lpg Or From Lpg To Ng
Conversion from NG to LPG or from LPG to NG The replacement / conversion of the gas hob should only be undertaken by Gas Safe Registered Engineer. The hob is supplied for use with Natural Gas only and cannot be used on any other gas without modification. -
Page 18: Minimum Setting Or Turn Down
Minimum Setting or Turn Down This unit has been set at the factory for NG but can be checked after the correct pressure has been reached. To adjust the minimum setting you will need a Ø 2.5mm x 45mm screwdriver. Ignite the burner and set the control to its minimum position. -
Page 19: Gas Category
Gas Category BE, FR, IT, LU, IE, GB, GR, PT, ES, CY, CZ, LT, SK, CH, SI 3+(28~30/37) LU, NL, DK, FI, SE, CY, CZ, EE, LT, MT, SK, SI, BG, IS, NO, TR, HR, RO, IT, HU 38/P(30) 38/P(37) AT, DE, CH, SK 38/P(50) BE, FR... -
Page 20: Safety Warnings
Safety Warnings Important! Operation and Maintenance • Please make this information available to the Hot Surface Hazard person responsible for installing the product. • This appliance becomes hot during use. Do not • Read these instructions carefully before installing touch the hob components, burners, trivets/pan or using this product. - Page 21 • Do not use an asbestos mat or decorative covers between the flame and the saucepan as this may cause serious damage to your hob. • Do not place aluminium foil or plastic dishes on the hob burners. • Do not use large saucepans or frying pans that overlap the hob as this can deflect heat onto your worktop and damage the surface.
-
Page 22: Lpg Nozzle Installation Guide
If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Left 37002036 Pan Support Right 37002037 LPG Nozzle Installation Guide 52007667 LPG Replacement Rating Plate Sticker 20628175 Fixing Plate 37001970 Screw 37002652... - Page 23 LGHOBX10_Vestel_IB_110419_flo.indd 23 20/04/2011 4:02 PM...
- Page 24 LGHOBX10_Vestel_IB_110419_flo.indd 24 20/04/2011 4:02 PM...
