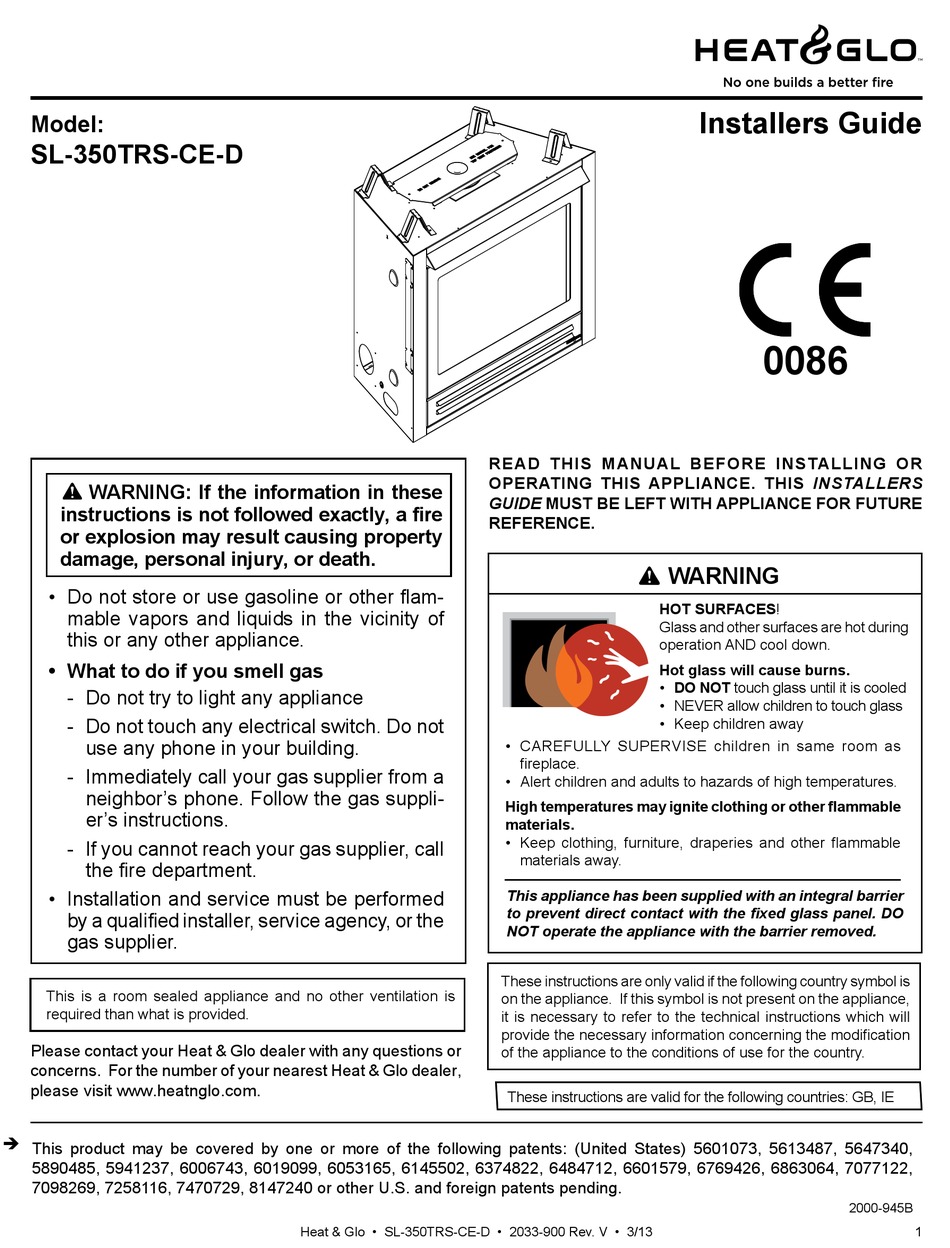

Model:
SL-350TRS-CE-D
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas
- Do not try to light any appliance
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from a
neighbor's phone. Follow the gas suppli-
er's instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
This is a room sealed appliance and no other ventilation is
required than what is provided.
Please contact your Heat & Glo dealer with any questions or
concerns. For the number of your nearest Heat & Glo dealer,
please visit www.heatnglo.com.
This product may be covered by one or more of the following patents: (United States) 5601073, 5613487, 5647340,
5890485, 5941237, 6006743, 6019099, 6053165, 6145502, 6374822, 6484712, 6601579, 6769426, 6863064, 7077122,
7098269, 7258116, 7470729, 8147240 or other U.S. and foreign patents pending.
Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT wITH APPLIANCE FOR FUTURE
REFERENCE.
wARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable
materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
These instructions are only valid if the following country symbol is
on the appliance. If this symbol is not present on the appliance,
it is necessary to refer to the technical instructions which will
provide the necessary information concerning the modification
of the appliance to the conditions of use for the country.
These instructions are valid for the following countries: GB, IE
Installers Guide
0086
2000-945B
1

Advertisement

Table of Contents
loading

Related Manuals for Heat & Glo SL-350TRS-CE-D

Summary of Contents for Heat & Glo SL-350TRS-CE-D

  • Page 1 This product may be covered by one or more of the following patents: (United States) 5601073, 5613487, 5647340, 5890485, 5941237, 6006743, 6019099, 6053165, 6145502, 6374822, 6484712, 6601579, 6769426, 6863064, 7077122, 7098269, 7258116, 7470729, 8147240 or other U.S. and foreign patents pending. 2000-945B Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 2: Safety And Warning Information

    Any safety screen or guard removed for servicing must be replaced before operating this appliance. This appliance is intended for use on a gas installation with a governed meter. Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 3: Table Of Contents

    After the Installation ..............40 Section 4: Maintaining and Servicing Your Fireplace ........ 41 Section 5: Troubleshooting ................43 Limited Lifetime Warranty ................46  = Contains updated information. Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 4: Service Parts List

    GLA-3504TRS SRV540-174 Hood Pre 00295123 540-382A Door Assembly Post 00295123 2033-020 Door Assembly, Lower Post 00295123 2033-042 Junction Box 546-250A Additional service part numbers appear on following page. 3/13 Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...
  • Page 5 15.8 Valve P 060-526 15.9 Flex Ball Valve Assembly 531-320A 529-169 No longer available 15.10 Valve Bracket 2118-104 Post Sept 2007 Additional service part numbers appear on following page. Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...
  • Page 6 Conversion Kit N NGK-350TRSCE-D Conversion Kit P LPK-350TRSCE-D Conversion Kit B BGK-350TRSCE-D Pilot Orifi ce N 529-512 Pilot Orifi ce P/ B 200-2630 Regulator N 230-1570 Regulator P/B 230-1520 Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 7: Section 1: Approvals And Regulations

    This appliance must be installed with the rules in force, and used only in a sufficiently ventilated space. Consult instructions before installation and use of this appliance. Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 8: Section 2: Getting Started

    Heat & Glo Fireplace Products, Inc., not withstanding any independent testing laboratory or other party approval of such component part or accessory. aNy such acTiON may pOssibly cause a fire haZarD. Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...
  • Page 9 15.3 cm 17.4 cm TOP STANDOFFS TOP HEAT SHIELD (FLUE COLLAR COVER PLATE) HOOD RATING PLATE/LABELS BOTTOM GRILLE COVER ACCESS CONTROLS ELECTRICAL ACCESS Figure 1. Diagram of the SL-350TRS-CE Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 10: Section 3: Installing The Fireplace

    Minimum Clearances from the Fireplace to Combustible Materials Glass back of sides of Top of Floor ceiling Front Fireplace Fireplace Fireplace 91.4 cm 1.3 cm 1.3 cm 8.9 cm 79 cm Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 11: Step 2 Framing The Fireplace

    Framing should be constructed of 2 X 4 lumber or heavier. 86.4 cm 83.2 cm 41.3 cm 105.4 cm 54.2 cm Figure 4. Framing Dimensions Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 12: Step 3 Installing The Flue System

    SUPPORT PIPE LENGTH WALL FIRESTOP 90 DEGREE ELBOW CEILING WALL BRACKET FIRESTOP Flue system termination kits DVP-SERIES SLP SERIES DVP-TVHW DVP-TRAP SLP-TVHW SLP-TRAP2 Figure 5. Flue Components and Terminations Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...
  • Page 13 31.9 cm NOTE: PIPES OVERLAP 32 mm AT EACH JOINT. Figure 6. DVP SERIES Balanced Flue Component Specifications (12.7 cm inner flue pipe / 20.3 cm outer flue pipe) Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...
  • Page 14 33.7 cm SLP48 SLP12 SLP36 SLP24 Note: Pipes overlap 3.5 cm at each joint. Figure 7. SLP Series Flue Component Specifications (10.2 cm inner flue pipe/16.8 cm outer flue pipe) Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...
  • Page 15 USE SLP SERIES COMPONENTS ONLY. Figure 8. Straight up vertical Flue STRAIGHT OUT HORIZONTAL FLUE Max. Run 61 cm USE DvP SERIES COMPONENTS ONLY. Figure 9. Straight Out Horizontal Flue Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...
  • Page 16 V + H = MAX 11.6 m H = MAX. 4.57 m NOTE: A 23 cm vertical section must be attached to the unit before the 90º elbow. Figure 11. Flue with One 90° Elbow Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...
  • Page 17 MIN. 1.22 m MAX. 2.48 m H + H = MAX. 2.48 m V + H + H = 11.6 m MAX. Figure 12. Flue with Two 90° Elbows Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...
  • Page 18 MAX. 2.48 m MIN. 1.52 m MAX. 4.8 m H = MAX. 4.8 m V + V + H = MAX. 11.6 m Figure 13. Flue with Two 90° Elbows Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...
  • Page 19 + H + H = 11.6 m MAX. H = MAX 2.48 m H + H = MAX. 4.8 m USE DvP SERIES COMPONENTS ONLY. Figure 14. Flue with three 90° elbows Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...
  • Page 20 MAX. 4.8 m v + v + H + H = 11.6m MAX. H = MAX 2.48m H + H = MAX. 4.8m Figure 15. Flue with three 90° elbows Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 21: Appliance Preparation

    FIRE RISK DO NOT REMOvE HEAT SHIELD. ELEvATED HEADER TEM- PERATURES MAY CAUSE A FIRE. Figure 20. Remove the insulation basket and white insula- tion from the center flue pipe. Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...
  • Page 22 Use two self- Figure 23. Remove the insulation from the outer flue tapping screws to secure gasket to outer wrap. pipe. Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 23: Flue Pipe Clearances To Combustibles

    Materials shield is necessary. If your local inspector requires the wall shield firestop on both sides, then both wall shield firestops must have a heat shield attached to them. Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 24: Vertical Penetration Framing

    OUTWARD TO FASTEN TO CEILING flue pipe, and to maintain air space clearance. FIRESTOP-BEND REMAINING TABS INWARD 90 DEGREES TO MAINTAIN CLEARANCE Figure 32. Attic Insulation Shield Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 25: Assemble Flue Pipe Sections (Dvp Pipe Only)

    Use screws no longer than 13 mm. If predrilling screw holes, DO NOT penetrate inner pipe. INCORRECT Figure 36 Seams Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 26: Assemble Flue Pipe Sections (Slp Pipe Only)

    • Only outer pipes are sealed, sealing the inner flue is not then rotate counterclockwise to lock required. Figure 37 Adding venting Components • All unit collar, pipe, slip section, elbow and cap outer flues shall be sealed. Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 27: Securing The Flue Pipe Sections (Dvp And Slp Pipe)

    Use flue pipe run supports and connect flue pipe sections per installation instructions. DO NOT allow flue pipe to sag below connection point to appliance. Figure 40 Securing vertical Pipe Sections Figure 41 Securing Horizontal Pipe Sections Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 28: Installing Metal Roof Flashing

    39.8°-42.5° ............0.99 42.5°-45.0° ............1.22 45.0°-49.4° ............1.52 49.4°-53.1° ............1.83 53.1°-56.3° ............2.13 56.3°-59.0° ............2.29 59.0°-60.3° ............2.44 *.91 M minimum in snow regions Figure 42 Minimum Height From Roof To Lowest Discharge Opening Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 29: Installing Vertical Termination Cap

    • Caulk around the top of the storm collar (see Figure 44). (1 of 3) STORM COLLAR SCREwS CAULK Figure 44 Figure 45 Assembling the Storm Collar Figure 46 Assembling the Storm Collar Around the Pipe Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 30: Heat Shield Requirements For Horizontal Termination

    • Flash and seal as appropriate for siding material at outside edges of cap. cauTiON! risk of burns! Local codes may require in- stallation of a cap shield to prevent anything or anyone from touching the hot cap. Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...
  • Page 31 Figure 48 Termination Caps Minimum Clearances cauTiON: IF EXTERIOR WALLS ARE FINISHED WITH VINYL SIDING, IT IS SUGGESTED THAT A VINYL PROTECTOR KIT BE INSTALLED. Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 32: Step

    230 vAC MUST NEvER BE CONNECTED TO A CONTROL vALvE IN A MILLIvOLT SYSTEM. STANDING PILOT Figure 50. Gas Control System Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 33: The Gas Supply Line

    • Insert insulation from the outside of the fireplace and pack the insulation tightly to totally seal between the pipe and the outer casing. The gas line should be installed by a qualified service technician. ACCESS Figure 51 Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 34: Gas Pressure Requirements

    Position the wall switch in the desired position on a wall. Run a maximum of 780 cm or less length of 0.102 cm diameter minimum wire and connect it to the fireplace ON/OFF switch pigtails. Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 35: Step 9 Finishing

    Figure 53. Minimum Vertical and Maximum Horizontal Dimensions of Combustibles above Fireplace wARNING: wHEN FINISHING THE FIRE- PLACE, NEVER OBSTRUCT OR MODIFY THE AIR INLET/OUTLET GRILLES IN ANY MANNER. Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 36: Installing Trim, Logs & Ember Material

    SURFACES ON THESE HEATERS. wORKING SURFACES INCLUDE ALL GLASS PANELS AND DECORATIvE DOORS. YOUNG CHILDREN SHOULD BE CAREFULLY SUPERvISED wHEN THEY ARE IN THE SAME ROOM AS THE AP- PLIANCE. Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 37: Positioning The Logs

    LOG #2 (SRV2033-701): Locate the bottom groove of log #2 over the left most grate bar and align over the burner by placing the log slot over the burner tab as shown. Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...
  • Page 38 LOG #4 (SRV530-716): Place the left end of log #4 in the groove on log #2 and the right end on log #1 as shown. LOG #5 (SRV438-724): Locate the top of log #5 onto log #1 and place the bottom on the right side of the fourth log grate. Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 39: Placing The Ember Material

    • Replace the glass door and a front trim door on the unit (see Replacement Parts Section of the manual.) • Replace the latches and tension springs. DO NOT PLACE EMBERS BEHIND THE REAR BURNER PORTS Figure 56. Placement of the Ember Material Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 40: Step 11 Before Lighting The Fireplace

    USER’S MANUAL FOR ALL CAUTIONS, SAFETY, AND WARNING INFORMATION PERTAINING TO THE LIGHTING AND OPERATION OF THE FIREPLACE. After the LEAvE THIS INSTALLATION MANUAL wITH Installation THE APPLIANCE FOR FUTURE REFERENCE. Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 41: Section 4: Maintaining And Servicing Your Fireplace

    NOTE: DO NOT handle or attempt to clean the door when it is hot and DO NOT use abrasive cleaners. Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...
  • Page 42 MAKE SURE THE FLAMES ARE STEADY—NOT LIFTING OR FLOATING. Figure 57. Burner Flame Patterns STANDING PILOT Figure 58. Pilot Flame Patterns Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 43: Section 5: Troubleshooting

    Be sure the wire connections from the thermopile at the gas valve terminals are tight and that the thermopile is fully inserted into the pilot bracket. Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...
  • Page 44 Clean and adjust the pilot flame for maximum outage problem. flame impingement on thermocouple. high or too low, or blowing Follow lighting instructions carefully. (high), causing pilot safety to drop out Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...
  • Page 45 Ensure that the glass is tightened properly on the unit, particularly on top corners. Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...

  • Page 46: Limited Lifetime Warranty

    3 years Firebox and heat exchanger Lifetime All replacement parts 90 Days beyond warranty period See conditions, exclusions, and limitations on next page. 4021-645C 12-29-10 Page 1 of 2 Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...
  • Page 47 THE EXTENT PROVIDED BY LAW, HHT MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY SPECIFIED HEREIN. THE DURATION OF ANY IMPLIED WARRANTY IS LIMITED TO DURATION OF THE EXPRESSED WARRANTY SPECIFIED ABOVE. 4021-645C 12-29-10 Page 2 of 2 Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13...
