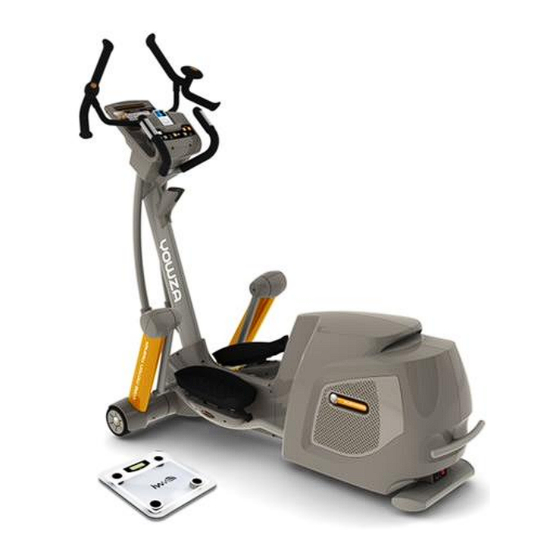

- Page 1 Express Assembly Guide Use this Guide for the following Yowza Models: Islamorada...
- Page 2 STEP 1, YOWZA EXPRESS ASSEMBLY GUIDE CU T CU T CU T 1.1 Place the unit in the room where you will exercise, then cut straps and bottom of carton all the way around. 1.2 Lift carton from the pallet and discard plastic wrap. Remove all components*** from the interior of box.
- Page 3 STEP 2, YOWZA EXPRESS ASSEMBLY GUIDE 2.1 Attach Incline Frame Lower Cover (341, 342) to the incline frame. Carefully snap pieces together using plastic guides then secure with Cone Point Screw (408). TIP: Using a magnetic screwdriver will be beneficial when...
- Page 4 STEP 3, YOWZA EXPRESS ASSEMBLY GUIDE 3.1 Remove Undercarriage Covers (704, 705) by lifting pedal assembly. Be careful when handling these covers to avoid snapping plastic push pins. Make sure Rear Incline Frame Holder (206) is securely fastened to Main Frame (112).
- Page 5 STEP 4, YOWZA EXPRESS ASSEMBLY GUIDE 4.1 Attach incline frame set to main frame. Secure Incline Frame Holder-Front (708) to Incline Frame (109) using Allen Head CAP Bolts (511) and Spring Washer (517). *** Don’t fully tighten Cap Bolts (511) until step 4.2.
- Page 6 STEP 5, YOWZA EXPRESS ASSEMBLY GUIDE 5.1 Attach Console Support Tube (101) to the main frame and secure with four M8x20mm Allen Head Cap Bolts (504). Connect 8 pin Power Wire Upper (601) to Power Wire Lower (602).
- Page 7 STEP 6, YOWZA EXPRESS ASSEMBLY GUIDE 6.1 Attach the Undercarriage Cover (704,705) to the main frame by lifting pedal arm and securing with Flat Point Screw (506), Screw (509), Screw (510) 6.2 Attach Incline Frame Front Cover (703) to incline frame and...
- Page 8 STEP 7, YOWZA EXPRESS ASSEMBLY GUIDE 7.1 Slide Bolt (505) through Wave Washer (521), Pedal Arm and Pedal wing Arm (108) then secure with 8mm Allen Key. 7.2 Insert Back Out Screw (516) into the Pedal Swing Arm (108) using the 2.5mm Allen Key and fully tighten.
- Page 9 STEP 8, YOWZA EXPRESS ASSEMBLY GUIDE 8.1 Connect Action Arms (118,119) to the moving linkage and secure using Bolt (502) and Bolt (503) with 6mm Allen Key. *** Do not over tighten these bolts, as over tightening will result in friction related sounds 8.2 Assemble the Action Handlebar Lower Cover (701) to the action...
- Page 10 STEP 9, YOWZA EXPRESS ASSEMBLY GUIDE 9.1 Install the moving handlebar, and then tighten Allen Head Bolt (514) to lock the moving handlebar on the console. 9.2 Tighten the Allen Head Bolts (514) with 5mm Allen Key. 514 X6...
- Page 11 STEP 10, YOWZA EXPRESS ASSEMBLY GUIDE 10.1 Connect Button Board Connection Wire (631) and make sure to insert correctly. *** Make sure connection wire doesn’t get between handlebar gears! 10.2 Attach Button Control Panel (A1) and secure with Screw (510).
- Page 12 STEP 11, YOWZA EXPRESS ASSEMBLY GUIDE 11.1 Attach the Water Bottle Holder (709) and secure with Cone Point Screw (501) and Washer (518) YOUR CROSS TRAINER IS NOW ASSEMBLED...
