- Page 1 AT-3400/CT-3400/3500 Travel Series Tripod You’re on steady ground ™...

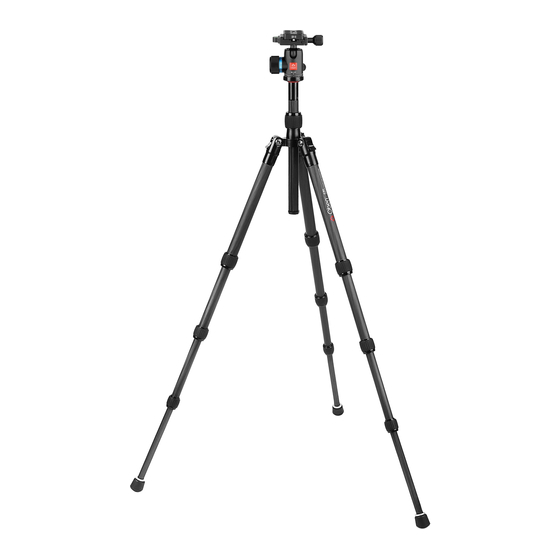

- Page 2 IntroductIon Thank You for choosing Oben! This sturdy and versatile Oben AT-3400/CT- 3400/3500 Travel Series folding tripod/monopod will deliver rock-solid support for your camera for years to come. The legs fold 180° for a more compact shape for transport and storage.
-
Page 3: Table Of Contents
tABLE oF contEntS Key Features Ballhead Operation Leg Length Adjustment Leg Angle Adjustment Center Column Adjustment Low-Angle Setup Folding Legs Counterweight Spiked Feet Integrated Monopod Warnings... - Page 4 KEY FEAturES...
-
Page 5: Key Features
KEY FEAturES Dual 3/8” and 1/4”-20 head mounting screw Short split-column Center column twist lock Leg angle adjustment lock Integrated Monopod Grooved reversible center column Retractable and removable weight hook 180° folding legs Twist-style leg lock levers All-terrain feet... -
Page 6: Ballhead Operation
oPErAtIon oPErAtIon 1. Ballhead Operation Refer to the included Ballhead Instruction Manual. 2. Leg Length Adjustment A twist-lock design allows you to quickly change the height of each telescopic tripod leg. To adjust the height of a leg, turn the twist-lock 3/4 of a turn counterclockwise to loosen it, position the leg at the desired height, and turn the... -
Page 7: Center Column Adjustment
oPErAtIon oPErAtIon 4. Center Column Adjustment The sliding center column can be used to adjust the height of the camera. Fully extending the center column after the legs have been fully extended will place the camera at the highest position possible with this tripod. - Page 8 oPErAtIon 5. Low-Angle Setup (continued) 2. Turn the center column twist lock counterclockwise to unlock the center column. Remove the center column from the tripod. 3. Reverse the center column and insert it up through the bottom of the tripod top plate. 4.Slide the center column into the desired position.
-
Page 9: Folding Legs
oPErAtIon 4. Put the main column aside. Tighten the Allen screw with the Allen wrench so that the screw is flush with the surface of the center column. Insert the short column into the tripod and adjust to the height you desire. -
Page 10: Spiked Feet
oPErAtIon 8. Spiked Feet Two styles of spiked feet are used for this series of tripods. In each case, the rubber non-skid feet are for use indoors or on flat surfaces, while the spikes are for soft ground, grass, sand, and uneven terrain. -
Page 11: Warnings
AccESSorIES • TS-110 Deluxe Padded Neoprene Tripod Strap with zippered pocket • TS-100 Padded Neoprene Tripod Strap Visit our website at ObenSupports.com for more Oben products. - Page 12 www.obensupports.com...
