Zephyr AK7000AS Use, Care And Installation Manual page 12

For dual blower installation instructions please refer to
page 13.

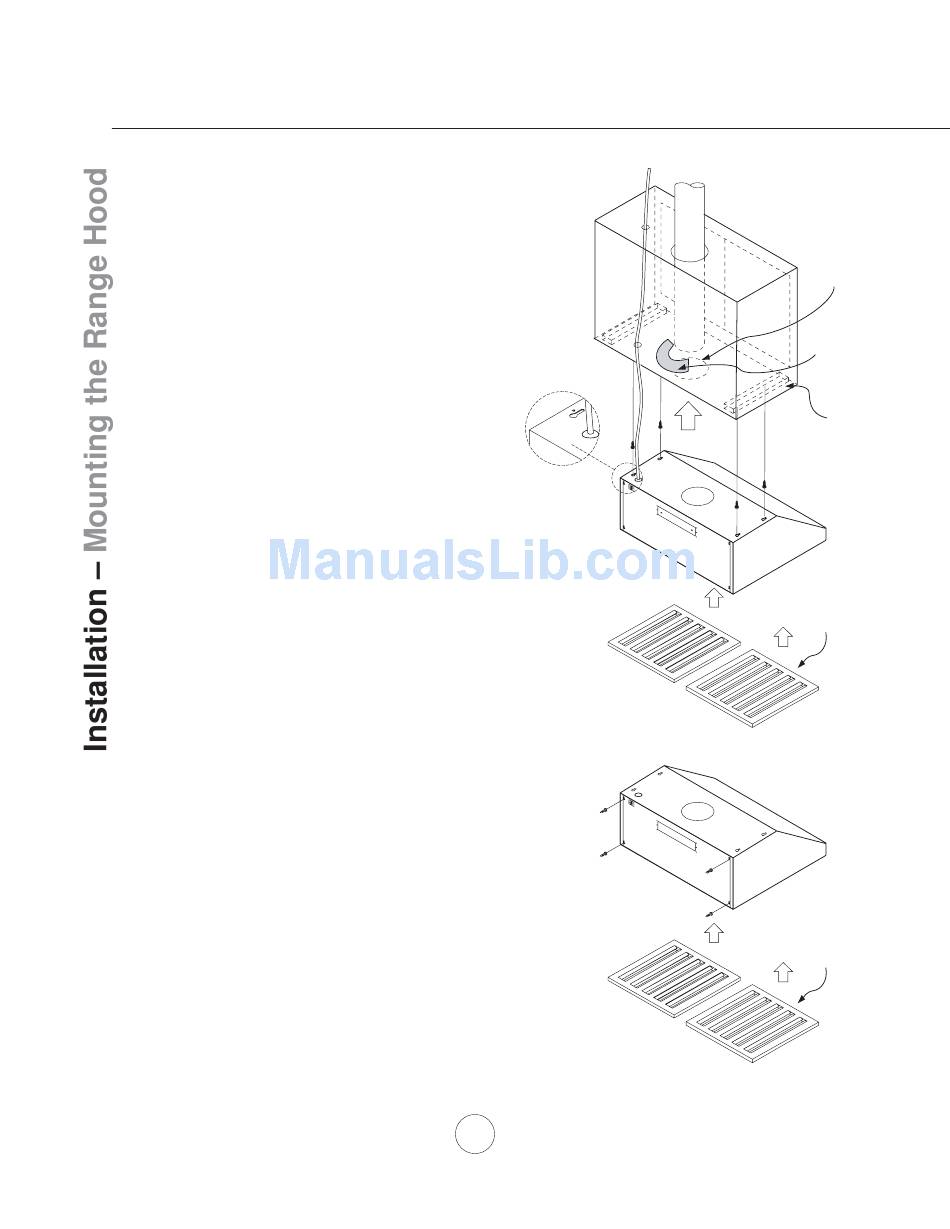

For Mounting Under a Kitchen Cabinet
1. Select preferred duct location (vertical or horizontal).
2. Begin installation by removing the baf e lters.
3. Reinforce cabinet with 1"x2" wood strips if additional
strengthening is required or if cabinets are framed.
4. Temporarily position the range hood in the desired
mounting location. Measure and mark the mounting
holes, duct and electrical locations with a pencil.
NOTE: If using single internal blower a 6" round duct
opening is necessary. If using a dual internal blower,
please refer to page 14 for cut-out dimensions.
5. Drill/cut out the required openings for duct and
electrical access; make sure the duct opening is large
enough to apply duct tape.
6. Fasten hood onto cabinet with (4) M4 wood screws
provided.
7. Install electrical.
8. Install duct work and duct tape.
9. Reinstall baf e lters.
10. Power up hood and check for leaks around duct tape.
For Mounting to a Wall
1. Select preferred duct location (vertical or horizontal).
2. Begin installation by removing the baf e lters.
3. Temporarily position the range hood in the desired
mounting location. Measure and mark the mounting
holes, duct and electrical locations with a pencil.
4. Drill/cut out required openings.
5. Fasten hood onto wall with screws provided.
6. Install electrical.
7. Install duct work and duct tape.
8. Reinstall baf e lters.
9. Power up hood and check for leaks around duct tape.
