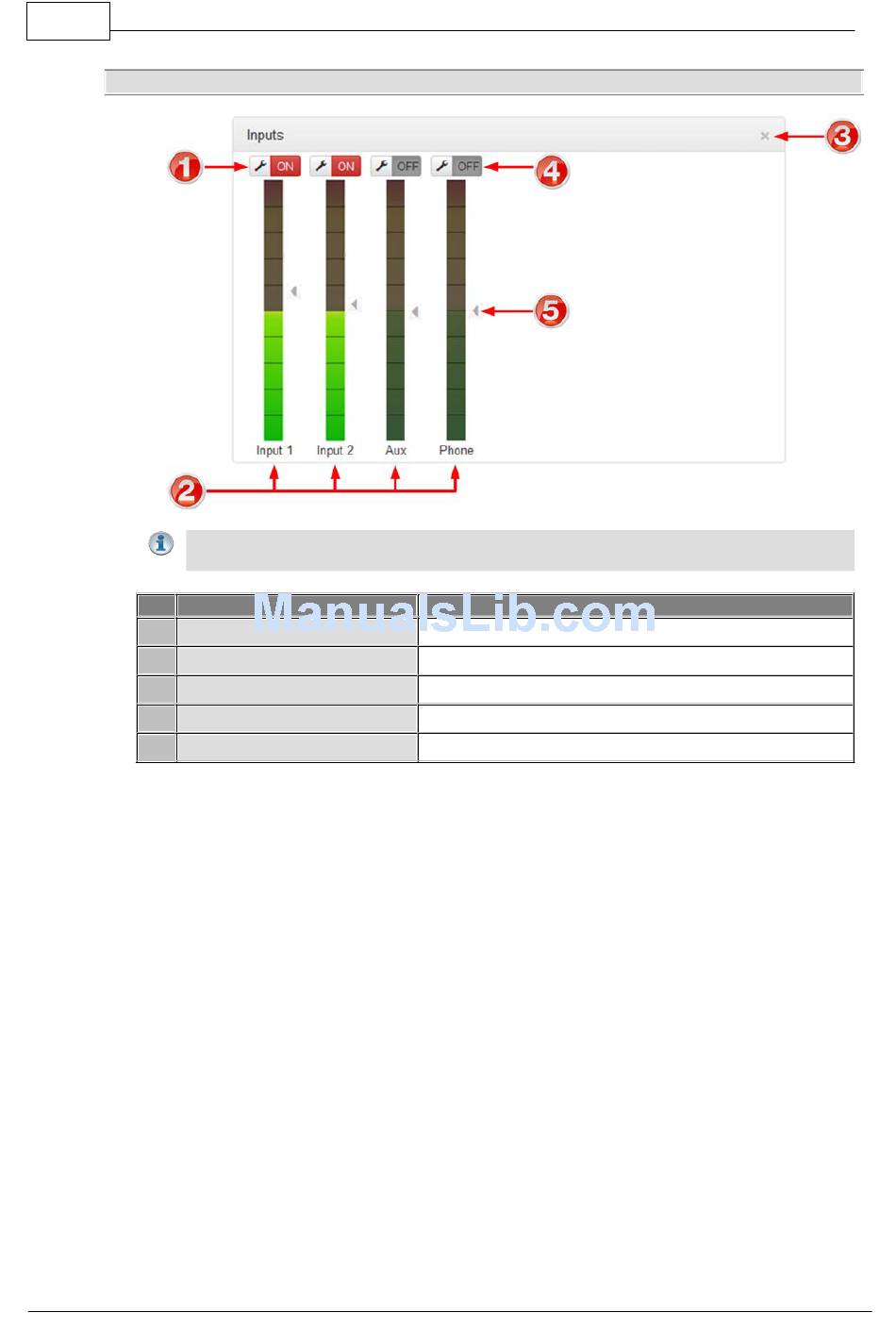

Inputs Panel for Input Adjustments
Important Note: Tieline codecs have different input configurations, therefore the image
shown may not reflect the number of inputs displayed in your codec Web-GUI.
Feature
1
Settings button
2
Input PPM meter
3
Close button
4
On/Off button
5
Input Sliders/Faders
Description
Click to adjust input Name, Type and IGC.
Input PPM meter.
Click to close the panel.
Click to toggle an input on or off.
Input gain control sliders/faders.
