162 Merlin User Manual v1.5

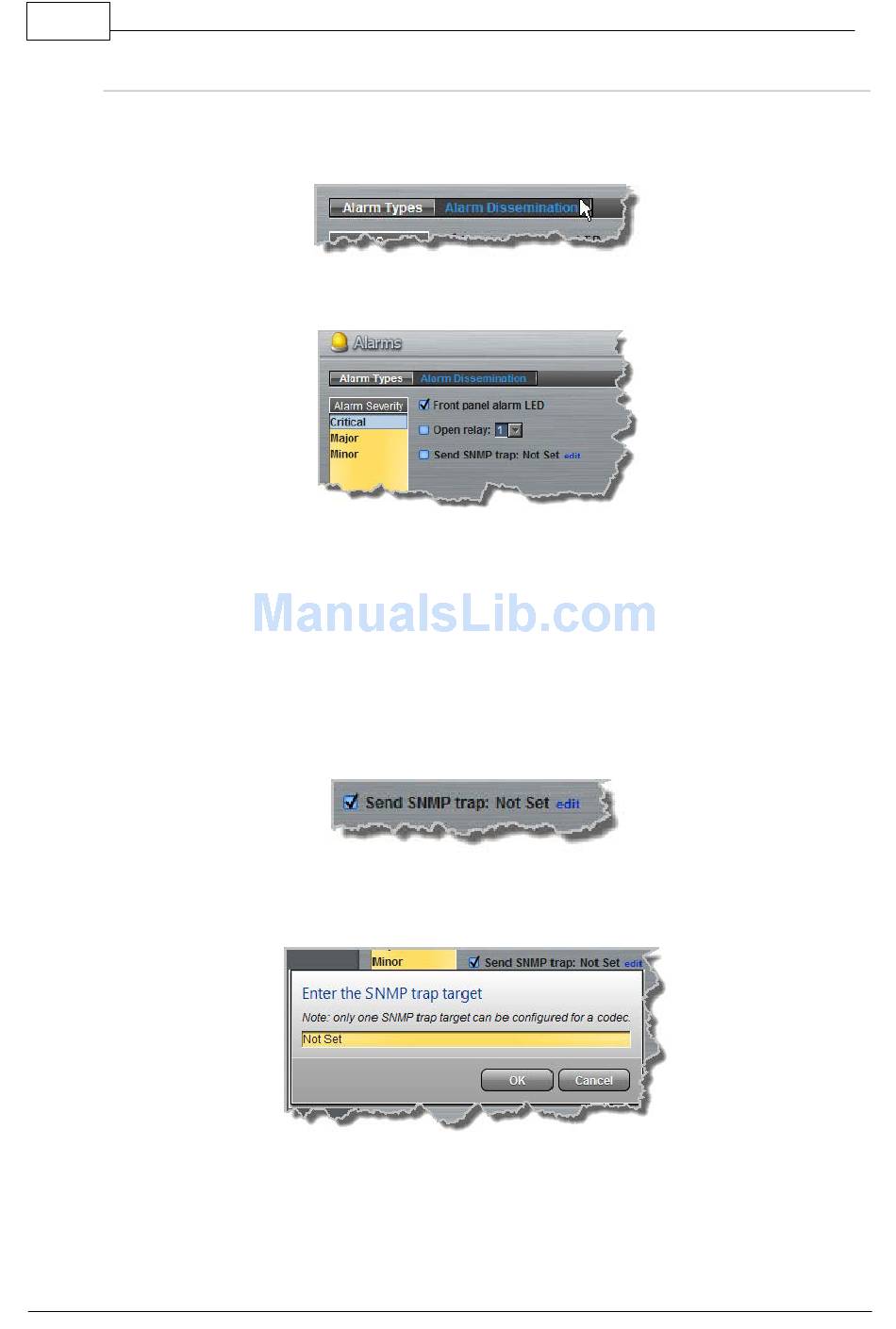

Configuring Alarm Dissemination Severity Alerts
Alerts for each alarm severity level are configured using the Alarm Dissemination tab.
1. Click Alarm Dissemination.
2. Click to highlight the Alarm Severity level you want to configure, then select and configure
the alerts as required.
3. Click Apply or OK to save settings.
SNMP Trap Configuration
Simple Network Management Protocol (SNMP) is a protocol used to manage devices on IP
networks. SNMP provides the ability to send traps (notifications or alerts), which are packets
containing data relating to a system component. These packets are generated by agents on a
managed device and may be either statistic or status related. Please see your system
administrator if you require more information.
1. Click to select the Send SNMP trap check-box.
2. Click edit to open the Enter the SNMP trap target dialog and enter the SNMP trap
target, then click OK.
