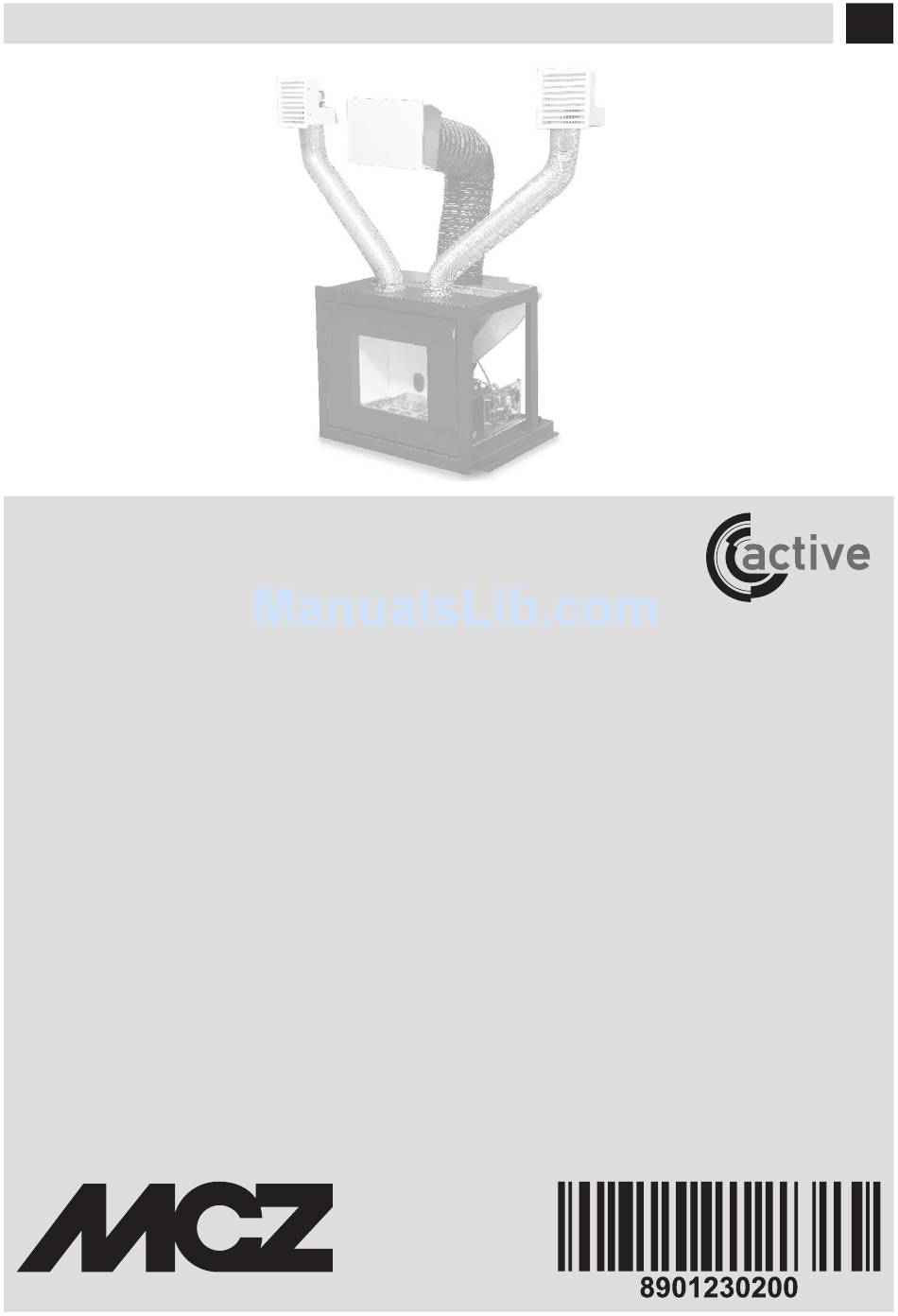

USE AND INSTALLATION MANUAL
MANUALE DI INSTALLAZIONE E UTILIZZO

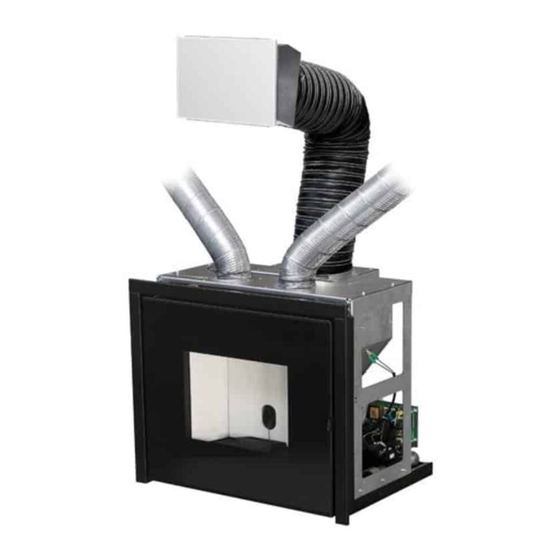

PELLET THERMO FIREPLACE
TERMOCAMINO A PELLET
VIVO 80 PELLET
VIVO 80 PELLET
COMFORT AIR SLIM MODEL
MODELLO COMFORT AIR SLIM
COMFORT AIR BASIC MODEL
MODELLO COMFORT AIR BASIC
Translation of the original instructions
GB
IT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIVO 80 PELLET and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MCZ VIVO 80 PELLET

Summary of Contents for MCZ VIVO 80 PELLET

  • Page 1 MANUALE DI INSTALLAZIONE E UTILIZZO USE AND INSTALLATION MANUAL TERMOCAMINO A PELLET PELLET THERMO FIREPLACE VIVO 80 PELLET VIVO 80 PELLET MODELLO COMFORT AIR SLIM COMFORT AIR SLIM MODEL MODELLO COMFORT AIR BASIC COMFORT AIR BASIC MODEL Translation of the original instructions...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ......................1 1 - WARNINGS AND WARRANTY CONDITIONS ..............2 2-INSTALLATION INSTRUCTIONS ..................5 3-INSTALLATION AND ASSEMBLY ..................14 4-OPERATION ......................27 5-LCD REMOTE CONTROL ....................29 6-EMERGENCY PANEL ....................34 7-SAFETY DEVICES AND ALARMS ...................37 8-MAINTENANCE AND CLEANING ..................41 9-PROBLEMS/CAUSES/SOLUTIONS ................47 10-WIRING DIAGRAMS ....................50...

  • Page 3: Introduction

    No part of this manual can be translated into another language and/or altered and/or reproduced, even partially, in another form, by mechanical or electronic means, photocopied, recorded or similar, without prior written approval from MCZ Group Spa. The company reserves the right to make changes to the product at any time without prior notice. The proprietary company reserves its rights according to the law.

  • Page 4: Warnings And Warranty Conditions

    1 - WARNINGS AND WARRANTY CONDITIONS SAFETY PRECAUTIONS • Installation, electrical connection, functional verification and maintenance must only be performed by qualified or authorised personnel. • Install the product in accordance with all the local and national laws and Standards applicable in the relative place, region or country.
  • Page 5 1 - WARNINGS AND WARRANTY CONDITIONS INFORMATION: Please contact the retailer or qualified personnel authorised by the company to resolve a problem. • only fuel stipulated by the company must be used. • Check and clean the smoke outlet pipes regularly (connection with the product). •...
  • Page 6 1 - WARNINGS AND WARRANTY CONDITIONS INTERVENTION REQUEST The company declines all liability if the product and any other accessory is used incorrectly or altered without authorisation. All parts must be replaced with original spare parts. The request must be sent to the retailer who will forward it to the Technical Assistance Department. SPARE PARTS Only original spare parts must be used.

  • Page 7: 2-Installation Instructions

    2-INSTALLATION INSTRUCTIONS The requirements in this chapter refer to the regulations of the Italian installation Standard UNI 10683. In any case, always comply with the regulations in force in the country of installation PELLETS Wood pellets are obtained from compressing sawdust produced during the processing of natural dried wood (without paint). The compactness of the material is guaranteed by the lignin contained in the wood itself and allows pellets to be produced without glue or binders.
  • Page 8 2-INSTALLATION INSTRUCTIONS PRECAUTIONS REGARDING INSTALLATION IMPORTANT! Product installation and assembly must be carried out by qualified personnel. The product must be installed in a suitable place for it to be regularly opened and routine maintenance to be performed. The site must be: •...
  • Page 9 • where another heating appliance is installed without an independent air flow. It is forbidden to place the product in an explosive atmosphere. MINIMUM DISTANCES VIVO 80 PELLET Non-flammable walls Flammable walls A = 20 mm A = 50 mm...
  • Page 10 2-INSTALLATION INSTRUCTIONS CONNECTION OF THE SMOKE EXHAUST DUCT When drilling the hole for the smoke exhaust pipe, the possible presence of flammable materials must be considered. If the hole must be made through a wooden wall or thermolabile material, the INSTALLER MUST first use the relative wall fitting (minimum diam. 13 cm) and adequately insulate the pipe of the product that passes through it, using suitable insulating material (1.3 - 5 cm thick with minimum thermal conductivity 0.07 W/m°K).
  • Page 11 2-INSTALLATION INSTRUCTIONS Always use pipes and fittings with appropriate seals that guarantee tightness. It must be possible to inspect all sections of the flue duct and they must be removable for periodic internal cleaning (T-fitting with inspection hole). Position the product considering all the above requirements and instructions. IMPORTANT! The following conditions must be complied with when connecting the appliance to the chimney: •...
  • Page 12 2-INSTALLATION INSTRUCTIONS COMBUSTION AIR During operation a certain amount of air is drawn from the room in which the product is installed and this air must be supplemented through an air inlet. The combustion air in this product is autonomously drawn directly from the grille on the pellet loading door. The 65 mm diameter pipe supplied must be connected to the product and the door as shown in the figure.
  • Page 13 2-INSTALLATION INSTRUCTIONS FANS ELECTRICAL CONNECTION The kit comes with 2.5 metre long silicone cables for fans cabling. Start cabling as follows: In position 2 connect the yellow/green wire while in position 1 connect the remaining two wires (the colour sequence does not matter as the fans do not have polarization) (fig.7).
  • Page 14 2-INSTALLATION INSTRUCTIONS CONNECTION TO THE EXTERNAL AIR INLET It is essential for the room where the product is installed to be adequately ventilated in order to guarantee sufficient air for proper combustion in the appliance. This is possible by means of suitable ventilation openings in the room itself or in an interconnected room through a permanent opening between the rooms.
  • Page 15 2-INSTALLATION INSTRUCTIONS CONNECTIONS CONNECTION TO THE CHIMNEY CONNECTION TO AN EXTERNAL DUCT CONNECTION TO THE CHIMNEY WITH AN INSULATED OR DOUBLE-WALL PIPE The internal dimensions of the chimney The minimum internal dimensions of the The connection between the product and must not exceed 20x20 cm or 20 cm in external duct must be 10x10 cm or 10 cm the chimney or the smoke duct must not...
  • Page 16 2-INSTALLATION INSTRUCTIONS OPERATING PROBLEMS RELATED TO DRAUGHT DEFECTS IN THE CHIMNEY Among all the weather and geographical conditions that affect chimney operation (rain, fog, snow, altitude a.s.l., exposure to sunlight, orientation to the cardinal points, etc.), the wind is certainly the most determinant. In fact, besides the thermal depression caused by the difference in temperature between inside and outside the chimney, there is another type of depression (or overpressure): dynamic pressure caused by the wind.

  • Page 17: 3-Installation And Assembly

    3-INSTALLATION AND ASSEMBLY DRAWINGS AND CHARACTERISTICS DIMENSIONS: VIVO 80 PELLET Ø 100 Ø 100 15° 706.6 786.5 Ø 65 Ø 80 Ø 213 Ø 100 Ø 100 Technical Dept. - All rights reserved - Reproduction is prohibited...
  • Page 18 3-INSTALLATION AND ASSEMBLY TECHNICAL CHARACTERISTICS VIVO 80 PELLET COMFORT AIR (SLIM-BASIC) Nominal output power 10,5 kW (9030 kcal/h) Minimum output power 2,7 kW (2322 kcal/h) Efficiency at Max 92,2% Efficiency at Min 95,8% Temperature of exhaust smoke at Max 170 °C Temperature of exhaust smoke at Min 70 °C...
  • Page 19 3-INSTALLATION AND ASSEMBLY PREPARATION AND UNPACKING The product is supplied in a single package. The pipe, feeding door and ventilation grille are packaged inside. A box is placed on top of the package with the Comfort Air Slim or Basic Kit inside. PACKAGING: VIVO 80 PELLET COMFORT AIR Open the package, remove the product from the pallet and set it in the pre-selected place, making sure this complies with the requirements.
  • Page 20 3-INSTALLATION AND ASSEMBLY POSITIONING Evaluate the optimal condition of installation before placing the product. The product can be installed in an existing traditional firebox or as a new system. Furthermore, an iron support can be purchased separately in order to raise the product to the recommended height, 500 mm, (see the relative price list of accessories - optional) or build a base on site.
  • Page 21 3-INSTALLATION AND ASSEMBLY FASTENING TO THE BASE OF THE INSERT It is mandatory to anchor the product to a support as the authorised technician can remove the combustion chamber from its seat by means of two extendable guides while performing the annual maintenance. Fasten the insert as follows: •...
  • Page 22 FITTING THE PELLET LOADING CHUTE The side on which the fuel loading chute is to be installed must be decided upon before setting the product in place. The VIVO 80 PELLET is delivered with two clamps, the connection pipe and the chute with a door.
  • Page 23 Proceed as follows to set the chute in place: • Connect the supplied pipe to the Vivo 80 Pellet, making sure it is turned sideways, and fasten it with the clamp. • Connect the pipe (upper part) to the opening of the door structure with the supplied clamp.
  • Page 24 3-INSTALLATION AND ASSEMBLY PRODUCT INLET HOLE The hole made on the wall must be 765*610 mm. These measurements allow the frame to cover the gap that remains between the product and the hole and also allow the product to be removed if maintenance is to be performed and/or parts are to be replaced. FITTING THE CHUTE AT THE FRONT Proceed as follows if the pipe is to be positioned at the front: •...
  • Page 25 3-INSTALLATION AND ASSEMBLY Pay utmost attention when handling the panels connected to the relative wires. The wires must be kept away from heat and where they cannot be damaged if the product is extracted. Correct operation requires the flat wire and the wire of the switch to be kept away from each other when passing them through, following different routes.
  • Page 26 3-INSTALLATION AND ASSEMBLY HOOD VENTILATION GRILLES Foreword Ventilation grilles must be set up according to how the product is placed. If inserted in existing cladding, the ventilation grilles on the cladding will be used. If used as a new installation, the company recommends installing the ventilation grilles as described in the following paragraph. However, it is important to set-up 2 openings, one on the top part and the other on the lower part of the cladding.
  • Page 27 3-INSTALLATION AND ASSEMBLY ELECTRICAL CONNECTION First connect the power cable to the rear part of the product and then to a wall socket, which must always be accessible. Should this not be possible, during installation, insert appropriate disconnecting power supply devices, in compliance with the national regulations regarding electrical installations.
  • Page 28 If you wish to mount a wooden beam, it must be protected with adequate insulation from the hot parts in order to prevent the risk of fire or damage to the cladding. FIGURE 8 - BEAM INSULATION INSULATION: APPLIED OR TO BE APPLIED WOODEN BEAM MARBLE OR OTHER MATERIAL STANDARD CLADDING ASSEMBLY The installation guide found in each specific cladding must be referred to for the setting up of MCZ product specific claddings.
  • Page 29 3-INSTALLATION AND ASSEMBLY ASSEMBLING THE COMPENSATION FRAME Once the cladding and/or the plasterboard is set up, fit the previously removed compensation frame. This frame intends to finish and cover the gap between the metal structure of the product and the cladding. The frame is assembled by simply opening the door of the product, fitting in the frame as shown in the figure and fastening it to the lateral columns of the structure, inside the door profile, with the four screws supplied.

  • Page 30: 4-Operation

    4-OPERATION BEFORE START-UP GENERAL PRECAUTIONS Remove all components that could burn from the firebox and the glass (instructions, various adhesive labels and any polystyrene). Check that the brazier is positioned correctly and rests properly on the base. After a long period of inactivity, remove any pellets left in the hopper (using a vacuum cleaner with a long pipe), as they could have absorbed moisture, thereby altering their original characteristics and no longer being suitable for combustion.
  • Page 31 4-OPERATION It is extremely important to make sure the product is not immediately overheated and the temperature is increased gradually starting from the low power. This will prevent damaging the welds and the steel structure. DO NOT EXPECT HEATING EFFICIENCY IMMEDIATELY!!! LOADING THE PELLETS Fuel is loaded from the side or front door, which is to be fitted on the cladding, which provides access to the fuel loading chute.

  • Page 32: 5-Lcd Remote Control

    5-LCD REMOTE CONTROL GENERAL SPECIFICATIONS OF THE LCD REMOTE CONTROL The remote control works at a transmission frequency of 434.5 MHz. Power the product with 3 AAA batteries as follows: • remove the cover of the battery compartment by pressing and lifting the point indicated by the arrow. •...

  • Page 33: Remote Control Operation

    5-LCD REMOTE CONTROL REMOTE CONTROL OPERATION GENERAL RULES Press key A for 1” to switch the product on and off. All changes are made with keys C. Key E is used to confirm the changes. Key B is used to select the product operating mode.
  • Page 34 5-LCD REMOTE CONTROL TIMER MODE (TIMER) Select this operating mode to switch the product on and off automatically, according to 6 customised time bands (P1 – P6). The following can be set for each time band: • start-up time. • Shutdown time.
  • Page 35 5-LCD REMOTE CONTROL VARIOUS SETTINGS ROOM VENTILATION The room ventilation can be adjusted as desired in all 4 operating modes described earlier on. Simply follow the steps below: press key D on the initial display to access the VENTILATION setting. Then press key C to set the desired ventilation by selecting one of the 5 levels available.
  • Page 36 5-LCD REMOTE CONTROL TIMER SETTINGS DISPLAYING THE TIMER TIME BANDS Simply press key D for 2" to display the time bands in TIMER mode. The 6 time bands can be scrolled through with key C, thereby verifying all the saved settings. Press key D or A to return to the initial display. MO TU WE TH FR SA SU 6:30 8:00...

  • Page 37: 6-Emergency Panel

    6-EMERGENCY PANEL EMERGENCY PANEL There is an emergency panel on the product side, designed for any malfunction to be detected and product control if the remote control should malfunction. Three-digit display that indicates a variety of product information besides the identification code of any malfunction. GREEN LED that indicates: •...
  • Page 38 6-EMERGENCY PANEL EMERGENCY PANEL START-UP/SHUTDOWN If the remote control is faulty or the batteries are flat, the product can be operated in safe mode via the rear emergency panel. In this configuration, the product can only work in manual mode and one of 3 power levels can be selected. •...
  • Page 39 6-EMERGENCY PANEL FEED SCREW LOADING This function can only be activated when the product is off and allows the pellets to be loaded into the feed screw (loading system). It can be used each time the pellets finish in the feed screw and hopper (see alarm A02). It is useful to prevent failed start-ups (alarm A01) due to the hopper being empty.

  • Page 40: 7-Safety Devices And Alarms

    7-SAFETY DEVICES AND ALARMS SAFETY DEVICES The product is supplied with the following safety devices: SMOKE TEMPERATURE PROBE Detects the temperature of the smoke, thereby enabling start-up or stopping the product when the temperature drops below the preset value. PELLET HOPPER SAFETY THERMOSTAT If the temperature exceeds the preset safety value, it immediately stops the product, which must cool down before being restarted.
  • Page 41 7-SAFETY DEVICES AND ALARMS ALARM ALERTS If an operating anomaly occurs, the product enters the shutdown phase due to an alarm and informs the user regarding the type of fault by means of a 3 digit code that remains displayed on the emergency panel. The alarm is indicated permanently by the relative 3 digit code, a flashing red LED that lights up on the emergency panel and an intermittent buzzer for the first 10 minutes.
  • Page 42 7-SAFETY DEVICES AND ALARMS The spark plug is faulty. Contact an authorised service centre to have the component replaced. Pellet supply fault. Contact an authorised service centre to have the component replaced. The remote control has been out of the product Move the remote control within the product reception reception range for over 3 hours (or the batteries range (or change the batteries of the remote control if...
  • Page 43 7-SAFETY DEVICES AND ALARMS BLOCKED PRODUCT The following may cause the product to be mechanically blocked: • the structure overheats (“A03”). • The smoke is overheated (“A04”). • During product operation, air that has not been controlled in the combustion chamber has entered or the chimney is clogged (“A05”). SOLUTIONS: if “A03”...

  • Page 44: 8-Maintenance And Cleaning

    8-MAINTENANCE AND CLEANING EXAMPLE OF A CLEAN BRAZIER EXAMPLE OF A DIRTY BRAZIER ATTENTION! All the cleaning operations of all parts must be performed with a completely cold product and the plug disconnected. The insert requires little maintenance if used with certified good quality pellets. DAILY OR WEEKLY CLEANING PERFORMED BY THE USER BEFORE EACH START-UP Clean the ash and any deposits in the brazier that could clog the air passage holes.
  • Page 45 8-MAINTENANCE AND CLEANING CLEANING THE GLASS It is recommended to clean the ceramic glass with a dry brush, or if it is very dirty, spray a little specific detergent and clean with a cloth. ATTENTION! Do not use abrasive products and do not spray the glass spray cleaner on the painted parts or the door gaskets (ceramic fibre cord).
  • Page 46 8-MAINTENANCE AND CLEANING BRACKET SCREW BRAZIER ASH PAN BRACKET ALUTEC REAR PART ALUTEC LATERAL SIDE ALUTEC LATERAL SIDE Be careful not to knock the refractory parts when removing them as they could chip or break. Set them in a safe place until they are to be fitted again.
  • Page 47 8-MAINTENANCE AND CLEANING Then remove the upper plate “Q”. Remove it from its seat by lifting it and then tilting it slightly downwards. Scrape the walls of the firebox with a rigid rod or a bottle brush into plate “Q” that has just been removed, for the ash to fall into the lower part where the inspection holes are located (under plates “R”).
  • Page 48 8-MAINTENANCE AND CLEANING CLEANING THE SMOKE DUCT AND FITTING When the product is extracted, you can intervene on the smoke fan (1) from the left side for cleaning and maintenance purposes. Clearly, the smoke evacuation fan must be removed for such maintenance to be performed. A gasket (3) is applied on the fan outlet, which guarantees the tightness with the smoke fitting (2).
  • Page 49 8-MAINTENANCE AND CLEANING END-OF-SEASON SHUTDOWN At the end of each season, before switching the product off, it is recommended to remove all the pellets from the hopper with a vacuum cleaner that has a long pipe. The product must be disconnected from the mains when it is not used. CHECKING THE INTERNAL COMPONENTS ATTENTION! The internal electromechanical components must only be checked by qualified personnel whose technical expertise...

  • Page 50: 9-Problems/Causes/Solutions

    9-PROBLEMS/CAUSES/SOLUTIONS ATTENTION! All repairs must only be carried out by a specialised technician, with the product switched off and the plug disconnected. If the product is NOT used as described in this manual, the manufacturer declines all liability for any damage caused to persons and property.
  • Page 51 9-PROBLEMS/CAUSES/SOLUTIONS ANOMALY POSSIBLE CAUSES SOLUTIONS The product works for a few minutes Start-up phase is not completed. Repeat start-up. and then switches off. Temporary power cut. Wait for the automatic restart. Clogged smoke duct. Clean the smoke duct. Faulty or malfunctioning temperature Check and replace the probes.
  • Page 52 9-PROBLEMS/CAUSES/SOLUTIONS ANOMALY POSSIBLE CAUSES SOLUTIONS The product always runs at maximum The room thermostat is in the maximum Set the thermostat temperature again. power when in automatic mode. position. Faulty temperature probe. Check the probe and replace it, if necessary. Faulty or malfunctioning control panel. Check the panel and replace it, if necessary. Thermostat is set to minimum. Set the thermostat temperature again.

  • Page 53: 10-Wiring Diagrams

    10-WIRING DIAGRAMS MOTHERBOARD WIRING KEY CONTROL PANEL GEAR MOTOR SMOKE PROBE CONTACT THERMOSTAT MODEM CONNECTION 10. AIR FAN SWITCH 11. SMOKE EXPULSION FAN REV CONTROL SPARK PLUG 12. AIR DOOR PROBE SMOKE EXPULSION FAN N.B. The wiring of the individual components is fitted with pre-wired connectors of different sizes. Technical Dept.
