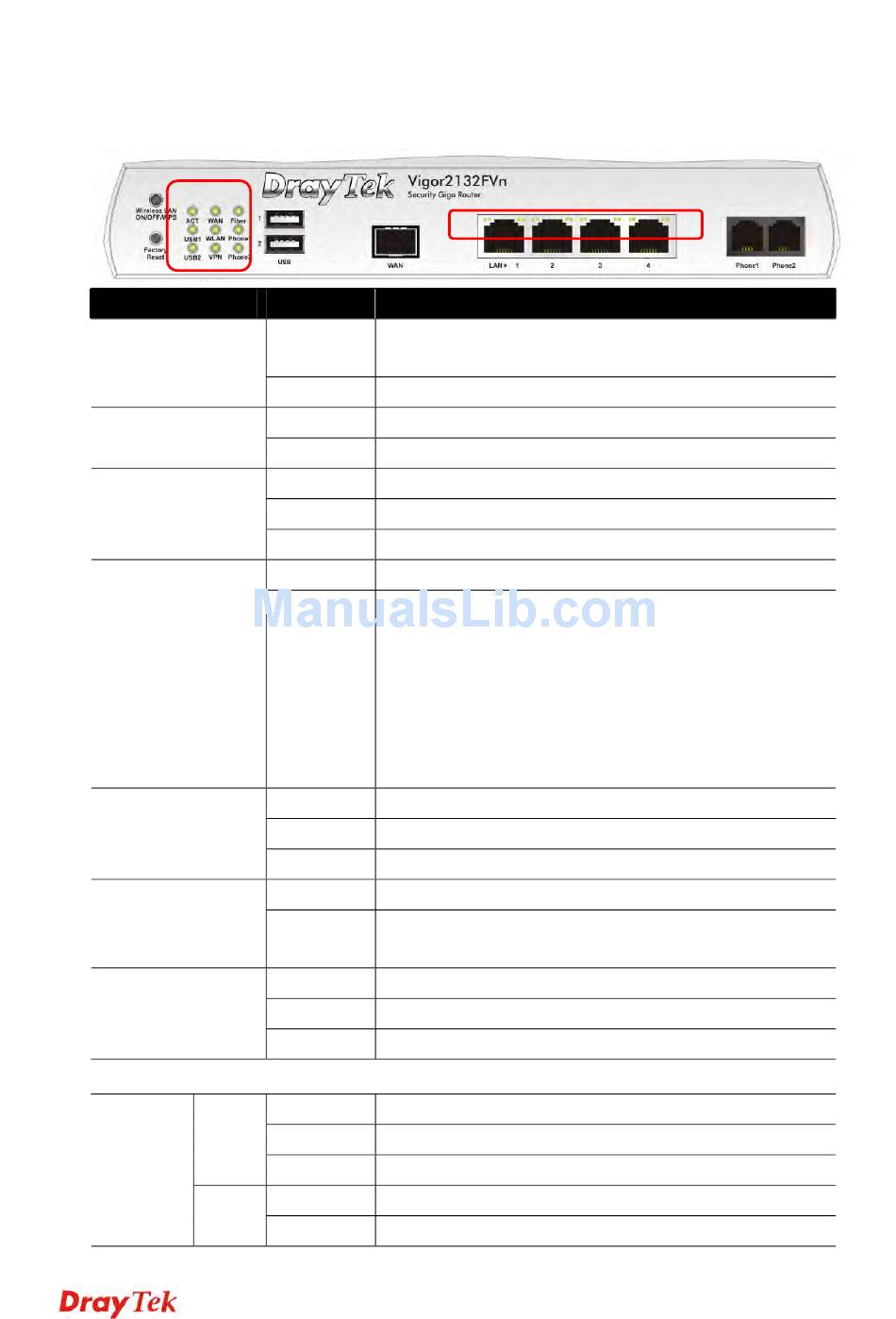

1 . 1 P a n e l E
1 . 1 P a n e l E
1 . 1 . 1 V i g o r 2 1
1 . 1 . 1 V i g o r 2
LED
ACT (Activity)
USB1/USB2
WAN
WLAN
VPN
Fiber
Phone1/
Phone2
LED on Connector
Left
LAN1~
LED
LAN4
Right
LED
x p l a n a t i o n
x p l a n a t i o n
3 2 F V n
1 3 2 F V n
Status Explanation
Blinking The router is powered on and running
normally.
Off The router is powered off.
On USB device is connected and ready for use.
Blinking The data is transmitting.
On Internet connection is ready.
Off Internet connection is not ready.
Blinking The data is transmitting.
On
Wireless access point is ready.
Blinking It will blink slowly while wireless traffic goes
through.
ACT and WLAN LEDs blink quickly and
simultaneously when WPS is working, and
will return to normal condition after two
minutes. (You need to setup WPS within 2
minutes.)
On The VPN tunnel is active.
Off VPN services are disabled
Blinking Traffic is passing through VPN tunnel.
On SFP Module is plugged and fiber link is up.
Off SFP Module is unplugged or the fiber link is
down.
On The phone connected to this port is off-hook.
Off The phone connected to this port is on-hook.
Blinking A phone call comes.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
Off The port is connected with 10/100Mbps
3
