Draytek Vigor2100 Quick Start Manual

Draytek Vigor2100 Quick Start Manual

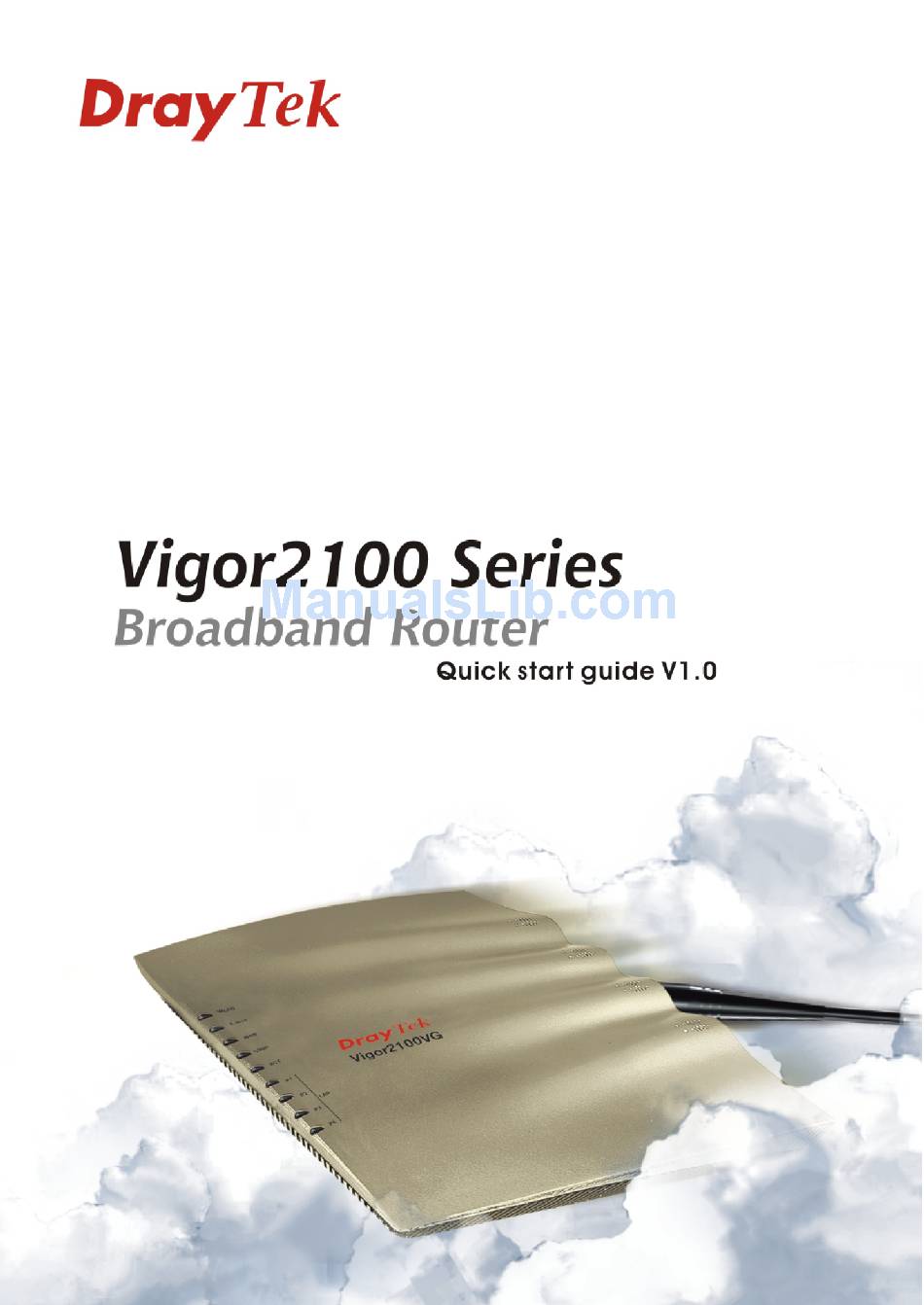

Vigor2100 series broadband router
Hide thumbs Also See for Vigor2100:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Draytek Vigor2100

Summary of Contents for Draytek Vigor2100

  • Page 2 Vigor2100 Series Quick Start Guide Copyright Information Copyright Copyright 2005 All rights reserved. This publication contains Declarations information that is protected by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders.
  • Page 3 Firmware & Due to the continuous evolution of DrayTek ADSL & Router technology, all routers will be regularly upgraded. Please Tools Updates consult the DrayTek web site for more information on newest firmware, tools and documents.

  • Page 4: European Community Declarations

    Address: No. 26, Fu Shing Road, HuKou County, HsinChu Industrial Park, Hsin-Chu, Taiwan 303 Product: Vigor2100 Series Residential Broadband Routers DrayTek Corp. declares that Vigor2100 series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE Directive 1999/5/EEC.

  • Page 5: Regulatory Information

    Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 6: Table Of Contents

    1.1 Brief Overview…………………………………………………………..……… 1.2 Specifications………………………………………………………..…………. 3 1.3 Front Panel LEDs and Rear Panel Interfaces………………..……….…… 4 1.4 Package Contains…………………………………………………..…………. 2. Quick Install Your Vigor2100 Series Router……………..……….. 2.1 Hardware Installation……………………………….……………..………….. 2.2 Configure Your Router via Quick Start Wizard…………………..………. PPPoE-type……………………………………………………………….……… 10 PPTP & Obtain IP automatically……………………………………..………… 11 PPTP &...

  • Page 7: Introduction

    1. Introduction Easy Internet-sharing of your broadband connection Robust firewall to help protect your network from external attacks For Vigor2100VG/V: Making regular phone calls over your broadband connection by simply plugging in your phone. QoS-assured VoIP facilities to deliver superior quality. Automatic failover for your Public Switched Telephone Network (PSTN) during power cuts.

  • Page 8: Brief Overview

    1.1 Brief Overview The Vigor2100 series broadband router/Firewall with a VoIP phone port, an Internet access solution for your LAN, which provides you with the shared web surfing and countless value-added features, such as Firewall, Security, VoIP, and 802.11g Wireless LAN (up to 54Mbps for Vigor2100VG and Vigor2100G only).

  • Page 9: Specifications

    1.2 Specifications For Vigor2100V/VG VoIP (Voice over IP) Supports one FXS(phone) port G.168 line echo-cancellation Gain control Jitter buffer Voice Codec: G.711 A/µ law, G.726, G.723.1, G.729 A/B, VAD/CNG Tone generation and detection: DTMF, Dial, Busy, Ring back Protocol: SIP, RTP/RTCP 4-port 10/100M Base-TX Ethernet switch DHCP server for IP assignment...

  • Page 10: Front Panel Leds And Rear Panel Interfaces

    1.3 Front Panel LEDs and Rear Panel Interfaces 1.3.1 Vigor2100V Status Firewall blinking blinking E-mail orange green blinking green VoIP orange ACT (Activity) orange green (P1, P2, P3, P4 blinking Interface Description Connect the included power adapter to the power outlet. Line Connect to the analog phone line for PSTN life line.
  • Page 11 1.3.2 Vigor2100G Status WLAN blinking E-mail blinking orange green blinking Firewall blinking ACT (Activity) orange green (P1, P2, P3, P4 blinking Interface Description Connect the included power adapter to the power outlet. Connect the Cable/ADSL modem to access the Internet. Restore the default settings.
  • Page 12 1.3.2 Vigor2100VG Status WLAN blinking E-mail blinking orange green blinking green VoIP orange ACT (Activity) orange green (P1, P2, P3, P4 blinking Interface Description Connect the included power adapter to the power outlet. Line Connect to the analog phone line for PSTN life line. Phone Connect to the analog phone for VoIP communication.

  • Page 13: Package Contains

    1.4 Package Contains Quick Start Guide UK-type power adapter EU-type power adapter USA/Taiwan-type power AU/NZ-type power adapter adapter RJ-45 Cable (Ethernet) RJ-11 Cable for Vigor2100VG/V Antenna for Vigor2100VG/G...

  • Page 14: Quick Install Your Vigor2100 Series Router

    2. Quick Install Your Vigor2100 Series Router 2.1 Hardware Installation Before starting to configure the router, you have to connect your devices correctly. 1. Connect the WAN interface to the external Cable/ADSL modem with a RJ-45 cable. 2. Connect one port of 4-port switch to your computer with a RJ-45 cable.

  • Page 15: Configure Your Router Via Quick Start Wizard

    2.2 Configure Your Router via Quick Start Wizard Introduction The Quick Start Wizard is designed for you to easily set up your broadband Internet access. You can directly access the Quick Start Wizard via Web Configurator. Configure Your Router via Quick Start Wizard Open the web browser on a PC which is connected to the router and Step 1.

  • Page 16: Pppoe-Type

    Now Quick Start Wizard is switched on. Enter login Step 3. click Next to continue. Select the appropriate TIME ZONE for your location. Step 4. Select the appropriate Internet connection type to your ISP. Step 5 In terms of several Internet connection type, please follow procedures as below: PPPoE users Enter your user name and password provided by your ISP.

  • Page 17: Pptp & Obtain Ip Automatically

    Dial on Demand : The router will ONLY connect to your ISP on demand. By “on demand”, it means when any LAN user attempt to send data onto the Internet. When there is no data traffic, the router will close the connection to the ISP because there is no demand.

  • Page 18: Static Ip (Fixed Ip)

    client that will ask for the IP network settings from the DHCP server or PPTP-enabled DSL modem. Specify an IP address: If you are not sure whether there are any DHCP services on the WAN interface, you can manually assign an IP address to the interface.

  • Page 19: Automatic Qos For Voip

    Review the summary of settings. Step 6 Vigor2100VG/V apply efficient codecs designed to make the best use of available bandwidth. Vigor2100VG/V also equip with automatic QoS assurance. QoS Assurance assists to assign higher priority to voice traffic via Internet for better talking/hearing enjoyment. To achieve that, you will always have the required inbound and outbound bandwidth that is prioritized exclusively for Voice traffic over Internet.

  • Page 20: Wireless Lan Settings(For G Models)

    3. Wireless LAN Settings(for G models) This section will guide you to operate the capabilities of Wireless LAN instantly on the router. Please follow the menu tree of the Wireless LAN configuration below to set up wireless function. Wireless LAN The Frequency Domain is set as Europe.

  • Page 21: Security Settings

    4. SSID and Channel: The default SSID is "default". We suggest you change it to a particular name. In this case, SSID was changed to “DrayTek”. SSID (Service Set Identifier): It is used to name the wireless LAN, and must have the same content in client PC/notebook wireless card(s). SSID can be any text numbers or various special characters.
  • Page 22 1. Mode: Select an appropriate encryption to improve the security and privacy of your wireless data packets. Disable: Turn off the encryption mechanism. WEP Only: Accepts only WEP clients and the encryption key should be entered in WEP Key. WEP or WPA/PSK: Accepts WEP and WPA clients simultaneously and the encryption key should be entered in WEP Key and PSK respectively.

  • Page 23: Voip Settings (For V Models)

    4. VoIP Settings (for V models) Hardware Connection The Vigor2100VG/V have one FXS port, the “Phone” port on the rear panel. As mentioned in previous section 2.1 Hardware Installation, you will have to connect it to a conventional analog telephone, either corded or wireless (DECT). Before you start to talk SIP is an end-to-end, signaling protocol that establishes user presence and mobility in VoIP structure.
  • Page 24 The major benefit of this mode is that you don’t have to memorize your friend’s IP address, which might change very frequently if it’s dynamic. Instead of that, you will only have to using dial plan or directly dial your friend’s account name if you are with the same SIP Registrar.

  • Page 25: Dialplan Setup

    4.1 DialPlan Setup In this section, you can set your VoIP contacts in the “phonebook” we called DialPlan - help you to make calls quickly and easily by using “speed-dial” Phone Number. There are total 60 index entries in the DialPlan for you to store all your friends and family members’...

  • Page 26: Sip Related Function Setup

    Backup Phone The telephone number to dial if you select PSTN in Loop Number Through 4.2 SIP Related Function Setup In this section, you set up your own SIP settings. When you apply for an account, your SIP service provider will give you an Account Name or user name, SIP Registrar, Proxy, and Domain name.
  • Page 27 The password provided to you when you registered with a SIP Password service. The time duration that your SIP Registrar server keeps your Expire Time registration record. Before the time expires the Vigor2100 series will send another register request to SIP Registrar again.
  • Page 28 In the “VoIP Call Status” you will find an “R” indicating you have registered with your SIP server.

  • Page 29: Calling Scenario

    4.3 Calling Scenario Calling via SIP Sever Example 1 John and David both have a SIP Address from different service providers. John’s SIP URL: 1234@draytel.org David’s SIP URL: 4321@iptel.org John’s settings DialPlan index 1 Phone Number: 1111 Display Name: David SIP URL: 4321@iptel.org SIP Related Function SIP Port: 5060 (default)
  • Page 30 Example 2 John and David both have a SIP Address from the same service provider. John’s SIP URL: 1234@draytel.org David’s SIP URL: 4321@draytel.org John’s settings DialPlan index 1 Phone Number: 1111 Display Name: David SIP URL: 4321@draytel.org SIP Related Function SIP Port: 5060 (default) Registrar: draytel.org Proxy: (Duplicate)

  • Page 31: Peer To Peer

    Peer-to-Peer Calling Example 3 Arnor and Paulin each have a Vigor2500V router, they can call each other without SIP Registrar. First they will have each other’s IP address and assign an Account Name for the port used for calling. Arnor’s SIP URL: 1234@214.61.172.53 Paulin’s SIP URL: 4321@ 203.69.175.24 Arnor’s settings DialPlan index 1...

  • Page 32: Trouble Shooting

    Are the Network Connection Settings on Your PC OK? The following example is based on Windows XP case. Regarding to the examples of other OSs, please refer to the similar steps or find support notes in www.draytek.com. 1. Go to Control Panel and then double-click on Network Connections.
  • Page 33 3. Select on Internet Protocol (TCP/IP) and then click Properties. 4. Select Obtain an IP address automatically and Obtain DNS server address automatically.

  • Page 34: Can You Ping The Router From Pc

    Step 3 Can You Ping the Router from PC? The default gateway IP address of the router is 192.168.1.1. Please check that if you can ping the router correctly. A. For Windows 1. Open the Command Prompt window (from start menu> Run ) 2.

  • Page 35: Are The Isp Settings Ok

    Step 4 Are the ISP Settings OK? 1. Go to the web configuration GUI and check your ISP settings. 2. Click Internet Access Setup items on the left frame of GUI. A. For PPPoE Users 1. Check that whether the Enable option is selected. 2.

  • Page 36: Back To Factory Default Setting

    C. For PPTP Users 1. Check that whether the Enable option is selected. 2. Check that whether PPTP Server, Username, Password is entered the correct value given by your ISP. 3. Check that whether LAN2/WAN IP Network Settings is set appropriately or not.
  • Page 37 After restore the factory default setting, please repeat Step 1 to Step 4 to reinstall the router. Configure the router according to your recorded settings. If the router does not work correctly, please contact your dealer for help. For any further questions, please send e-mail to support@draytek.com...
