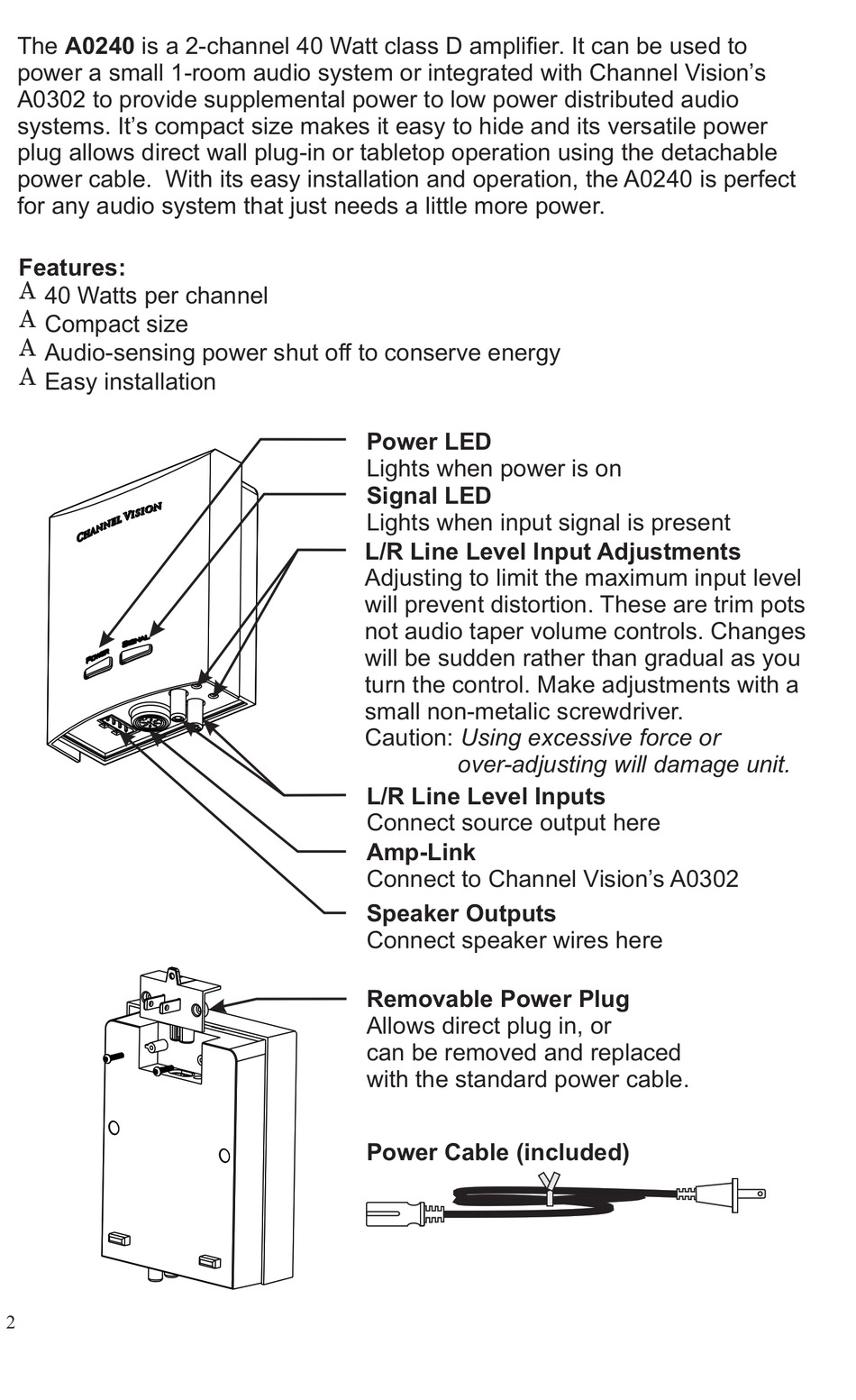

The A0240 is a 2
power a small 1-room audio system or integrated with Channel Vision's
A0302 to provide supplemental power to low power distributed audio
systems. It's compact size makes it easy to hide and its versatile power
plug allows direct wall plug-in or tabletop operation using the detachable
power cable. With its easy installation and operation, the A0240 is perfect
for any audio system that just needs a little more power.

Features:

! 40 Watts per channel
! Compact size
! Audio-sensing power shut off to conserve energy
! Easy installation
2
-channel 40 Watt class D amplifier.
Power LED
Lights when power is on
Signal LED
Lights when input signal is present
L/R Line Level Input Adjustments
Adjusting to limit the maximum input level
will prevent distortion. These are trim pots
not audio taper volume controls. Changes
will be sudden rather than gradual as you
turn the control. Make adjustments with a
small non-metalic screwdriver.
Caution: Using excessive force or
over-adjusting will damage unit.
L/R Line Level Inputs
Connect source output here
Amp-Link
Connect to Channel Vision's A0302
Speaker Outputs
Connect speaker wires here
Removable Power Plug
Allows direct plug in, or
can be removed and replaced
with the standard power cable.
Power Cable (included)
It can be used to
