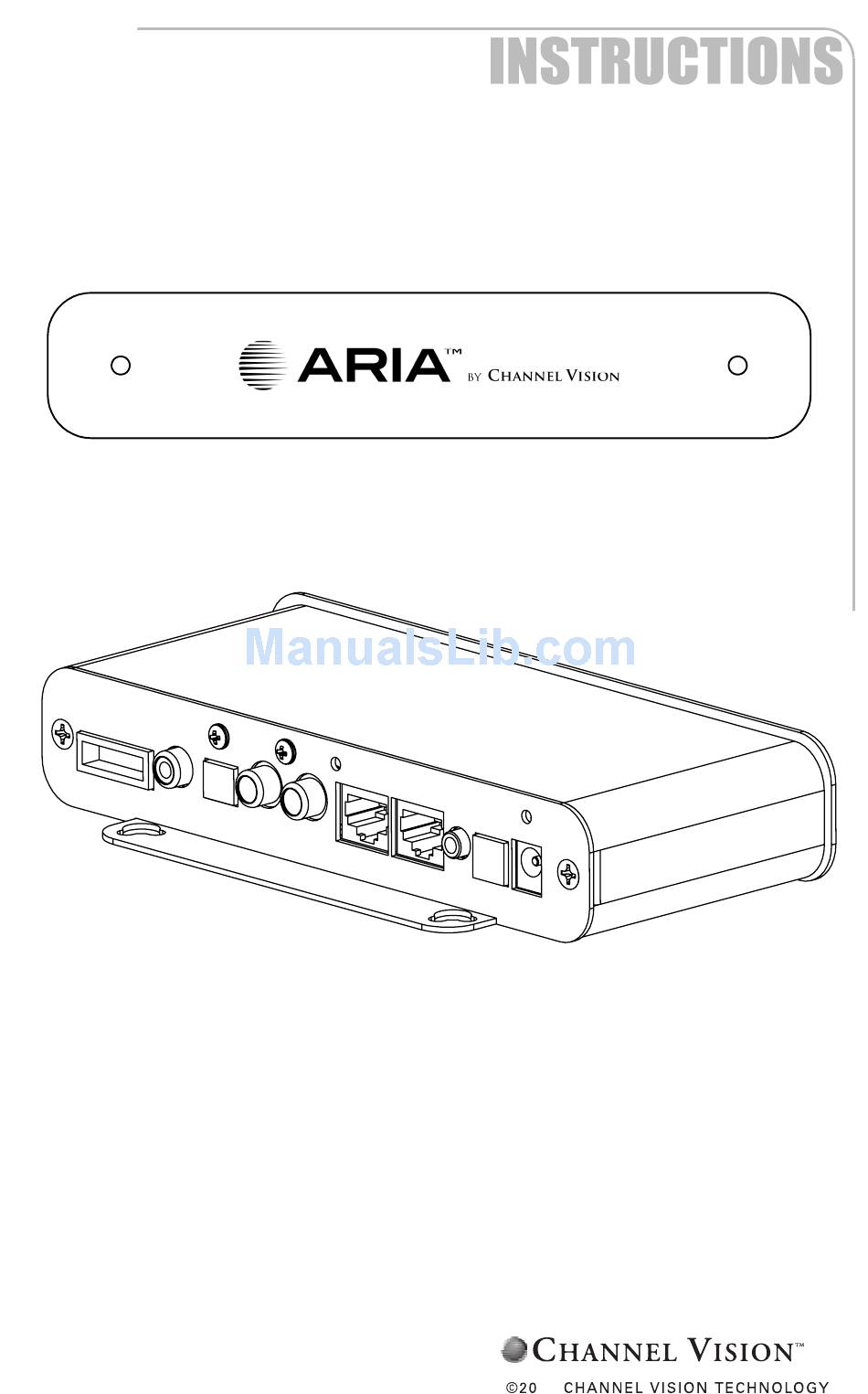

- Page 1 A0361 100W Table-Top Amplifier with Built-in Bluetooth streaming...

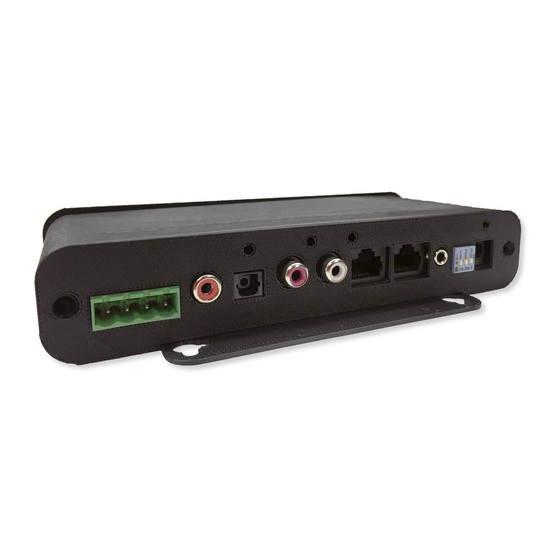

- Page 2 The A0361 Table-Top Amplifier can be used with Channel Vision’s CAT5 audio hubs to provide a powerful 100 Watt Amplifier, 50Watts per channel in the listening zone with an output for a powered sub-woofer. Features: 100 Watt integrated class D amplifier...
- Page 3 A0501, A0502, or A0505 ... Remote control. Contains IR codes for controlling the Amplified Wireless Audio Receiver as well as many other Channel Vision audio products. In-wall, In-ceiling Speakers, and Free Standing Speakers... Channel Vision offers a full line of premium speakers.
-
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions for future reference. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this device near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with these instructions. - Page 5 Priority Switch Settings: The Channel Vision Amplifier has 3 switches to set priority of sources. Default position of these switches will be all DOWN. User may change switch setting and customize priority of sources as per the table shown below:...
-
Page 6: Powered Subwoofer
Using the A0361 Behind a TV or as a Stand Alone System The A0361 can be mounted behind a wall-mounted TV to power in-wall speakers. By connecting the Optical audio outputs from the TV to the Optical inputs of the A0361, the TV’s audio signal will be amplified to the in-wall speakers. - Page 7 Using the A0361 with a CAT5 Audio Hub The A0361 can accept the signal from one Channel Vision’s CAT5 Audio Hubs, such as the P-2044. Audio and IR signals are transmitted through the CAT5 cable, while power is connected directly to the back of the A0361.
- Page 8 Using the A0361 with a CAT5 Audio Hub - Alternate Setup The A0361 can accept the signal from one Channel Vision’s CAT5 Audio Hubs, such as the P-2044. An A0125 keypad can be wired in the CAT5 line along with other input modules to accommodate a more traditional CAT5 Audio wiring scheme.
- Page 9 Stripping and Connecting CAT5 Wire CAT5 cable should be stripped with a proper stripping tool, such as Channel Vision’s J-110 tool. 1. Place the CAT5 between the blade and the first notch of the J-110 tool. Blade CAT5 2. Rotate the tool only once. Multiple turns could damage the inner wires.
- Page 10 Using the Aria Audio App to control A0361 Step 1: Go to bluetooth settings in your phone and connect to “Aria” Step 2: Open Aria Audio app and click on green Bluetooth icon Step 3: Select “Aria”. Once connected, the app will show something similar to the screen on right.
- Page 11 Changing Settings/Name of Bluetooth using Aria Audio App Step 1: Go to bluetooth settings in your phone and connect to “Aria” Step 2: Open Aria Audio app and click on green Bluetooth icon Step 3: Select “Aria”. Step 4: Tap on “Settings”. User may change any settings from this page.
-
Page 12: Led Indications
Specifications: (typical at 25 degrees °C) Power input: 24VDC, 2.5 amp Output power: 50 Watts/ch RMS into 8 ohms @ <1% THD Frequency Response: 20-20kHz (+/-3dB) Signal to Noise Ratio: >85dB Input Sensitivity: 50mVRMS Operating temperature: 0 to +80º C Specifications subject to change without notice LED Indications: PWR LED: LED ON indicates Power to the amplifier is ON... - Page 13 Channel Vision products are not intended for use in medical, lifesaving, life sustaining or critical environment applications. Channel Vision customers using or selling Channel Vision products for use in such applications do so at their own risk and agree to fully indemnify Channel Vision for any damages resulting from such improper use or sale.
