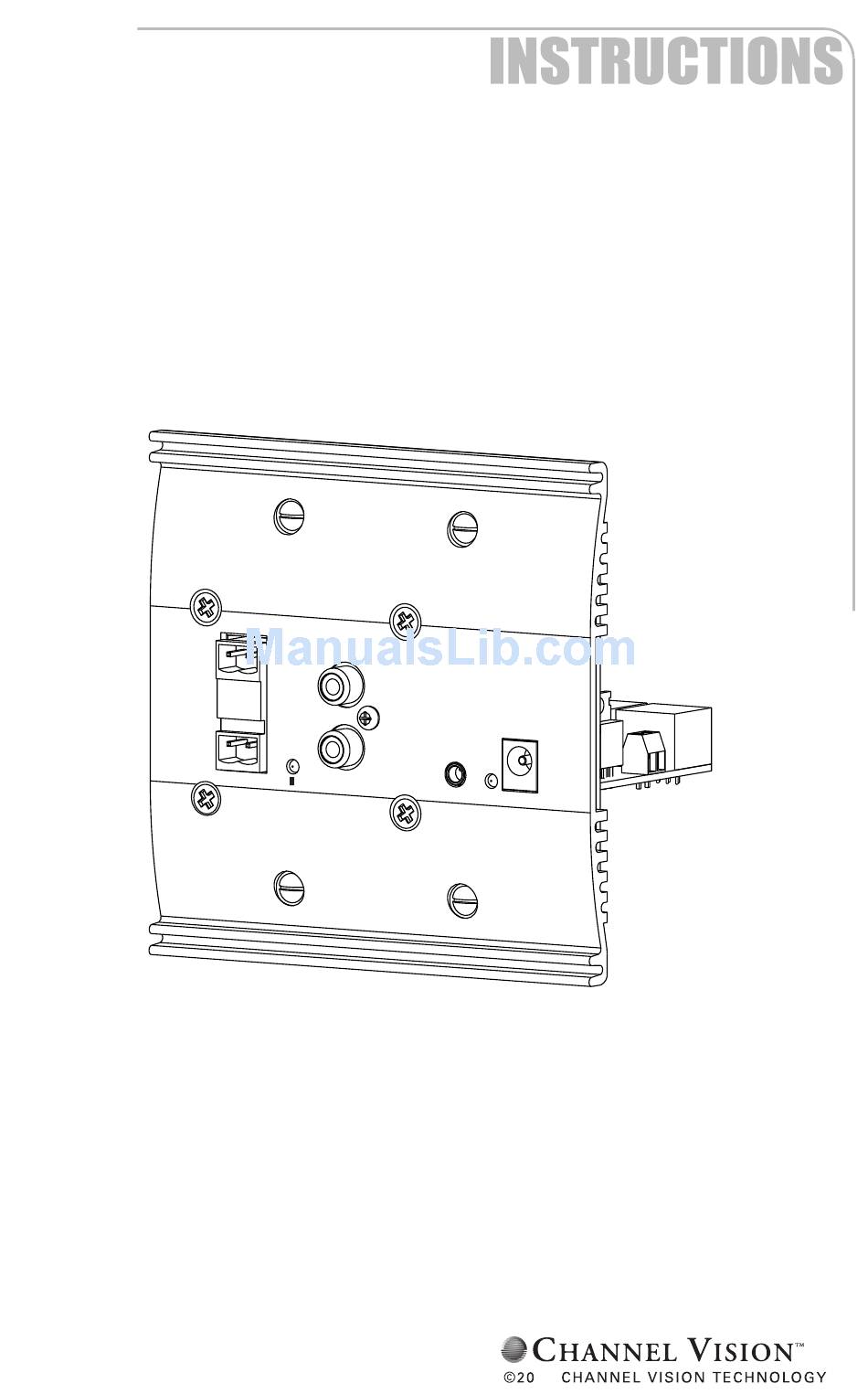

- Page 1 A r i a B y C H A N N E L V IS IO F lu sh M o u n t A m p lif ie r S p kr s A ct iv e L o ca l In IR In 2 4 V D C A0350...
- Page 2 The A0350 Flush Mount Amplifier can be used with Channel Vision’s CAT5 audio hubs to provide a powerful 50Watts per channel in the listening zone. Alternatively, the A0350 can be added to the SP525, SP650, and SP800 Free Standing Speakers to create a high-quality amplified speaker system.

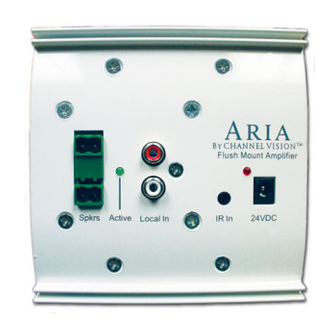

- Page 3 Rear Panel Features and Connections: A0350 Left & Right Audio Trim Pots... A r i a Control the maximum output level of B y C H A N N E L V I S I O N Flush Mount Amplifier the amplifier.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions for future reference. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this device near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with these instructions.
- Page 5 A0501, A0502, or A0505 ... Remote control. Contains IR codes for controlling the Amplified Wireless Audio Receiver as well as many other Channel Vision audio products. IR-2400 ... Plasma-Proof IR receiver. In-wall, In-ceiling Speakers, and Free Standing Speakers... Channel Vision offers a full line of premium speakers.
- Page 6 The A0350 can be installed in the wall using a standard 2-gang junction box or low-voltage mounting ring. The Flush Mount Amplifier can also be installed into the back of Channel Vision’s SP525, SP650, or SP800 Free Standing Speakers. In-Wall Installation...
- Page 7 Using the A0350 Behind a TV The A0350 can be flush-mounted behind a wall-mounted TV to power in-wall speakers. By connecting the audio outputs from the TV to the RCA inputs of the A0350, the TV’s audio signal will be amplified to the in-wall speakers. If the TV has variable audio outputs, the sound level will simply be controlled by the TV’s volume buttons.
- Page 8 Using the A0350 in a Stand-alone System The A0350 can be flush-mounted in a room to power in-wall speakers. By connecting the audio outputs from an audio source to the RCA inputs of the A0350, the audio signal will be amplified to the in-wall speakers. Most audio sources only offer a fixed audio output, A0350 volume level can be adjusted by using an A0127 keypad or by connecting an IR-2400 and using a compatible remote such as model A0505.
- Page 9 Using the A0350 with a CAT5 Audio Hub The A0350 can accept the signal from one Channel Vision’s CAT5 Audio Hubs, such as the P-2044. Audio and IR signals are transmitted through the CAT5 cable, while power is connected directly to the front of the A0350. Alternatively, power can be connected via a pair of 16AWG wires to the power screw terminals on the back side of the A0350.
- Page 10 Using the A0350 with a CAT5 Audio Hub - Alternate Setup The A0350 can accept the signal from one Channel Vision’s CAT5 Audio Hubs, such as the P-2044. An A0125 keypad can be wired in the CAT5 line along with other input modules to accommodate a more traditional CAT5 Audio wiring scheme.
- Page 11 Stripping and Connecting CAT5 Wire CAT5 cable should be stripped with a proper stripping tool, such as Channel Vision’s J-110 tool. 1. Place the CAT5 between the blade and the first notch of the J-110 tool. Blade CAT5 2. Rotate the tool only once. Multiple turns could damage the inner wires.
- Page 12 Troubleshooting: Problem: Hum in System Troubleshooting: Plug all parts of the system into the same outlet to see if the hum goes away. Try lifting the ground with a ground lifting plug. Cause: The different components in the system are connected to different electrical grounds.
- Page 13 Channel Vision products are not intended for use in medical, lifesaving, life sustaining or critical environment applications. Channel Vision customers using or selling Channel Vision products for use in such applications do so at their own risk and agree to fully indemnify Channel Vision for any damages resulting from such improper use or sale.
