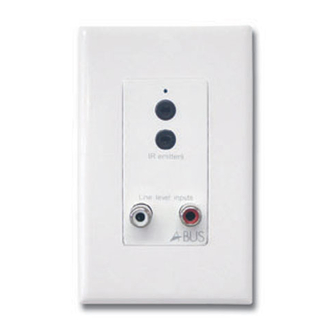

Channel Vision AB-202 Instruction Manual

Multi-room audio distribution system
Hide thumbs Also See for AB-202:

Advertisement

Quick Links

Download this manual
C
H A N N E L
distribution system
IR emitters
Line level inputs
234 Fischer Avenue · Costa Mesa, CA 92626
(714) 424-6500 · (800) 840-0288 · (714) 424-6510 fax
www.channelvision.com · email: sales @ channelvision.com
V
TM
system
AB-114 / AB-202
AB-404 / AB-301
AB-T2454
Multi-room audio
C
V
H A N N E L
© 2004 Channel Vision Technology
I S I O N
2
IN
OUT
1
b y
C
V
H A N N E L
I S I O N
AUDIO
L
R
C
V
H A N N E L
B y
AB-202
A-BUS OUTPUT
I S I O N
T M
T M
3
4
BRN
WHT/BRM
BLU
WHT/BLU
GRN
WHT/GRN
ORG
WHT/ORG
T M
STATUS
12VDC
I S I O N
T M
STATUS
IR
IR EMITTERS

Advertisement

loading
Need help?

Need help?

Do you have a question about the AB-202 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Channel Vision AB-202

Summary of Contents for Channel Vision AB-202

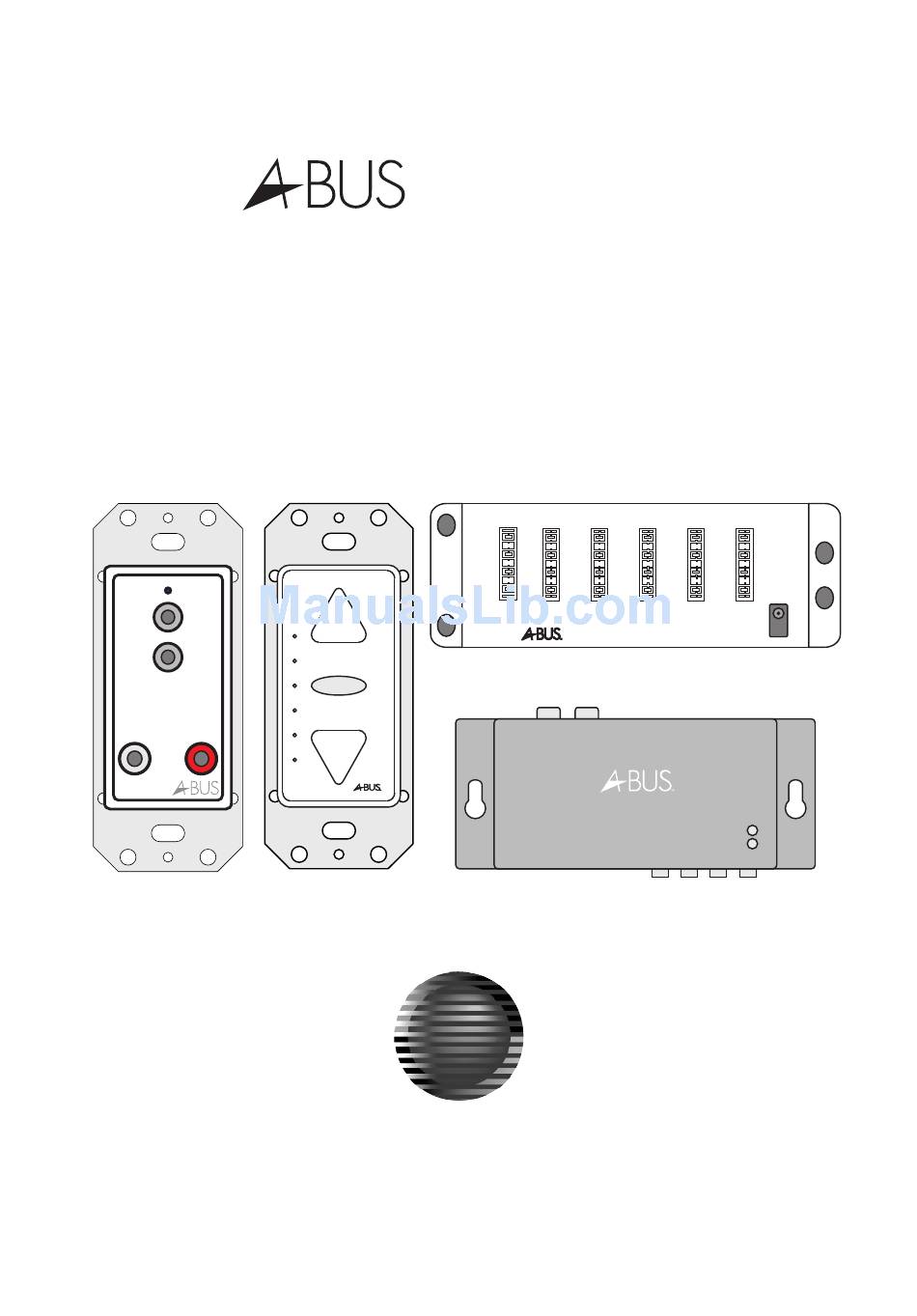

  • Page 1 A-BUS OUTPUT H A N N E L I S I O N 234 Fischer Avenue · Costa Mesa, CA 92626 (714) 424-6500 · (800) 840-0288 · (714) 424-6510 fax www.channelvision.com · email: sales @ channelvision.com © 2004 Channel Vision Technology...

  • Page 2: Required Components

    Required components STATUS AUDIO 12VDC AB-202 ... Single source module. 1 per system. Interfaces sources to the system. Mount near audio components H A N N E L I S I O N (CD player, receiver etc.)

  • Page 3: Optional Components

    Optional components AB-301 ... Universal input module. Can be used to provide local source input in any room and/or to replace the AB-202. The IR emitters AB-301 is a great way to enable simple Line level inputs connection of local sources into the zone - TV’s, MP3 players, computer sources, etc.

  • Page 4: Basic System

    Easy to use, single zone systems are ideal for all public spaces (kitchen, entry, family room, patio). Imagine walking from room to room and your music follows. If music is part of your life, the Channel Vision A-BUS system will make music a part of your house.
  • Page 5 Sat radio Inputs ... IR-3001 flasher placed over IR receiver on all sources. (IR option). DVD player Connect audio L/R on the AB-202 to the tape monitor output of the receiver. CD player Plug 5019 power supply into switched the AC outlet on the receiver. (Status option.)

  • Page 6: Advanced System

    Advanced system Using the AB-301 as a local source input module Main input source Sat radio DVD player CD player STATUS AUDIO AB-202 12VDC Receiver H A N N E L I S I O N STATUS AB-T2454 AB-202 IR EMITTERS...
  • Page 7 Each room can listen to a different local source. The RCA inputs on the AB-301 will override the main input source, allowing each room to listen to a different local source. IR emitters Room 4 Line level inputs IR emitters Room 3 Line level inputs Room 2...
  • Page 8 Advanced system Using the AB-301 as a universal input module In this system The first AB-301 is used to input the main audio source. The second AB-301 is used to input audio from a paging system. The AB-301 in each room used to input audio that will only be heard in that room’s speakers.
  • Page 9 Sat radio Inputs ... IR-3001 flasher placed over IR receiver on all sources. (IR option). DVD player Connect audio L/R on the AB-301 to the tape monitor output of the receiver. CD player Audio from paging system Receiver AB-301 IR emitters IR emitters Line level inputs Line level inputs...
  • Page 10 Option ... Use CAT-5 jack to terminate cable from AB-404 STATUS AUDIO 12VDC and standard CAT-5 jumpers to connect AB-202. H A N N E L I S I O N STATUS AB-202 IR EMITTERS A-BUS OUTPUT Option ... To add more zones, connect slave AB-404s as shown.
  • Page 11 Leave the gasket as is for a flush fit. Remove the gasket to have the AB-301 stand above the plate. Suitable speakers Channel Vision offers a variety of multi-room speakers. ID652 In-ceiling dual voice coil speaker IW601 Both stereo channels from a single In-wall Soprano series speaker.
  • Page 12 Stripping and Connecting CAT5 Wire CAT5 cable should be stripped with a proper stripping tool, such as Channel Vision’s J-110 tool. 1. Place the CAT5 between the blade and the first notch of the J-110 tool. Blade CAT5 2. Rotate the tool only once. Multiple turns could damage the inner wires.
  • Page 13 One Year Limited Warranty Channel Vision Technology will repair or replace any defect in material or workmanship which occurs during normal use of this product with new or rebuilt parts, free of charge in the USA, for one year from the date of original purchase.

This manual is also suitable for:

Ab-301Ab-404Ab-114Ab-t2454
