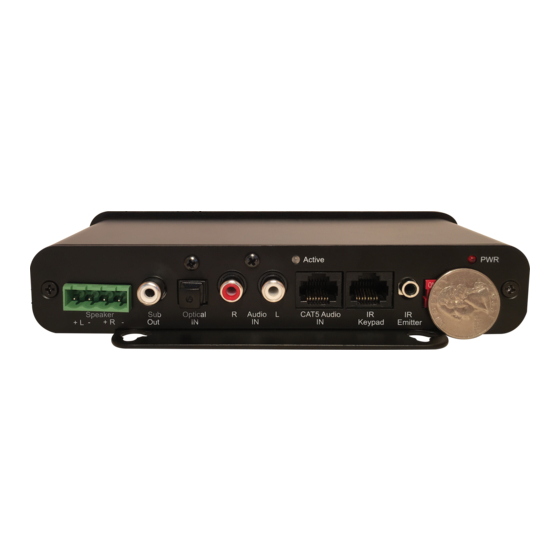

- Page 1 A0351 100W Table-Top Amplifier...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions for future reference. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this device near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with these instructions. - Page 3 The A0351 Table-Top Amplifier can be used with Channel Vision’s CAT5 audio hubs to provide a powerful 100 Watt Amplifier, 50Watts per channel in the listening zone with an output for a powered sub-woofer. Features: 100 Watt integrated class D amplifier...
- Page 4 A0501, A0502, or A0505 ... Remote control. Contains IR codes for controlling the Amplified Wireless Audio Receiver as well as many other Channel Vision audio products. In-wall, In-ceiling Speakers, and Free Standing Speakers... Channel Vision offers a full line of premium speakers.
- Page 5 Teach the amplifier your Tv’s volume commands Step 1: Turn off all music sources. Connect A0129/A0127 in IR Keypad input. Confirm active LED is RED. Step 2: Change dip switch position to IR Learning setting as shown in table. Switch 1 = Down Switch 2 = Down Switch 3 = UP Step 3: Point your TV remote to A0129 keypad and press Volume UP button once.
- Page 6 Priority Switch Settings: The Channel Vision Amplifier has 3 switches to set the priority of audio efault position of these switches will be all DOWN. sources. D *User may change switch setting and customize priority of sources as per the table shown below:...
- Page 7 Using the A0351 Behind a TV or as a Stand Alone System The A0351 can be mounted behind a wall-mounted TV to power in-wall speakers. By connecting the audio outputs from the TV to the Optical inputs of the A0351, the TV’s audio signal will be amplified to the in-wall speakers.
- Page 8 Using the A0351 with a CAT5 Audio Hub The A0351 can accept the signal from one Channel Vision’s CAT5 Audio Hubs, such as the P-2044. Audio and IR signals are transmitted through the CAT5 cable, while power is connected directly to the back of the A0351.
- Page 9 A0351 with a Multi-Room Audio Hub - Alternate Setup The A0351 can accept the signal from Channel Vision’s CAT5 Audio Hubs, such as the P-2044/P-1014. A0125 keypad can be wired to the CAT5 input along with other input modules to accommodate more CAT5 Audio wiring distribution with an amplifier located inside of the room/zone while sources play in a remote room and throughout the home &...
- Page 10 Specifications: Power input: 24VDC, 2.5 amp, earth ground negative, 3 plug UL approved transformer Audio Output: 100 Watts/ 50 Watts x2 OHMS 8 ohms @ <1% THD Frequency Response: 20-20kHz (+/-3dB) Signal to Noise Ratio: >85dB Subwoofer output frequency 20-80 Hz Input Sensitivity: 50 mV RMS Operating temperature:...
- Page 11 Stripping and Connecting CAT5 Wire CAT5 cable should be stripped with a proper stripping tool, such as Channel Vision’s J-110 tool. 1. Place the CAT5 between the blade and the first notch of the J-110 tool. Blade CAT5 2. Rotate the tool only once. Multiple turns could damage the inner wires.
- Page 12 In the unlikely event you require the 1 year warranty service, Channel Vision Technology will repair or replace any defect in material or workmanship which occurs during normal use of this product with new or rebuilt parts, free of charge in the USA, for one year from the date of original purchase.
