Summary of Contents for Channel Vision A0240

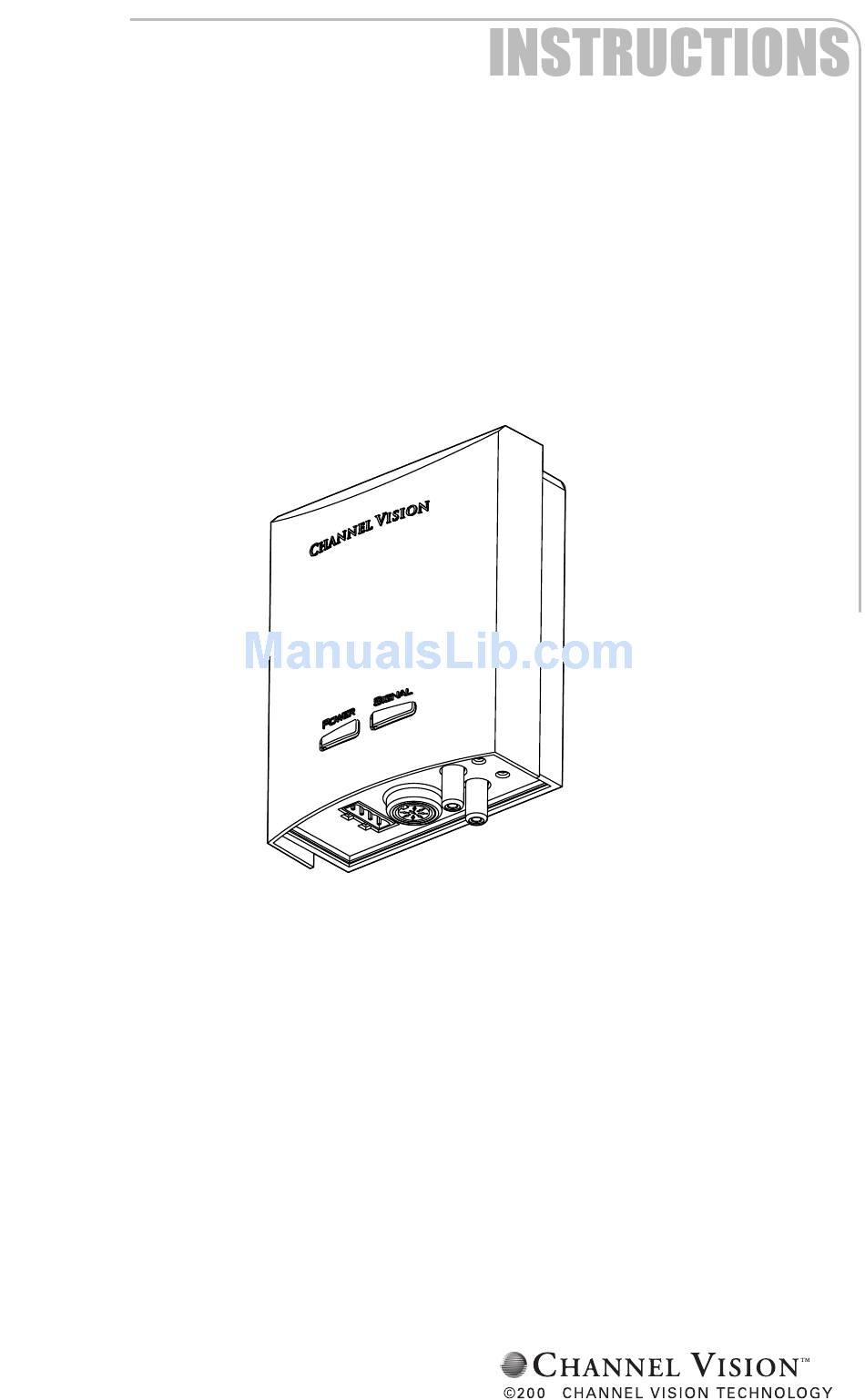

- Page 1 A0240 40 Watt Stereo Amplifier...
- Page 2 It’s compact size makes it easy to hide and its versatile power plug allows direct wall plug-in or tabletop operation using the detachable power cable. With its easy installation and operation, the A0240 is perfect for any audio system that just needs a little more power.
- Page 3 VC-302... Impedance Matching Volume Control The VC-302 is an impedance matching volume control with an IR receiver knockout. The knockout allows Channel Vision’s IR- 2400 to be integrated with the volume control for applications that require IR repeating. The VC-302 comes with white, ivory, and almond knobs and face plates to easily match other wall plates in the room.
-
Page 4: Rear View
Using the A0240 with the A0302 The A0302 is the perfect complement to Channel Vision’s A0240 amplifier. It can utilize the Amp-Link connection, which provides a clean way to interrupt the speaker-level audio from a low-power system and output 40 Watts per channel to the speakers. - Page 5 Using the A0240 as a local input amplifier In addition to increasing power of a distributed audio system, the A0240 can also be used to interrupt a the whole house audio source and amplify a local source device. Whole-House Audio System Place switch in L/R mode.
- Page 6 Room 1, and use the RCA outputs of WA-361 receivers to feed amplifiers in several different rooms. If a fixed gain amplifier is used (such as the A0240), a volume control like the VC-302 will be needed to adjust the volume level in the remote rooms.
- Page 7 Amp-Link Pin Out The A0240 provides a special Amp-Link connection that is intended to be used with Channel Vision A0302 wall plate. The pin out is provided here for reference. Pin 8 Power +24VDC Shield Audio Ground Pin 6 Speaker L-...
- Page 8 Channel Vision Technology will repair or replace any defect in material or workmanship which occurs during normal use of this product with new or rebuilt parts, free of charge in the USA, for one year from the date of original purchase. This is a no hassle warranty with no mail in warranty card needed.
