Summary of Contents for Channel Vision A0362

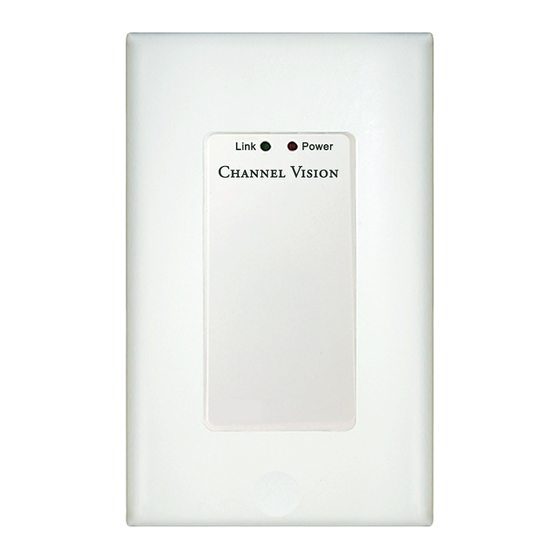

- Page 1 A0362 Aria 100W Amplifier ® with Bluetooth Audio Streaming ARIA Audio ARIA Audio 2018...
- Page 2 In addition, this can be set up as a multi-room installation to play in all zones simultaneously. Operation: To pair to the A0362, open your mobile devices’ Bluetooth, select the device named ARIA, the red LED light will turn green on the front of the ARIA receiver to indicate it is now connected.
- Page 3 The audio output level from streaming sources can vary from brand to brand. Although the A0362 has been adjusted to be equal to the output of most streaming source devices, in some cases the level may be different. Most devices have their own adjustable volume level, and it is recommended that this be used to adjust the output level to match the main audio source’s volume level.
-
Page 4: Installation Diagram
Installation - Multi-Room Application: Using a zone output of ARIA Audio hub, plug the CAT5 cable into the RJ-45 input of the A0362. Connect Speakers to the 100W speaker output of the A0362. Repeat for all zones for audio in each zone locally. - Page 5 Once connected, you will see the LED turn green. B. When Security on A0362 is ON 1. Confirm LED on the face plate of A0362 is red. 2. Turn Phone’s Bluetooth on and scan. 3. Select “Aria” from the device list. It will open bluetooth pairing request.
- Page 6 Aria. This will connect your device to A0362. Pairing the multiple Bluetooth device 1. Make sure that first A0362 device is connected and green LED is on. Now go to Aria App and select the bluetooth icon in the app.
-
Page 7: Playing Music
You may now change equalizer settings here. Thank You ® We appreciate your choice of the Aria Audio Bluetooth 4.2 Amplifier. The ARIA Audio family of Amplifiers and music distribution products ensure the audio performance and comfort you expect from Channel Vision since 1993. - Page 8 See website for details: http://channelvision.com/warranty/ Tested To Comply With FCC Standards Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
