Quadra-Fire CASTILEI-MBK Owner's Manual

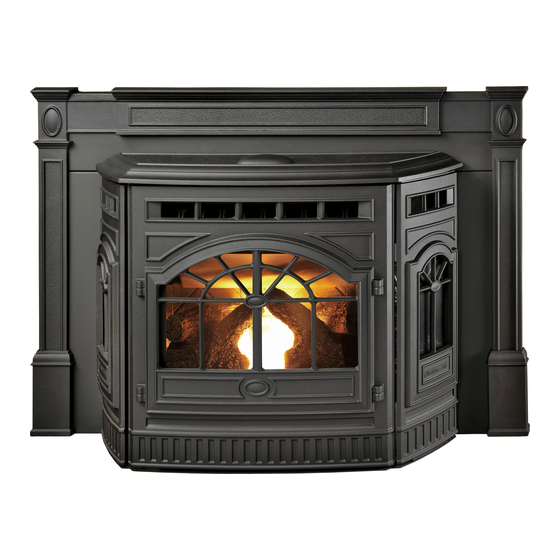

Castile pellet insert stove
Hide thumbs Also See for CASTILEI-MBK:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , Owner's Manual Installation and Operation
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your dealer with questions on installation, operation, or service.
NOTICE: DO NOT DISCARD THIS MANUAL
CASTILE PELLET INSERT STOVE
Model(s):
CASTILEI-MBK
CASTILEI-PMH
CASTILEI-CSB
CASTILEI-CWL
CAUTION
Tested and approved for wood pellets and corn pellets.
Burning of any other type of fuel voids your warranty.
CAUTION
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and na-
tional codes and regulations.
• Consult local building, fi re offi cials or authorities having juris-
diction about restrictions, installation inspection, and permits.
1
Owner's Manual
Operation & Care
Tested and
Portland
O-T L
Listed by
Oregon USA
C
US
OMNI-Test Laboratories, Inc.
7022-515B
WARNING
If the information in these instruc-
tions is not followed exactly, a
fi re could result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not overfi re - If heater or chimney con-
nector glows, you are overfi ring. Overfi ring
will void your warranty.
• Comply with all minimum clearances to
combustibles as specifi ed. Failure to
comply may cause house fi re.
WARNING
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
Hot glass will cause burns.
•
Do not touch glass until it is cooled
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room as
fi replace.
•
Alert children and adults to hazards of high temperatures
•
High temperatures may ignite clothing or other
fl ammable materials.
•
Keep clothing, furniture, draperies and other fl ammable
materials away.
NOTE
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrafi re.com
Pour obtenir une traduction française de ce manuel, s'il vous
plaît contacter votre revendeur ou visitez www.quadrafi re.com
May 5, 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CASTILEI-MBK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Quadra-Fire CASTILEI-MBK

Summary of Contents for Quadra-Fire CASTILEI-MBK

  • Page 1 fi re could result causing property Model(s): damage, personal injury, or death. CASTILEI-MBK • Do not store or use gasoline or other fl am- CASTILEI-PMH mable vapors and liquids in the vicinity of CASTILEI-CSB this or any other appliance.

  • Page 2: Congratulations

    Hearth & Home Technologies welcomes you to our tradition old-fashioned when it comes to craftsmanship. Each unit of excellence! In choosing a Quadra-Fire appliance, you is meticulously fabricated and gold and nickel surfaces are have our assurance of commitment to quality, durability, and hand-fi...

  • Page 3: Table Of Contents

    CASTILE INSERT Safety Alert Key: • DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury. • WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury. • CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

  • Page 4: Warranty Policy

    CASTILE INSERT C. Warranty Policy Hearth & Home Technologies Inc. LIMITED LIFETIME WARRANTY Hearth & Home Technologies Inc., on behalf of its hearth brands (”HHT”), extends the following warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer. WARRANTY COVERAGE: HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance...

  • Page 5: Warranty Conditions

    CASTILE INSERT WARRANTY CONDITIONS: ‡ 7KLV ZDUUDQW\ RQO\ FRYHUV ++7 DSSOLDQFHV WKDW DUH SXUFKDVHG WKURXJK DQ ++7 DXWKRUL]HG GHDOHU RU GLVWULEXWRU $ OLVW RI ++7 DXWKRUL]HG GHDOHUV LV DYDLODEOH RQ WKH ++7 EUDQGHG ZHEVLWHV ‡ 7KLV ZDUUDQW\ LV RQO\ YDOLG ZKLOH WKH ++7 DSSOLDQFH UHPDLQV DW WKH VLWH RI RULJLQDO LQVWDOODWLRQ ‡...

  • Page 6: Listing And Code Approvals

    WARNING E1509-2004, ULC S628-93, ULC/ORD-C-1482-M1990, (UM) 84-HUD Fire Risk. The Quadra-Fire Castile Pellet Insert meets the U.S. Environ- Hearth & Home Technologies disclaims any mental Protection Agency’s emission limits for pellet heaters responsibility for, and the warranty will be voided sold after May 15, 2015.

  • Page 7: Operating Instructions

    CASTILE INSERT User Guide Operating Instructions • Shelled fi eld corn & other biomass fuels WARNING • Depending on the source material it may have a high or low ash content. Fire Risk. Higher Ash Content Material • Do not operate appliance before reading and •...

  • Page 8: General Operating Information

    CASTILE INSERT E. General Operating Information 2. Double check that the ash drawer and fi rebox are empty! 1. Thermostat Calls For Heat 3. Close the front door. The appliance is like most modern furnaces; when the CAUTION thermostat calls for heat, your appliance will automatically light and deliver heat.

  • Page 9: Fire Characteristics

    CASTILE INSERT pellets. The appliance will continue to run as long as the transfers heat from your appliance into the room, and will thermostat is calling for heat. continue to run after the thermostat has stopped calling for heat until the appliance has cooled down. 6.

  • Page 10: Frequently Asked Questions

    CASTILE INSERT N. Frequently Asked Questions ISSUES SOLUTIONS 1. Metallic noise 1. Noise is caused by metal expanding and contracting as it heats up and cools down, similar to the sound pro- duced by a furnace or heating duct. This noise does not affect the operation or longevity of your appliance.

  • Page 11: Maintenance And Service

    CASTILE INSERT Maintenance and Service When properly maintained, your fi replace will give you CAUTION many years of trouble-free service. Contact your dealer to answer question regarding proper operation, troubleshoot- Shock and Smoke Hazard ing and service for your appliance. Visit www.quadrafi re. com to fi...

  • Page 12: General Maintenance And Cleaning

    CASTILE INSERT c. Open door. There are 2 cleaning slide plates to the B. General Maintenance and Cleaning left and right of the fi repot with fi nger holes. Pull both 1. Types of Fuel slide plates out and sweep the remaining ash from the Depending on the type of fuel you are burning will dictate how fi...
  • Page 13 CASTILE INSERT 6. Cleaning Heat Exchanger Chambers 8. Cleaning the Glass • Frequency: Weekly or every 1 ton of fuel • Frequency: When clear view of the fi repot is obscure • By: Homeowner • By: Homeowner The amount of ash buildup in the fi rebox will be a good guide a.
  • Page 14 CASTILE INSERT 11. Cleaning Exhaust Blower - Requires No Lubrication C. High Ash Fuel Content Maintenance • Frequency: When the ash build-up exceeds more • Frequency: Yearly or as needed than half way up the fi repot. • By: Quality Service Technician/Homeowner •...

  • Page 15: Troubleshooting Guide

    CASTILE INSERT Troubleshooting Guide With proper installation, operation, and maintenance your appliance will provide years of trouble-free service. If you do experience a prob- lem, this troubleshooting guide will assist a qualifi ed service person in the diagnosis of a problem and the corrective action to be taken. This troubleshooting guide can only be used by a qualifi...
  • Page 16 CASTILE INSERT Symptom Possible Cause Corrective Action Slow or smoky start-up Dirty exhaust and/or venting system. Check for ash build up in appliance, (Cont’d) including behind rear panels, fi rebox, heat exchanger, exhaust blower and venting. Feed system fails to Out of fuel.
  • Page 17 CASTILE INSERT Symptom Possible Cause Corrective Action Convection blower fails to #1 snap disc defective. Replace snap disc. start. Blower not plugged in. Check that blower is plugged into wire har- ness. Blower is defective. Replace blower. Control box is defective. Replace control box.

  • Page 18: Service Parts Replacement

    CASTILE INSERT Service Parts Replacement A. Blower Replacement 2. Convection Blower Replacement 1. Combustion (Exhaust) Blower Replacement a. The blower is located at the bottom rear of the insert. a. If you have adequate clearance you will not have to If an outside air kit is also installed, you will fi...

  • Page 19: Baffl E & Brick Replacement

    CASTILE INSERT C. Re-installing Baffl e & Brick Set B. Baffl e & Brick Replacement 1. Place right brick in behind the right bracket, and then 1. Follow proper shutdown procedures in Section 10. slide to the left so the tabs are behind the center brick. 2.
  • Page 20 CASTILE INSERT Re-installing Baffl e & Brick Set (Cont’d) Lift brick, pull forward at an angle and drop down into notches Figure 20.4 Figure 20.1 Figure 20.2 Figure 20.3 7022-515B May 5, 2015...

  • Page 21: Igniter Replacement

    CASTILE INSERT D. Igniter Replacement E. Glass Replacement 1. Shut down the appliance by turning down the thermostat 1. Open the face and remove door from the appliance and let the appliance completely cool down. After the by lifting door off of hinge pin and lay on a fl at surface appliance has cooled down, unplug it and remove the face down.

  • Page 22: Reference Materials

    CASTILE INSERT Reference Materials  When describing the location of a component, A. Component Functions it is always AS YOU FACE THE FRONT OF THE APPLIANCE. 1. Control Box a. The control box is located on lower right side of 8.
  • Page 23 CASTILE INSERT 17. Snap Disc #1 (Convection Blower) 110°F 20. Vacuum Switch Snap disc #1 is located on the right side of the fi rebox. There The vacuum switch is located on the lower right side of the are 2 purple wires connected to it. This snap disc turns the appliance behind left access panel.

  • Page 24: Component Locations

    CASTILE INSERT B. Component Locations 10 Heat Exchanger Tubes Cleaning Rods Figure 24.1 - Cleaning Rods & Heat Exchanger Tubes RIGHT SIDE Feed Motor Combustion Blower Vacuum Switch Leveling Bolt Convection Blower Figure 24.2 Control Box Red Call Light Fuse Power Co Outlet Heat Output...

  • Page 25: Exploded Drawings

    CASTILE INSERT C. Exploded Drawings Castile Insert-B Service Parts Beginning Manufacturing Date: Feb 2011 Castile Pellet Insert Ending Manufacturing Date: Active CASTILEI-MBK, CASTILEI-PMH, CASTILEI-CSB CASTILEI-CWL (Feb 2011 Thru June 2011) Part number list on following pages. 09/14 May 5, 2015 7022-515B...

  • Page 26: Service Parts List

    CASTILE INSERT Castile Insert-B Service Parts Beginning Manufacturing Date: Feb 2011 D. Service Parts List Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor.
  • Page 27 CASTILE INSERT Castile Insert-B Service Parts Beginning Manufacturing Date: Feb 2011 Ending Manufacturing Date: Active 23.4 #23 Door Assembly 23.5 23.3 23.6 23.2 23.1 IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor.
  • Page 28 CASTILE INSERT Castile Insert-B Service Parts Beginning Manufacturing Date: Feb 2011 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor.
  • Page 29 CASTILE INSERT Castile Insert-B Service Parts Beginning Manufacturing Date: Feb 2011 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor.
  • Page 30 CASTILE INSERT Castile Insert-B Service Parts Beginning Manufacturing Date: Feb 2011 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor.
  • Page 31 CASTILE INSERT Castile Insert-B Service Parts Beginning Manufacturing Date: Feb 2011 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor.
  • Page 32 Hearth & Home Technologies 1445 North Highway Colville, WA 99114 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafi re.com CAUTION DO NOT DISCARD THIS MANUAL...
