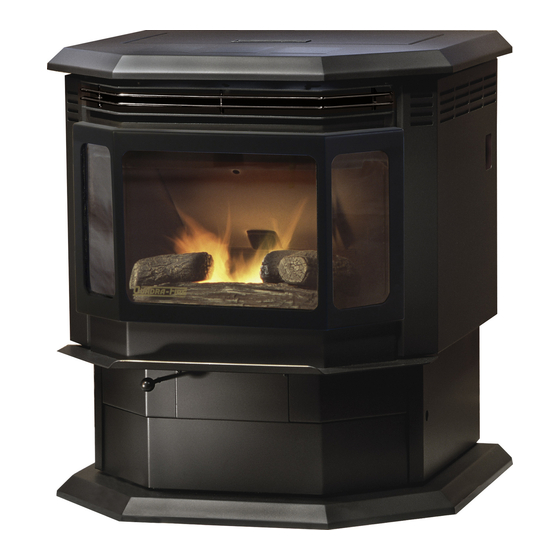

Quadra-Fire CB1200M-MBK Installation Manual
Classic bay 1200 pellet appliance
Hide thumbs
Also See for CB1200M-MBK:
- Installation and operation maintenance (52 pages) ,
- Owner's manual (48 pages) ,
- Owner's manual (48 pages)
Table of Contents
Advertisement
Quick Links
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
CLASSIC BAY 1200 PELLET
APPLIANCE
Model(s): CB1200M-MBK
CAUTION
Tested and approved for wood pellets and shelled field
corn fuel only. Burning of any other type of fuel voids
your warranty.
CAUTION
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and na-
tional codes and regulations.
• Consult local building, fire officials or authorities having juris-
diction about restrictions, installation inspection, and permits.
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
1
Installation Manual
Installation & Appliance Set-Up
NOTICE: DO NOT DISCARD THIS MANUAL
If the information in these instruc-
tions is not followed exactly, a
fire could result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not over fire - If appliance or chimney
connector glows, you are over firing. Over
firing will void your warranty.
• Comply with all minimum clearances to
combustibles as specified. Failure to
comply may cause house fire.
Hot glass will cause burns.
•
Do not touch glass until it is cooled
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room as
fireplace.
•
Alert children and adults to hazards of high temperatures
•
High temperatures may ignite clothing or other
flammable materials.
•
Keep clothing, furniture, draperies and other flammable
materials away.
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrafire.com
Pour obtenir une traduction française de ce manuel, s'il vous
plaît contacter votre revendeur ou visitez www.quadrafire.com
7014-258B
WARNING
WARNING
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
NOTE
November 30, 2017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Quadra-Fire CB1200M-MBK
Summary of Contents for Quadra-Fire CB1200M-MBK
- Page 1 CLASSIC BAY 1200 PELLET tions is not followed exactly, a fire could result causing property APPLIANCE damage, personal injury, or death. Model(s): CB1200M-MBK • Do not store or use gasoline or other flam- mable vapors and liquids in the vicinity of this or any other appliance. • Do not over fire - If appliance or chimney connector glows, you are over firing. Over...
-
Page 2: Table Of Contents
A. Appliance Dimensions ............7 A. Service & Maintenance Log ..........25 B. Clearances to Combustibles (UL and ULC) .......10 B. Accessory List ..............27 C. Hearth Pad Requirements (UL and ULC) ......11 D. Alcove................12 Vent Information .......13 A. Venting Termination Minimum Requirements ....13 B. Avoiding Smoke and Odors ..........14 C. Negative Pressure .............15 D. Draft..................15 E. Chimney and Exhaust Connection ........15 F. Equivalent Feet of Pipe .............16 G. Pipe Selection Chart ............16 Quadra-Fire is a registered trademark of Hearth & Home Technologies. 7014-258B November 30, 2017... -
Page 3: Important Safety Information
04, ULC S627-00, (UM) 84-HUD and ULC/ORD-C-1482. G. Combustible Materials Material made of/or surfaced with any of the following materials: B. BTU & Efficiency Specifications - Wood - Compressed Paper - Plant Fibers - Plastic The Quadra-Fire CB1200 Pellet Appliance meets the U.S. Environ- - Plywood/OSB - Sheet Rock (drywall) mental Protection Agency’s emission limits for pellet appliances Any material that can ignite and burn: flame proofed or not, plas- sold after May 15, 2015. tered or non-plastered. This pellet appliance needs periodic inspection and repair for proper operation. It is against federal regulations to operate this pellet... -
Page 4: Getting Started
CB1200 FREESTANDING Install Guide Getting Started A. Design, Installation & Location Considerations Since pellet exhaust can contain ash, soot or sparks, you must consider the location of: 1. Appliance Location • Windows NOTICE: Check building codes prior to installation. • Air Intakes • Installation MUST comply with local, regional, state and • Air Conditioner national codes and regulations. -
Page 5: Thermostat Wall Control Location
CB1200 FREESTANDING B. Thermostat Wall Control Location D. Inspect Appliance and Components The thermostat wall control’s location will have some affect WARNING! Risk of Fire! Damaged parts could impair on the appliance’s operation. safe operation. Do NOT install damaged, incomplete or • Maximum wire length from appliance is 100 feet (30.48m) substitute components. -
Page 6: Install Checklist
CB1200 FREESTANDING E. Install Checklist ATTENTION INSTALLER: Follow this Standard Work Checklist This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this installation manual. __________________________________________________________________________ Customer: ______________________________________________________________________ Date Installed: _______________________________________________________________________ Lot/Address: ________________________________________________________________... -
Page 7: Dimensions And Clearances
CB1200 FREESTANDING Dimensions and Clearances A. Appliance Dimensions 6-1/4 [203] [203] [159] Figure 7.1 - Top View 27-5/8 [702] 25-3/4 [654] 28-1/2 [724] 10-3/8 [264] 31-5/8 [803] [204] 21-1/4 [539] 28-1/2 [725] 25-3/4 [654] Figure 7.2 - Side View Figure 7.3 - Front View November 30, 2017 7014-258B... - Page 8 CB1200 FREESTANDING 14-1/4 [362] 14-1/4 [362] [127] [127] 2-3/8 3-5/8 2-3/8 2-3/4 [94] [69] [62] [62] Figure 8.1 - Top View with Top Vent Adapter Figure 8.3 - Top View with Top Vent Adapter (TPVNT-1) and Offset Adapter (812-3570) (TPVNT-1) and Offset Adapter (811-0720) 33-1/8 33-3/8 [841]...
- Page 9 CB1200 FREESTANDING 6-1/4 [203] [203] [159] 3-7/8 2-3/8 2-3/4 [69] [100] [62] Figure 9.1 - Top View with Top Vent Adapter (TPVNT-6) and Offset Adapter (811-0720) 15-51/8 [398] [357] Figure 9.2 - Side View with Top Vent Adapter (TPVNT-6) and Offset Adapter (811-0720) November 30, 2017 7014-258B...
-
Page 10: Clearances To Combustibles (Ul And Ulc)
CB1200 FREESTANDING B. Clearances to Combustibles (UL and ULC) Horizontal Through the Wall Inches Millimeters Back Wall to Appliance Side Wall to Appliance Corner Installation Inches Millimeters Walls to Appliance Installations with: TPVNT-1 Top Vent Adapter with Heat Shield and Clean-out TPVNT-6 Top Vent Adapter with Clean-out 811-0720 (3”... -
Page 11: Hearth Pad Requirements (Ul And Ulc)
CB1200 FREESTANDING C. Hearth Pad Requirements (UL and ULC) USA INSTALLATIONS: A non-combustible floor protec- EMBER PROTECTION: It is necessary to install a Type I tion is recommended extending beneath the flue pipe when floor protector. installed with horizontal venting or under the Top Vent Floor protector must be non-combustible material, extending Adapter with vertical installation. beneath appliance with a minimum of 6 inches (152mm) in CANADA INSTALLATIONS: A non-combustible floor pro- front of glass and 6 inches (152mm) to both sides of the tection extending beneath the flue pipe is required with hor-... -
Page 12: Alcove
CB1200 FREESTANDING D. Alcove Figure 12.2 Figure 12.1 Minimum* Maximum Inches Millimeters Inches Millimeters Height 1117 Width 40.5 1029 Depth To Side Wall *All minimums listed are to a combustible surface. NOTE: • Illustrations reflect typical installations and are FOR DESIGN PURPOSES ONLY. • Illustrations/diagrams are not drawn to scale. • Actual installation may vary due to individual design preference. -
Page 13: Vent Information
CB1200 FREESTANDING Vent Information A. Venting Termination Minimum Requirements Electrical Service Inside Corner FIXED FIXED OPEN CLOSED CLOSED OPEN J or K Figure 13.1 Termination Cap Restricted Area Air Supply Inlet Gas Meter All minimum clearances are listed with an Outside Air Kit (OAK) installed, unless otherwise noted in table below. 12 in. -
Page 14: Avoiding Smoke And Odors
CB1200 FREESTANDING B. Avoiding Smoke and Odors Vent Configurations Negative Pressure, Shut-Down and Electrical Power When installing a pellet appliance with a horizontal vent con- Failure figuration the frequency of power outages should be consid- To reduce the probability of back-drafting or burn-back in ered: the pellet appliance during power failure or shut down con- ditions, it must be able to draft naturally without exhaust •... -
Page 15: Negative Pressure
• Imbalances of the HVAC air handling system • Upper level air leaks such as: 2. Mobile Home: Approved for all Listed pellet vent. If using the - Recessed lighting 3 inch (76mm) vertical Top Vent Adapter Kit or the 3 to 6 inch (76-152mm) Top Vent Offset Adapter, use Listed double wall - Attic hatch flue connector. A Quadra-Fire Outside Air Kit must be used with - Duct leaks manufactured home installations. To minimize the effects of negative air pressure: • Install the outside air kit with the intake facing prevailing 3. Residential: The 3 inch (76mm) vertical Top Vent Adapter Kit and winds during the heating season the 3 to 6 inch (76-152mm) Top Vent Offset Adapter are tested •... -
Page 16: Equivalent Feet Of Pipe
CB1200 FREESTANDING F. Equivalent Feet of Pipe WARNING The table below can help you calculate the equivalent feet Vent surfaces get HOT, can cause burns if of pipe which is a method used to determine pellet vent size. touched. Non-combustible shielding or guards Figure 16.1. may be required. Example of 3 Elbow-Rear Vent Termination Calculation Pellet Venting # of... -
Page 17: Venting Systems
In Canada, where passage through a wall or partition of com- (152mm) from the wall. Approved for mobile home installa- bustible construction is desired, the installation shall conform to tions. Must use 3 or 4 inch (76-102mm) “L” or “PL” Listed CAN/CSA-B365 pellet venting or Listed double wall pipe and a Quadra-Fire NOTICE: Outside Air Kit in mobile homes. Please note that while the minimum clearance for the ter- mination cap is 6 inches (152mm) there is the possibility CAUTION of soot build-up around the termination area. If this occurs... -
Page 18: Vertical Into Existing Class A Chimney
CB1200 FREESTANDING B. Vertical into Existing Class A Chimney All three installations are approved for mobile home installa- Rain Cap tions. Must use 3 or 4 inch (76 to 102mm) “L” or “PL” Listed pellet venting or Listed double wall pipe and Quadra-Fire Outside Air Kit in mobile homes. Single wall pipe is approved for residential installations only. Flashing 24 in. (610mm) *NOTE: Clearance to combustibles are for standard pellet minimum pipe. If pellet pipe manufacturer allows reduced clearances... -
Page 19: Masonry
CB1200 FREESTANDING WARNING Fire Risk. Inspection of Chimney: • Masonry chimney must be in good condition. • Meets minimum standard of NFPA 211 • Factory-built chimney must be a minimum 6 inch (152mm) UL103 HT. E. Masonry Fireclay Flue Concrete Cap Liner with Airspace Flashing 1 in. (25mm) Clearance with Firestop 1 in. (25mm) Clearance 3 in. (76mm) Minimum 6 in. (152mm) Sheathing Minimum Cleanout Cover Airtight... -
Page 20: Appliance Set-Up
CB1200 FREESTANDING Appliance Set-Up A. Outside Air Kit Instructions 2. Floor Installation a. Remove rear screen and set aside. Included in Kit: 1 piece of 2 inch x 3 foot flex hose, 2 hose clamps, 1 collar assembly, termination cap assembly, 1 trim b. Install cover plate over hole in right rear floor. ring, 12 screws. c. Cut a 2 inch minimum hole in the floor to accommodate flex hose. -
Page 21: Top Vent Adapter Installation
CB1200 FREESTANDING C. Rear Vent & Rear Vent to Top Vent Adapter B. Top Vent Adapter Installation Installation 1. Put a layer of high temperature silicone on the 3 inch 3 to 3 inch Top Vent Adapter (76mm) exhaust outlet. 3 to 6 inch Top Vent Offset Adapter 2. Slide the adapter onto the rear exhaust outlet and adjust the assembly to the appropriate position. Installing the Top Vent Adapter 3. Install the vent pipe into the adapter (be sure to silicone 1. Put a layer of high temperature silicone on the 3 inch... -
Page 22: Optional Log Set Placement Instructions
CB1200 FREESTANDING D. Optional Log Set Placement Instructions E. Installing Logo 1. Place the front log in first as shown in Figure 22.1. Place 1. Remove logo from packaging. log between fire pot and face of appliance with charred 2. The logo has 2 studs on the back. area surrounding fire pot. 3. I nstall the logo on the lower left side of the center panel by pressing the 2 studs into the already drilled holes. See 2. Set the left and right logs onto the front log, placing Figure 22.4. -
Page 23: Thermostat Operation
CB1200 FREESTANDING Battery Installation and Replacement Press and pull Press and pull NOTE: 2 AA batteries are included with the thermostat to remove to remove and must be installed before the appliance can be oper- ated (see Figure 23.3). Install fresh batteries immediately when the REPLACE BATTERY warning begins flashing. The warning flashes about two months before the batteries are depleted. -
Page 24: Mobile Home Installation
CB1200 FREESTANDING Mobile Home Installation You must use a Quadra-Fire Outside Air Kit CAUTION for installation in a mobile home. THE STRUCTURAL INTEGRITY OF THE MOBILE HOME An outside air inlet must be provided for the combustion air and FLOOR, WALL AND CEILING/ROOF MUST BE MAINTAINED must remain clear of leaves, debris, ice and/or snow. It must Do NOT cut through: be unrestricted while the appliance is in use to prevent room • Floor joist, wall, studs or ceiling trusses. -
Page 25: Accessory List
CB1200 FREESTANDING Accessory List A. Service & Maintenance Log Date of Service Performed By Description of Service November 30, 2017 7014-258B... - Page 26 CB1200 FREESTANDING Date of Service Performed By Description of Service 7014-258B November 30, 2017...
-
Page 27: Accessory List
CB1200 FREESTANDING B. Accessory List CB1200M-MBK Service Parts Beginning Manufacturing Date: April 2009 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor. -
Page 28: November
Hearth & Home Technologies 352 Mountain House Road Halifax, PA 17032 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafire.com CAUTION DO NOT DISCARD THIS MANUAL...
