ADT Pulse OC835-ADT Quick Installation Manual

Wireless outdoor hd camera
Hide thumbs

Advertisement

ADT Pulse
Interactive Solutions
®
OC835-ADT
Wireless Outdoor HD Camera
Quick Installation Guide

Advertisement

loading

  Related Manuals for ADT Pulse OC835-ADT

  Summary of Contents for ADT Pulse OC835-ADT

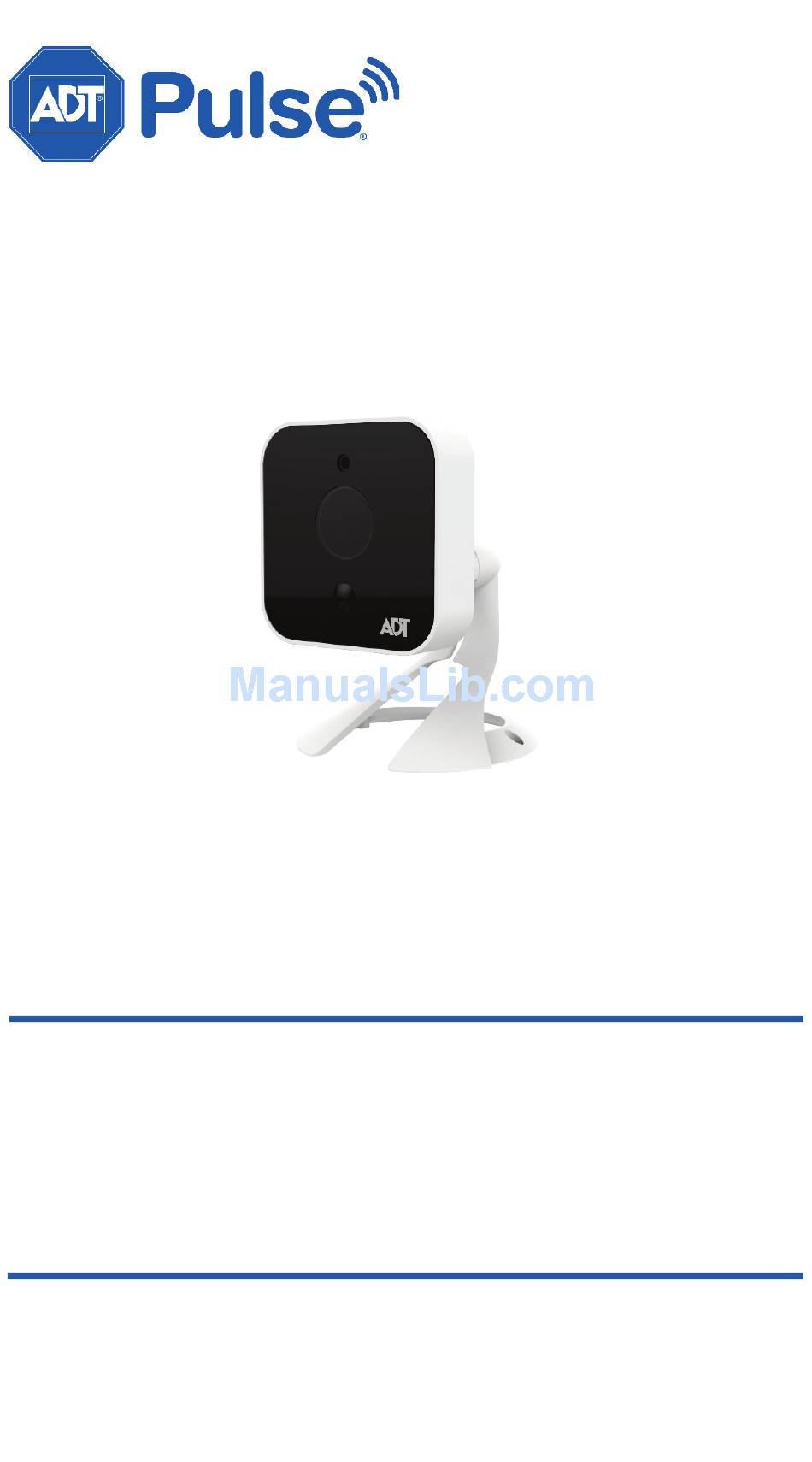

  • Page 1 ADT Pulse Interactive Solutions ® OC835-ADT Wireless Outdoor HD Camera Quick Installation Guide...
  • Page 2: Table Of Contents

    Using a Wireless Connection Enroll the Camera ........15 CHAPTER 4 WALL MOUNTING ..............19 APPENDIX A SPECIFICATIONS ..............23 OC835-ADT Outdoor Day/Night HD Camera ..........23 Regulatory Approvals ..................24 Property of ADT, LLC. Information accurate as of published date and is provided “as is”...
  • Page 3: Chapter 1 Introduction

    This section provides information about the OC835-ADT Outdoor Day/Night HD Camera's features, components and capabilities. Overview The OC835-ADT is a true outdoor day/night wireless camera with HD resolution, 802.11n Wi-Fi connectivity and Wi-Fi Protected Setup (WPS) support. This camera is intended for use with ADT Pulse ®...
  • Page 4 Wireless HD Camera to the wireless network by using the push button configuration. • Wired and Wireless Network. The OC835-ADT can be connected to the Pulse network wirelessly. It can also be hardwired to the network. OC835-ADT Outdoor HD Camera Installation Guide...
  • Page 5: Physical Details

    This is a hardware sensor to detect lux. Lens The lens cannot be adjusted. Please ensure that the lens cover remains clean. PIR Sensor This is a Passive Infrared sensor to detect motion. OC835-ADT Outdoor Day/Night HD Camera Installation Guide...
  • Page 6 Blinking (Green). Data is being transmitted or received via the wired/wireless connection. On (Amber). If the LED is on for 5 seconds and then turns off, the WPS function has failed. Blinking (Amber). The WPS connection is active. OC835-ADT Outdoor HD Camera Installation Guide...
  • Page 7 OFF. Attaching or detaching the Micro USB to RJ-45 Adapter Cable while the camera is powered on does NOT switch the interface between wired and wireless. OC835-ADT Outdoor Day/Night HD Camera Installation Guide...
  • Page 8: Package Contents

    Chapter 1 Introduction Package Contents The following items are included in the package. Figure 3: What’s in the Box OC835-ADT Outdoor HD Camera Installation Guide...
  • Page 9: Chapter 2 Basic Setup

    2. Make the Connection Using a Wired Connection If you are using a wired connection to the OC835-ADT, connect a Micro USB to RJ-45 Adapter Cable (not included) to the USB port of the camera. Then use a standard Ethernet cable (not included) to connect to the Pulse Gateway or Total Security (TS) Base panel.
  • Page 10: Mount The Camera

    LED will turn solid green when the wireless connection is successful.) 5. Enroll the Camera in ADT Pulse This process is described in the next chapter, ADT Pulse Enrollment. 6. Mount the Camera Place the camera in a location near a power source. For mounting on a wall using the mounting plate, see Chapter 4 Wall Mounting on page 19.
  • Page 11: Chapter 3 Adt Pulse Enrollment

    Pulse Portal or TS Installer App. (2) The second method uses WPS to wirelessly enroll the HD Camera to a Gateway or TS Base panel via the ADT Pulse Portal or TS Installer App. The WPS method is described beginning on page 15.
  • Page 12 8. Ensure that the camera is connected to the device port of the Gateway using the Micro USB to RJ-45 Adapter Cable / Ethernet cable and connected to the supplied 12VDC power adapter. After the Power and Network LEDs turn on solid green, click Continue. OC835-ADT Outdoor HD Camera Installation Guide...
  • Page 13 11. Assign the camera a unique name (usually based on the location of the camera) in the Name field, and then click the Save button at the upper right of the screen. OC835-ADT Outdoor Day/Night HD Camera Installation Guide...
  • Page 14 Click Close. 15. Click Close again to confirm. 16. Disconnect the camera from the Gateway and remove from power. 17. Install the camera in its final location. For Wall Mounting, refer to Chapter 4. OC835-ADT Outdoor HD Camera Installation Guide...
  • Page 15: Using A Wireless Connection Enroll The Camera

    4. In the Manage Devices screen, click Cameras. 5. Click the Add Using WPS button, located at the bottom of the screen. 6. Locate the camera’s PIN number on the label on the rear of the camera. OC835-ADT Outdoor Day/Night HD Camera Installation Guide...
  • Page 16 Network/WPS LED turns solid green. Note: You must complete the WPS connection within 2 minutes or else the process will time out. The time remaining is displayed in the upper left portion of the screen. OC835-ADT Outdoor HD Camera Installation Guide...
  • Page 17 Chapter 3 ADT Pulse Enrollment 10. When the Camera Details screen appears, showing that the camera has been enrolled, assign the OC835-ADT a unique name (usually based on the location of the camera) in the Name field, and then click Save.
  • Page 18 3. If the previous measure fails, press the camera’s reset button for 15 seconds, and then re-enroll the camera into Pulse. 4. If the previous measure fails, install a Wi-Fi Range Extender model WN3000RPH-2ADPAS. OC835-ADT Outdoor HD Camera Installation Guide...
  • Page 19: Chapter 4 Wall Mounting

    Chapter 4 Wall Mounting This section provides details for final mounting of the OC835-ADT Outdoor Day/Night HD Camera. Note: Ensure that the camera is configured and enrolled in ADT Pulse before permanently mounting it. 1. Locate an unused, non-switchable, indoor outlet to plug the AC/DC Power Adapter to plug into.
  • Page 20 CAUTION: Ensure that the grommet is positioned properly to prevent water from entering the camera. 10. Rotate the power input cover clockwise to tighten it, providing a watertight seal for the power cable. Figure 8: Securing the Power Cable OC835-ADT Outdoor HD Camera Installation Guide...
  • Page 21 Figure 9: Routing the Power Cable 14. Adjust the camera to a desired position and secure it firmly. 15. Verify that the camera is active on the wireless network and is recognized by Pulse. OC835-ADT Outdoor Day/Night HD Camera Installation Guide...
  • Page 22 If installing on a tabletop, place the camera as close to the edge as possible. If installing on a wall, angle the camera so that a minimal portion of the wall is visible. OC835-ADT Outdoor HD Camera Installation Guide...
  • Page 23: Appendix A Specifications

    Network Interface to RJ-45 Adapter Cable IEEE 802.11n/802.11b/802.11g compatible, WEP Wireless Interface 64/128 bit, WPA/WPA2 personal security support Button 1, WPS/Network LEDs 2, Power and Network/WPS IR LEDs Power Adapter 12VDC/1.5A, 100 to 240VAC OC835-ADT Outdoor HD Camera Installation Guide...
  • Page 24: Regulatory Approvals

    (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. OC835-ADT Outdoor HD Camera Installation Guide...
