Features
Advantages
Benefits
The RPE 228 provides significant features,
advantages and benefits that are desirable and
necessary for the successful use of a broadband
equalizer by a designer or installer. While
being a superb equalizer, the real secret to its
success is the unmatched user friendly aspect of
the software.
More than two years of careful field-testing has gone
into the RPE 228, to ensure that reliability and
critical performance criteria are met or exceeded in
real world applications. The unit is tamper-proof,
meaning that when it is installed and configured, it
will not allow unauthorized personnel to alter or
manipulate its settings or functions unless such
access is intended. This level of security is provided
through a combination of hardware and software
features. The first section of this guide, Hardware,
outlines significant advantages of the basic unit itself.
The second section, Software, features functions
under computer control, including step-by-step
Software installation and operation.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rane rpe 228
Summary of Contents for Rane rpe 228
- Page 1 More than two years of careful field-testing has gone into the RPE 228, to ensure that reliability and critical performance criteria are met or exceeded in real world applications. The unit is tamper-proof,...

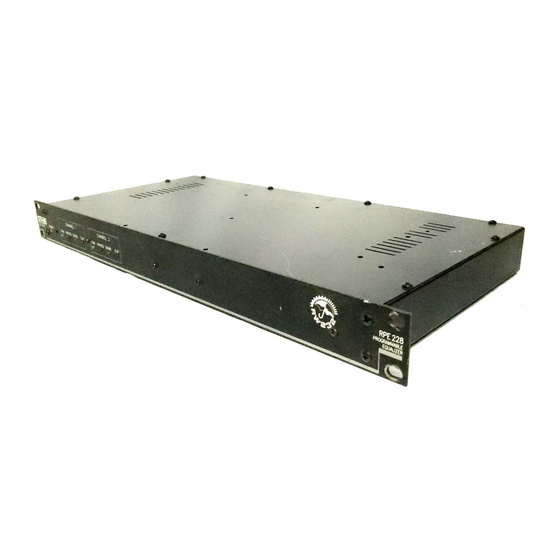

- Page 2 Hardware • The RPE 228 is a standard one rackspace (1U) high, full 19-inch wide unit. • The unit is tamper-proof, and does not reuqire a computer for daily operation. • The front panel provides critical information that is most helpful to a technician or end-user. While Rane subscribes to the concept that tamper-proof programmable equalizers are important, Rane believes that technicians can greatly benefit from status indicators.
- Page 3 RS 232 Control DB9 Connectors; The INPUT connector receives direction from a PC via a standard serial port, or is a loop-through from another RPE 228. The OUTPUT connector extends the communications loop to the next unit — we even supply the 18”...
- Page 4 Installation now proceeds, as this screen verifies less than 50' long, connecting from the serial port file locations. of a computer to the RPE 228 communications input port. No interface boxes are required; just a cable and your computer. • RaneWare 232 can be fully demonstrated and used without an actual RPE 228 attached.
- Page 5 Changing curves. Go ahead, grab any slider with the mouse cursor. An accurate representation of the full audio frequency re- sponse is portrayed in the graph. Once a filter band is selected, clicking above or below the slider can make fine half decibel adjustments.
- Page 6 Presets can be customized with names, When multiple units are connected, assign through each unit a unique Device Address number. Rane Here each memory can have a logical name. provides a special calculator to assist in setting the dip switches on the back of each unit. Alt-...
- Page 7 In conclusion, the real key to your success mobile sound trucks, presets for a particular with the RPE 228 and RaneWare 232 is a little venue can be saved to disk and loaded when practice (remember, the software can be used returning to that venue.
- Page 8 6) Detachable Euroblocks Quick hookup Fast installation/service, no extra cost 7) 232 serial port Standard protocol No extra “black boxes” 8) Rane Power Supply Safety agency exempt Meets safety requirements 9) Dipswitch Selectable ID Easy to set and change Access, flexibility, expandability...
