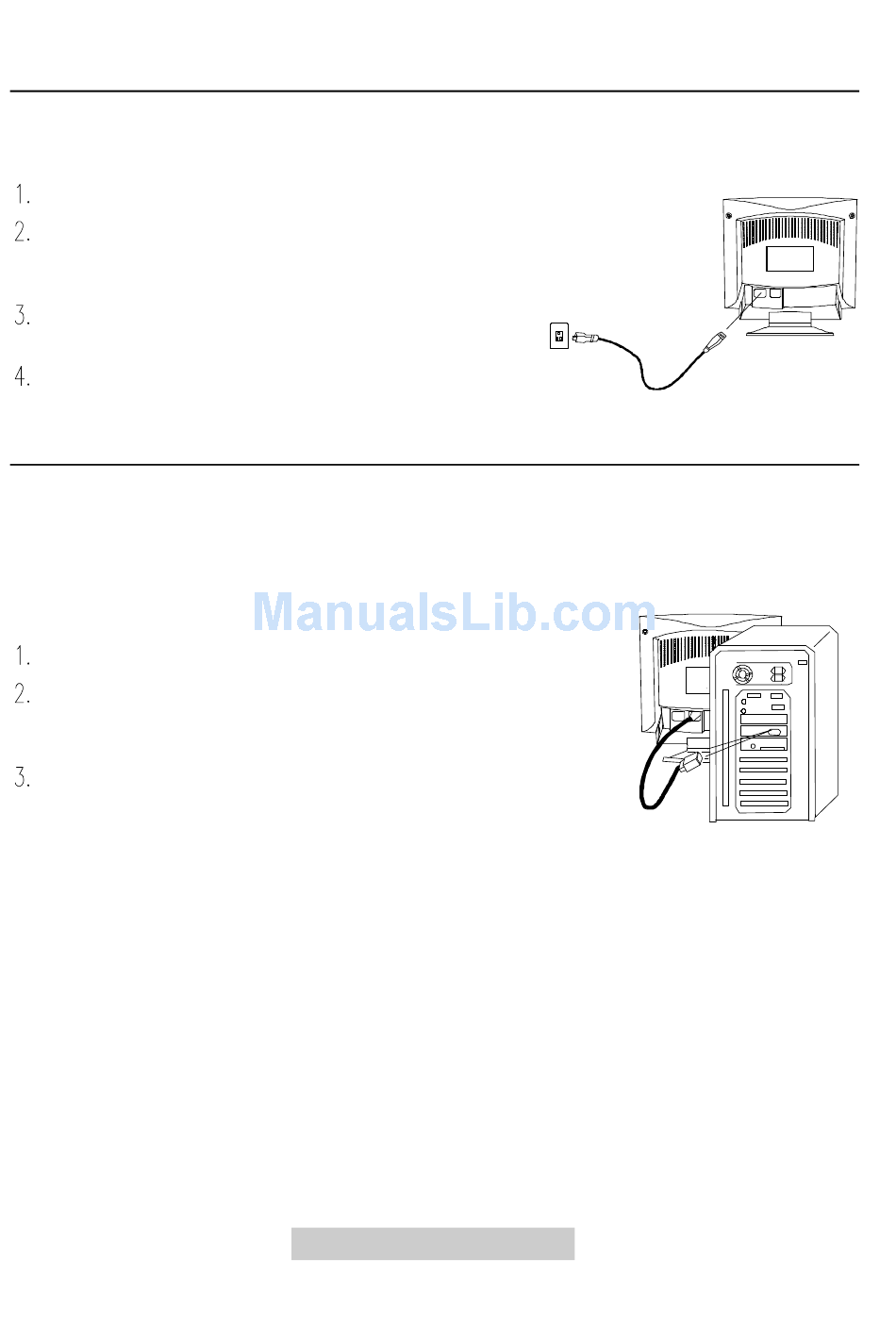

Installing the Monitor

This monitor is equipped with an autosensing power supply for voltage ranges
90~264V, AC 47~63Hz.. Please confirm the line voltage designation at the rear panel
of the monitor before connecting the machine.
Make sure that the system power is turned off.
Please refer to the instructions below to
connect the signal cable through D-SUB or
BNC.
Connect the power cord to the monitor and
attach it to power source.
Turn on the computer and the monitor.

Connecting the Signal Cable

Your AcerView 79g provides both D-SUB and BNC signal connectors. The D-SUB or
BNC signals can automatically be detected by its microprocessor.
Connecting through D-SUB signal
connector
Make sure that the system power is turned off.
Connect the computer end of the D-SUB cable to the
15-pin output connector on the video board of your
computer.
Connect the monitor end of the D-SUB cable to the D-
SUB receptacle on the back of the monitor.
2 Getting Started
