Acer View 54e User Manual

Acer View 54e User Manual

15” monitor, 13.6” viewable image
Hide thumbs Also See for View 54e:
Table of Contents

Advertisement

Quick Links

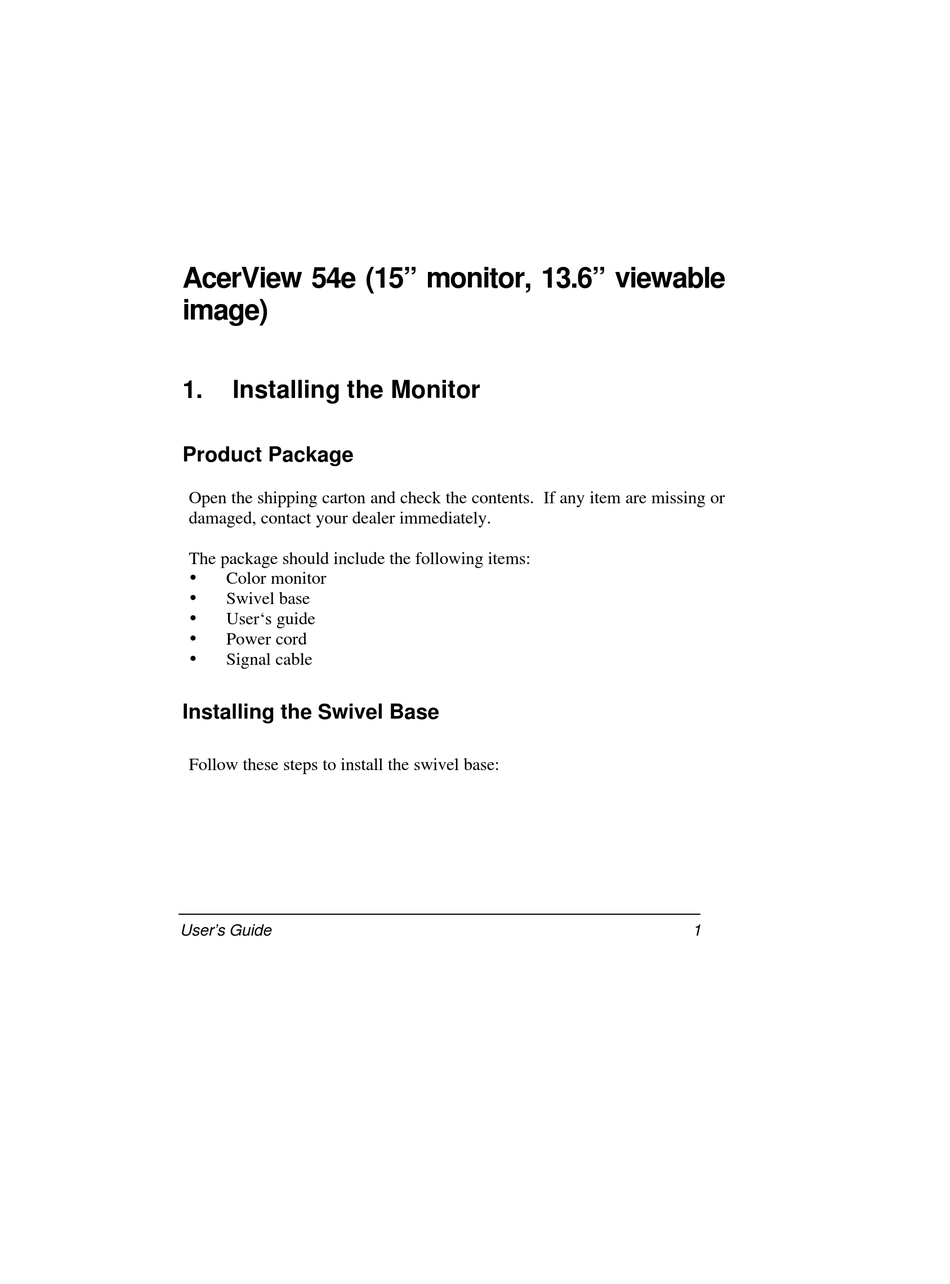

AcerView 54e (15" monitor, 13.6" viewable
image)
1.

Installing the Monitor

Product Package
Open the shipping carton and check the contents. If any item are missing or
damaged, contact your dealer immediately.
The package should include the following items:
Ÿ
Color monitor
Ÿ
Swivel base
Ÿ
User's guide
Ÿ
Power cord
Ÿ
Signal cable
Installing the Swivel Base
Follow these steps to install the swivel base:
User's Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the View 54e and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acer View 54e

Summary of Contents for Acer View 54e

  • Page 1: Installing The Monitor

    AcerView 54e (15” monitor, 13.6” viewable image) Installing the Monitor Product Package Open the shipping carton and check the contents. If any item are missing or damaged, contact your dealer immediately. The package should include the following items: Ÿ Color monitor Ÿ...
  • Page 2 Turn the monitor on its side or upside-down. Insert the pegs on the swivel base into the cavities at the bottom of the monitor. Push on the swivel base until the latch clicks shut. Installing the Monitor This monitor is equipped with an autosensing power supply for voltage ranges 100-120VAC/200-240VAC, 60/50 Hz.
  • Page 3 connector. Connect power cable. User’s Guide...

  • Page 4: Control Functions

    Control Functions The monitor digital control functions are located on the front panel. They are shown in the figure below and described in the following paragraphs. 1. Power Switch 7. Vertical Size 2. Adjust 8. Horizontal Phase 3. Select 9. Horizontal Size 4.

  • Page 5: Led Indicators

    LED indicators Each LED represents a different display adjustment. Use the Select button to choose the item to be adjusted and the Adjust button to change the setting. Brightness: Adjusts the brightness of the display. Contrast: Adjusts the contrast, the difference between the light and dark areas on the screen.

  • Page 6: Power Switch

    or bottom of the display The LED indicator goes off after 20 seconds of inactivity. If any settings have changed, the monitor automatically saves the new settings. Select Press the button to cycle through the adjustment options to choose H-Phase, H-Size, V-Center, V-Size, Contrast, Brightness, Trapezoid, and Pincushion.

  • Page 7: How To Adjust The Monitor

    How To Adjust the Monitor Press the Select key ( ) to choose the item to be adjusted. Press the Adjust key ( ) to change the setting. Repeat the above procedure to change other items. The monitor automatically saves the new settings after 20 seconds of inactivity.

  • Page 8: User Setting Area

    User Setting Area The user setting area on the microcontroller maintains in its memory the last 20 display modes set by the user. You can change the settings, or add a nonstandard mode. The microcontroller always detects and displays the last mode stored in the user setting area first when the monitor is turned on.

  • Page 9: Signal Connector Pinouts

    Signal Connector Pinouts To connect VGA, 8514A or IBM-compatible graphics adapters, use a 15- pin mini D-type male connector. 15-Pin Mini D-Type Male Connector Assignment Red Video Green Video Blue Video Ground Ground Red Ground Green Ground Blue Ground No Connection Sync Ground Ground Serial Data I/O...

  • Page 10: Power Saving Feature

    Power Saving Feature This monitor’s power saving feature complies with these VESA power saving modes: Mode H.Sync V.Sync Power Consumption Normal Green 90 w Stand-by Amber <15 w Suspend Amber <15 w Amber <5 w Blinking The monitor uses the H.Sync and V.Sync signals to determine the operation mode to enter.

  • Page 11: Specifications

    Specifications Picture tube Size: 15-inch (38 cm) diagonal Dot pitch: 0.28 mm Surface/transmission: Non-glare/semi-tinted 13.6-inch (34.6 cm) diagonal Maximum viewable size Video input 15-pin, D-sub connector, analog (positive) Bandwidth 65 MHz Display area 270 mm x 202 mm (H x V) Power supply (Universal) Input voltage: 90V~264V / 47~63 Hz...

  • Page 12: Factory Preset Display Modes

    Factory Preset Display Modes Mode Resolution V. Frequency H. Frequency 640 x 400 70 Hz 31.47 KHz 640 x 480 60 Hz 31.47 KHz 640 x 480 72 Hz 37.86 KHz 640 x 480 75 Hz 37.5 KHz SVGA 800 x 600 60 Hz 37.88 KHz SVGA...
