Installation Instructions for
Tek-VIEW
Video Intercom System
APPLICATION
®
The Tek-VIEW
intercom system is a combination of an
audio communication system and a video monitoring system.
This provides both visual identification of the caller, and
audio communication between the caller and the resident.
Audio communication uses an amplified handset intercom
system at the apartment and a hands-free loudspeaker at the
entrance panel. Entry is controlled via a push button actuated
electric door release.

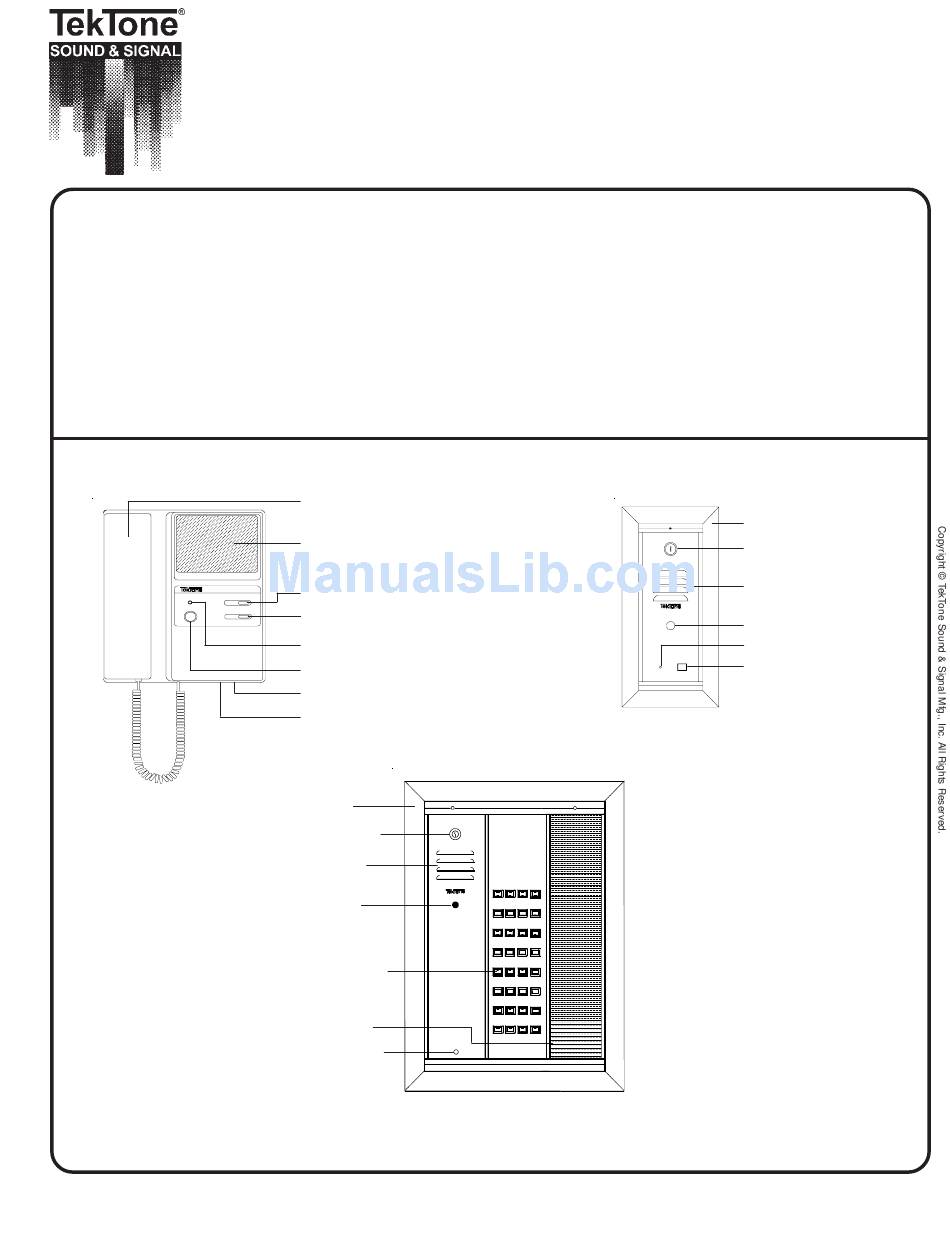

VM104 Black & White Video Monitor
VM104
MONITOR
STANDBY
DOOR
ALPHA COMMUNICATIONS
Toll-Free Technical Line: 1-800-666-4800 • Phone: (631) 777-5500 • Fax: (631) 777-5599
Website: www.alpha-comm.com • Email: info@alpha-comm.com
®
Handset
4 Inch Flat Tube
Monitor Button
Door Release Button
Power On LED
Standby Switch
Contrast Control
Brightness Control
Frame
Panel Lock
Speaker
Camera
Call Buttons
Directory
Microphone
VM320B Camera Panel, CM190/32 Button Panel,
AM190D Directory and OF193 Frame
®
• 42 Central Drive • Farmingdale, NY 11735-1202
Available options include up to three entrances, P.O. key
door release and multiple monitors in one suite. Contact your
®
TekTone
dealer for details.
PROCEDURE
1. Read installation instructions before proceeding.
2. Install housings and wiring.
3. Connect wires and install equipment.
4. Apply power and check operation.
VM600B Entrance Panel
IL498
Section A
Rev. 11 - 03/2005
Frame
Panel Lock
Speaker
Camera
Microphone
Call
Button
