Carver 42 SUPER SPORT Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

42 Super Sport
Owner's Guide
HIN: CDR _________________
2006 Version 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 42 SUPER SPORT and is the answer not in the manual?

Questions and answers

Related Manuals for Carver 42 SUPER SPORT

Summary of Contents for Carver 42 SUPER SPORT

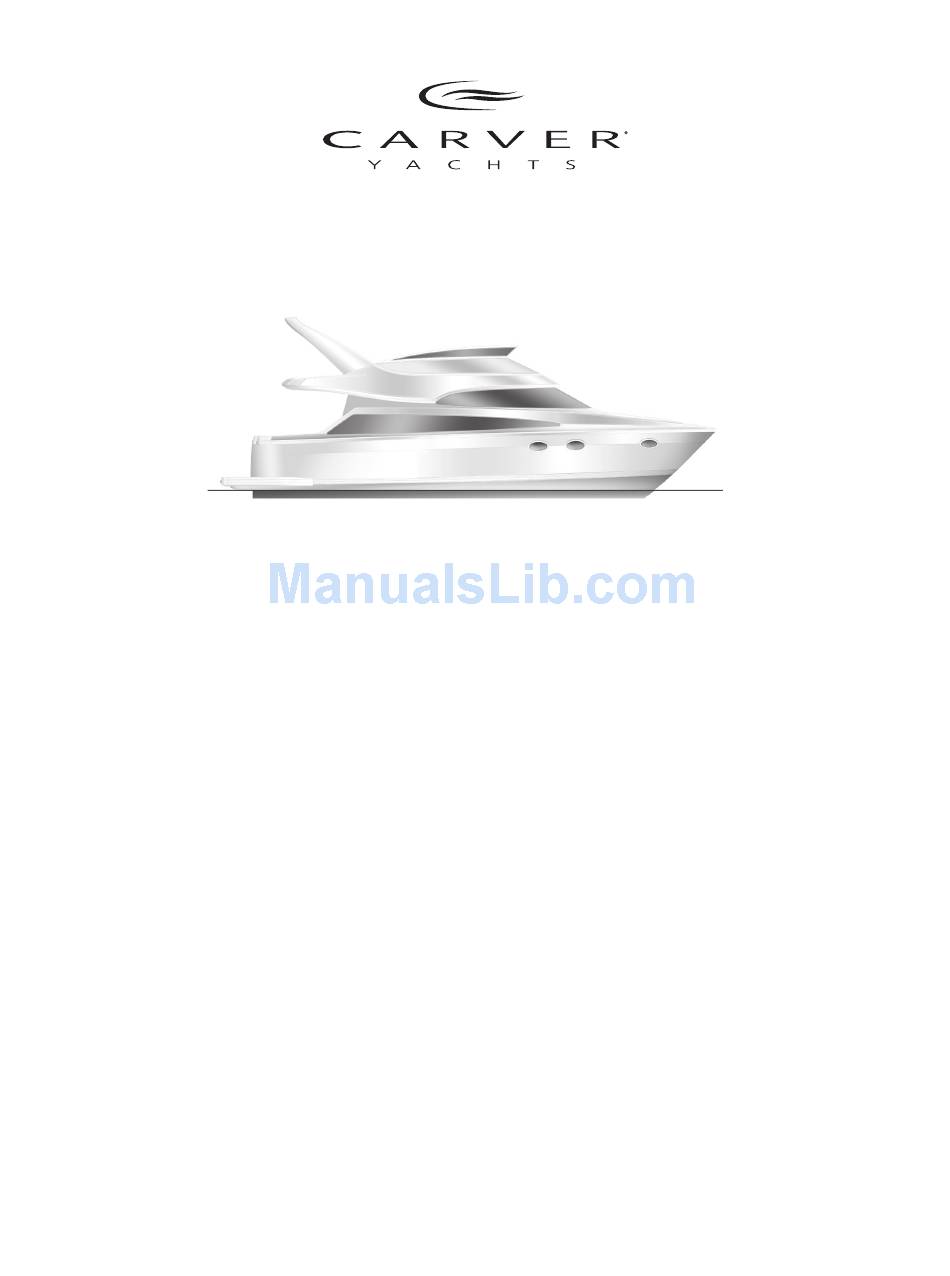

  • Page 1 42 Super Sport Owner’s Guide HIN: CDR _________________ 2006 Version 1...
  • Page 3 This Owner’s Guide was designed to acquaint you with the safe, proper operation and maintenance of your new boat and its systems. Your first duty as Captain of your new Carver should be to read your Owner’s Guide and all manufacturer-supplied operating and maintenance instructions found within your Owner’s Information kit.

  • Page 5: Table Of Contents

    Helm Controls ..... . 77 Preparing for Cruising ....78 4127 • 42 Super Sport 4/06...
  • Page 7 Bill of Material ..... 128 Carver Limited Warranty ....129...

  • Page 9: Using Your Owner's Information Kit

    Do not reference these drawings to order parts or to service your boat. Contact your authorized Carver Dealer for any parts or service required for your boat. The information contained in this Owner’s Guide was complete and accurate at the time the guide was printed.

  • Page 10: Oem Information

    Pre-Delivery Service Record The Pre-Delivery Service Record that follows this page must be completed and signed by your Carver Dealer before you take delivery of your new Carver yacht. Your Carver Dealer will prepare your boat for delivery in accordance with the procedures detailed within this document.
  • Page 11 Telephone: ( ____ ) ___________________ Date of Purchase: _______________ Purchased From: ____________________________________________________ Boat Hull Identification Number: CDR _________________________________ Third Owner Registration does not extend, alter, or transfer the Carver Limited Warranty. Refer to the Carver Limited Warranty for details. SECOND OWNER REGISTRATION Owner's Name: _____________________________________________________...
  • Page 12 CARVER BOAT CORPORATION PO BOX 1010 PULASKI WI 54162-1010 CARVER BOAT CORPORATION PO BOX 1010 PULASKI WI 54162-1010...

  • Page 13: Section 1 - Boating Safety

    • Do not overload or improperly load your boat. • Do not travel faster than conditions warrant or beyond your abilities. • Do not operate your boat in weather or sea conditions beyond your skill and experience. 4127 • 42 Super Sport 4/06...
  • Page 14 • Drop a sea anchor over the stern to maintain the bow into the seas. If you do not have a sea anchor onboard, use a canvas bucket, tackle box, or other object that will work like an anchor. 4127 • 42 Super Sport 4/06...

  • Page 15: Emergency Procedures

    Every boater should develop a fire response plan to determine what kind of fire (fuel, electrical, etc.) might break out, where it might break out, and the best way to react. Have a plan and, if possible, assign responsibilities to others to allow quicker decisions and reactions. 4127 • 42 Super Sport 4/06...
  • Page 16 If necessary, station a crew member to hold the plug in place if the plug is applied from the inside. In all cases, station a crew member or passenger to watch the plugged area and alert others if it fails. 4127 • 42 Super Sport 4/06...
  • Page 17 If not rescued, the person will become exhausted or likely drown. In general, the colder the water, the faster body heat is lost. Personal flotation devices increase survival time because they provide insulation. 4127 • 42 Super Sport 4/06...

  • Page 18: Safety Equipment

    They must also be of a suitable size for each person onboard. Three PFDs (two wearable and one throwable) are required regardless of the number of persons onboard. 4127 • 42 Super Sport 4/06...
  • Page 19 Your boat must have an operable device that can produce a sound signal if conditions require. A horn is standard equipment on all Carver models. Boats longer than 39' 4", must have a bell and a whistle. These devices must meet the requirements of the Inland Navigational Rules Act of 1980.
  • Page 20 • Mirror • Suntan lotion • Spare propeller(s) • Tool kit • Ring buoy • Navigational charts • Mooring lines • Binoculars • Spare parts • Spare pump • Foul weather gear • Tow Rope 4127 • 42 Super Sport 4/06...

  • Page 21: Owner's Responsibilities

    Navigation (U.S. Coast Guard pamphlet #123), which explains the significance of various lights and buoys; the Boating Safety Training Manual and Federal Requirements For Recreational Boats. Check with your local U.S. Coast Guard station, your Carver Dealer, or a local marina about navigational aids unique to your area. Documentation The owner of a boat registered with the U.S.

  • Page 22: Drugs And Alcohol

    Check with your local U.S. Coast Guard office for relevant federal regulations. Your state’s Department of Natural Resources may have some publications available which deal with relevant state laws. 4127 • 42 Super Sport 4/06...
  • Page 23 ⅓ of your fuel to return, with the remaining ⅓ of your fuel in reserve for emergencies. • Have a second person onboard capable of taking over the boat’s operation in case you are disabled. 4127 • 42 Super Sport 4/06...

  • Page 24: Carbon Monoxide (Co) Warnings

    • Stow all loose gear securely. Fenders and docklines should be stowed immediately after getting underway. Carbon Monoxide (CO) Warnings Carver has installed CO detectors on your boat. Have these detectors professionally calibrated at regular intervals. Carbon monoxide (CO) is a colorless, odorless and tasteless gas which is emitted in all engine and generator exhaust.
  • Page 25 Open boat is underway using protective forward hatch or window. weather coverings. 4127 • 42 Super Sport 4/06...

  • Page 26: Identifying Co Exposure

    • Watering and itchy eyes • Flushed appearance • Throbbing temples • Inattentiveness • Inability to think coherently • Loss of physical coordination • Ringing in the ears • Tightness across the chest • Headache • Drowsiness 4127 • 42 Super Sport 4/06...

  • Page 27: Treating Co Exposure

    Failure to obey a warning label may result in serious injury or damage to the boat, its equipment, or any personal property on the boat. 4127 • 42 Super Sport 4/06...

  • Page 29: Dc Electrical System

    The master disconnect switches are located in the engine room on the forward bulkhead. Refer to Section 9 - Hatches and Engine Room for the exact location of the engine batteries. 4127 • 42 Super Sport 4/06...

  • Page 30: Monitoring Battery Voltage Levels

    You can determine the voltage level of each engine battery by activating the battery’s dedicated voltmeter. The voltmeters are located with the other engine gauges at the helm. To activate each engine’s voltmeter, turn the engine’s ignition key one position to the right. 4127 • 42 Super Sport 4/06...

  • Page 31: Charging The Batteries

    To operate the battery charger: 1. Provide AC power to the boat, from either a shore power source or the generator. Refer to Section 3 - Shore Power and/or Generator Power for more information. 4127 • 42 Super Sport 4/06...

  • Page 32: Battery Maintenance

    1. Ventilate the area of the spill. 2. Neutralize the acid in the electrolyte by pouring baking soda on the spill. 3. Remove the neutralized electrolyte using a disposable rag or paper towel. Disconnect the batteries before cleaning them. 4127 • 42 Super Sport 4/06...

  • Page 33: Operating The 12-Volt Equipment

    NOTE: Sometimes a circuit breaker location is labeled but no circuit breaker is present. In this case, the component named on the label is an option that is not installed on your boat. 4127 • 42 Super Sport 4/06...

  • Page 34: Dc Control Center

    This breaker controls the flow of electricity to the Bridge Breaker Panel. To supply power to the panel, switch this breaker “ON.” Refer to Section 2 - Bridge Breaker Panel for information on this panel. DC CONTROL CENTER 4127 • 42 Super Sport 4/06...
  • Page 35 “ON.” Lights - Aft Stateroom This breaker controls the flow of electricity to the light switches in the aft stateroom. To supply power to the switches, switch this breaker “ON.” 4127 • 42 Super Sport 4/06...
  • Page 36 This breaker controls the flow of electricity to the 12-volt outlet located at the optional lower helm. You can operate various types of 12-volt equipment from the outlet, such as a cellular phone, and laptop computer. Switch this breaker “ON” to activate the outlet. 4127 • 42 Super Sport 4/06...
  • Page 37 Trim tabs are used to improve the running angle of your boat while underway. Switch this breaker “ON” to activate the trim tab controls. Refer to Section 6 - Trim Tabs for more information on using the trim tabs. 4127 • 42 Super Sport 4/06...

  • Page 38: Bridge Breaker Panel

    2. On the Safety Breaker Panel, switch the Main - Two circuit breaker “ON.” 3. On the DC Control Center, switch the Bridge Electronics circuit breaker “ON.” The Bridge Breaker Panel contains the circuit breakers described on the following pages. 4127 • 42 Super Sport 4/06...
  • Page 39 To supply power to this system, switch this breaker “ON.” Refer to the OEM information for details on operating the Raydata repeater. Spare(s) These breakers are reserved for aftermarket accessories you install on your boat. BRIDGE BREAKER PANEL 4127 • 42 Super Sport 4/06...

  • Page 40: Safety Breaker Panel

    “ON” before using the shower, sinks or air conditioning. CO Detector Carver has installed carbon monoxide (CO) detectors on your boat for your safety. The CO detectors continuously check the air in the boat’s cabin for the presence of carbon monoxide. The CO Detector circuit breaker must be “ON”...
  • Page 41 ® This breaker controls the flow of electricity to the Volvo SeaKey telemetric equipment. This equipment is installed on all Carver yachts, but can only be activated with a current service subscription. If you have a subscription, then this breaker must be “ON” to provide electricity to the equipment. Refer to the OEM information for details on the SeaKey equipment.
  • Page 42 OEM information for details on operating the windlass. NOTE: The windlass circuit also contains an in-line fuse that protects the windlass switch solenoid. This fuse is located in the anchor chain locker on the fore deck. 4127 • 42 Super Sport 4/06...

  • Page 43: Troubleshooting The Dc Electrical System

    Battery does not hold a Battery failed. Replace with a new battery. charge. Engine is running and Engine alternator belt Refer to engine OEM information voltmeter does not indicate is loose. to tighten the belt. adequate voltage. 4127 • 42 Super Sport 4/06...

  • Page 44: Dc Schematic

    DC ELECTRICAL SYSTEM SECTION 2 DC Wiring Schematic 4127 • 42 Super Sport 4/06...

  • Page 45: Electrical Schematics

    DC ELECTRICAL SYSTEM SECTION 2 IPS & Diesel Electrical Schematic 4127 • 42 Super Sport 4/06...
  • Page 46 DC ELECTRICAL SYSTEM SECTION 2 Gas Electrical Schematic 4127 • 42 Super Sport 4/06...

  • Page 47: Ac Electrical System

    NOTE: If you leave your boat for more than 48 hours while your boat is connected to shore power, remove all perishables from your refrigerator. If the shore power supply to your boat is interrupted, your food may spoil. 4127 • 42 Super Sport 4/06...
  • Page 48 9. Switch the circuit breaker that is installed in the shore power source box “OFF.” 10. Plug the male end of the shore power cord(s) into the shore power source outlet. 4127 • 42 Super Sport 4/06...
  • Page 49 Inexperienced or untrained people may be killed or seriously injured by incorrectly servicing the AC electrical system. Always disconnect the boat from the shore power source, shut off the generator and disable the inverter before attempting to service the AC electrical system. 4127 • 42 Super Sport 4/06...

  • Page 50: Generator Power

    Do not operate the generator when its cooling system seacock is closed. Operating the generator in this manner can damage it. 5. Open the cooling system’s seacock. 6. Turn the Accessory Battery master disconnect switch to the “ON” position. Open Closed 4127 • 42 Super Sport 4/06...
  • Page 51 SECTION 3 GENERATOR - IPS Generator Seacock Generator Generator Seawater Strainer Fuel Shut-Off Valve Exhaust Thru-Hull Fitting GENERATOR - INBOARD Fuel Shut-Off Valve Generator Generator Seawater Strainer - under unit Generator Seacock Exhaust Thru-Hull Fitting 4127 • 42 Super Sport 4/06...
  • Page 52 “OFF” position. Do not inhale generator exhaust. Generator exhaust contains carbon monoxide, a poisonous gas. Refer to Section 1 - Carbon Monoxide (CO) Warnings for more information on engine exhaust and carbon monoxide. 4127 • 42 Super Sport 4/06...

  • Page 53: Operating Ac Equipment

    The AC Control Center contains the gauges and circuit breakers described on the following pages. AC CONTROL CENTER 4127 • 42 Super Sport 4/06...
  • Page 54 Do not switch the A/C System Water Pump breaker “ON” until after you have opened the seacock that supplies the air conditioning system with seawater. Refer to Section 4 - Air Conditioning System for more information. 4127 • 42 Super Sport 4/06...
  • Page 55 Refer to the OEM information for details on operating the ice maker. Microwave This breaker controls the flow of electricity to the galley’s microwave. Switch this breaker “ON” to supply power to the microwave. Refer to the OEM information for details on operating the microwave. 4127 • 42 Super Sport 4/06...
  • Page 56 NOTE: If this circuit breaker is “ON” but power is not available at any of the receptacles in this group, the circuit’s GFCI receptacle may have tripped. Refer to “Ground Fault Circuit Interrupters” later in this section for more information. 4127 • 42 Super Sport 4/06...
  • Page 57 Generator (right) - Switch this breaker group “ON” if you are using the generator to provide electricity to the Line 2 circuit. Spare(s) These breakers are reserved for aftermarket accessories you install on your boat. 4127 • 42 Super Sport 4/06...
  • Page 58 Do not supply power to the water heater when it is empty. Doing so may damage the unit’s heating element. Refer to Section 4 - Fresh Water System to fill, pressurize and prime the fresh water system before turning on the water heater. 4127 • 42 Super Sport 4/06...

  • Page 59: Ground Fault Circuit Interrupters

    Three GFCI receptacles are installed on your boat. Each one protects a group of receptacles that can include both open outlets and those that are already in use for built-in equipment. GFCI RECEPTACLE LOCATIONS 4127 • 42 Super Sport 4/06...

  • Page 60: Testing Gfci Receptacles

    AC powered device that has an electric motor, such as a vacuum cleaner or electric drill, the device should have a “motor load plate” mounted on it. This plate lists the current that the device draws while operating. 4127 • 42 Super Sport 4/06...

  • Page 61: Bonding System

    Refer to Section 7 - Maintenance Schedule for recommended inspection intervals. NOTE: Damage resulting from stray current or galvanic corrosion is NOT covered under the Carver limited warranty. 4127 • 42 Super Sport 4/06...

  • Page 62: Troubleshooting The Ac Electrical System

    Reset button. The Shore #1 or The circuit breaker failed. Contact your Carver Shore #2 Main circuit Dealer to have the circuit breaker on the AC Control breaker replaced. Center trips immediately after being reset. 4127 • 42 Super Sport 4/06...

  • Page 63: Ac Schematic

    AC ELECTRICAL SYSTEM SECTION 3 AC Wiring Schematics 4127 • 42 Super Sport 4/06...

  • Page 65: Section 4 - Internal Systems

    Reverse cycle operation, however, is affected by the temperature of the seawater. As seawater temperature decreases so does the air conditioning system’s ability to produce warm air. Carver recommends that the air conditioning system not be operated in reverse cycle mode when the seawater temperature is below 40˚F.
  • Page 66 Dinette Air Conditioner Unit Dinette Air Conditioner Seawater Strainer Condensate Thru-Hull Discharge Seawater Seacock Salon Air Conditioner Unit Salon Air Conditioner Condensate Thru-Hull Discharge Salon Air Conditioner Dinette Air Conditioner Discharge Thru-Hull Discharge 4127-500-002 (2) 1/24/06 4127 • 42 Super Sport 4/06...

  • Page 67: Fresh Water System

    Fresh Water System diagram on the next for the exact location of the water pump in the IPS system. The location of the pump in the Inboard system is in the port aft corner of the day hatch. 4127 • 42 Super Sport 4/06...
  • Page 68 Fresh Water Pump and Filter Tank Vent Fresh Water Tank Vent Fresh Water Fill Deck Plate Water Heater Tank Vent Water Heater Cockpit Shore Water Inlet Hand Shower Transom Fresh Water Washdown 4127-516-001 (1) 9/1/05 4127 • 42 Super Sport 4/06...
  • Page 69 Fill, pressurize and prime the fresh water system as described in Section 4 - Filling the Water Tank and Pressurizing and Priming the Water System before turning on the water heater. 4127 • 42 Super Sport 4/06...
  • Page 70 “pistol grip” type that can be opened and closed by squeezing your hand. 4. Open the faucet at the base of the hose fitting to supply water to the hose. Use the washdown as you would a garden hose at your home. 4127 • 42 Super Sport 4/06...

  • Page 71: Raw Water Washdown

    5. Reinstall the seawater strainer. If the strainer leaks when the wash-down seacock is opened, close the seacock, then check the strainer for correct installation. 6. Open the washdown seacock to supply seawater to the washdown pump. 4127 • 42 Super Sport 4/06...

  • Page 72: Bilge System

    Water that freezes in the bilge could cause severe damage to your boat and its components. Refer to Section 8 - Bilge for more information on winterizing the bilge. 4127 • 42 Super Sport 4/06...
  • Page 73 Thru-Hull Discharge Amidships Bilge Pump and Sesnor Manual Bilge Pump Amidships Bilge Pump Thru-Hull Discharge Manual Bilge Pump Thru-Hull Discharge Aft Bilge Pump and Sensor Aft Bilge Pump Thru-Hull Discharge Bilge Strainer 4127-516-003 (1) 10/26/05 4127 • 42 Super Sport 4/06...
  • Page 74 When your boat is on plane, water in the bilge flows to the stern, where the aft bilge pump is located. The amidships bilge pumps are near the lowest point in the hull when the boat is at rest. 4127 • 42 Super Sport 4/06...

  • Page 75: Sanitation System

    NOTE: Whenever you don’t want to hear the toilet’s vacuum pump operating, such as at night, you can temporarily shut it off using the Toilet Run/Sleep switch. Placing the switch in the “Sleep” position shuts off the toilet’s vacuum pump. 4127 • 42 Super Sport 4/06...
  • Page 76 Guest Head Master Head Waste Tank Filter Waste Tank Waste Tank Vent Waste Tank Deck Plate Vacuum Generator for Master Head Vacuum Generator for Guest Head Overboard Discharge Pump Overboard Waste Discharge 4127-516-002 (2) 1/16/06 4127 • 42 Super Sport 4/06...
  • Page 77 If you do lose the plate, you can order a replacement from your Carver Dealer. “WASTE” deck plates are dropped overboard frequently enough that we suggest you carry an extra in your onboard spare parts kit.

  • Page 78: Grey Water Holding System

    All grey water drains as described in Section 4 - Air Conditioning System and/ or Showers and Sinks. The two methods of emptying the grey water tank are described below. Use waste tank deodorizer inside the grey water tank between pumpouts. 4127 • 42 Super Sport 4/06...

  • Page 79: Overboard Discharge

    This activates the waste pump, which pumps the grey water overboard. When the grey water tank is empty, turn the waste pump “OFF.” Operating the waste pump when the grey water tank is empty can damage the pump. 4127 • 42 Super Sport 4/06...
  • Page 80 “OFF.” 9. Replace the “WASTE” deck plate. 10. Close the overboard discharge seacock. 11. On the DC Control Center, switch the Grey Water Pump circuit breaker “OFF.” 4127 • 42 Super Sport 4/06...

  • Page 81: Section 5 - Propulsion

    6. Monitor the fuel gauges as the fuel transfers. When the fuel levels in the tanks are equal, turn the fuel transfer switch to the “OFF” position. 7. On the DC Control Center, switch the Fuel Transfer Pump circuit breaker “OFF.” 4127 • 42 Super Sport 4/06...
  • Page 82 Additionally, the entire fuel system passed Carver’s own pressure testing and inspection. Before your boat is delivered, your Carver Dealer also makes a full inspection of the fuel system. An entry on the Carver Pre-Delivery Service Record verifies the dealer’s completion of this inspection.
  • Page 83 FUEL SYSTEM - INBOARD Starboard Fuel Tank Port Fuel Tank Fuel Filter Fuel Transfer Pump Fuel Supply Shut Off Valve Fuel Fill Fuel Fill Deck Plate Deck Plate Fuel Tank Vent Fuel Tank Vent 4127-216-002 (2) 2/2/06 4127 • 42 Super Sport 4/06...

  • Page 84: Engine Room Ventilation

    If the engine temperature gauges show a higher than normal temperature, the respective cooling system may need to be repaired. If the gauge needle moves quickly toward a high temperature, immediately shut off the affected engine and have the cooling system inspected and repaired. 4127 • 42 Super Sport 4/06...
  • Page 85 Port Engine Oil Hose Starboard Engine Oil Hose Port Engine Starboard Engine OIL CHANGE SYSTEM - INBOARD Oil Changer Pump Port Engine Oil Hose Starboard Engine Oil Hose Port Engine Starboard Engine Generator Generator Oil Hose 4127 • 42 Super Sport 4/06...

  • Page 86: Exhaust System

    (port or starboard) determines the respective engine that the gauges are for. Familiarize yourself with the gauges before starting the engines for the first time. Do not start the engines until you have read and understood the engine OEM information. 4127 • 42 Super Sport 4/06...
  • Page 87 RPM. Doing so could damage the engines. Likewise, your engines have a minimum wide open throttle RPM requirement. If your engine will not reach this minimum RPM contact your Carver dealer. Temperature Gauge The temperature gauge displays the temperature of the coolant in the engine’s cooling system.
  • Page 88 NOTE: Small beads of moisture (condensation) can form behind the glass bezel on some gauges. This does not mean the gauge is defective. The Carver Limited Warranty does not cover the replacement of gauges that are cosmetically affected by condensation.

  • Page 89: Helm Controls

    For the optional electronic controls, the shift/throttle levers from the helm are connected to the engines by an electronic control system. Refer to the OEM information for details on adjusting and maintaining the shift/throttle control systems. 4127 • 42 Super Sport 4/06...

  • Page 90: Preparing For Cruising

    You must use the correct fuel for your boat’s engines. Refer to the engine OEM information for the recommended type of fuel. Avoid spilling fuel on the gelcoat surface of your boat. Fuel can stain the gelcoat and damage the hull accent stripes. 4127 • 42 Super Sport 4/06...
  • Page 91 Bridge Electronics circuit breaker “ON.” d. Switch “ON” any other circuit breakers for equipment you may need. 7. On the Bridge Breaker Panel, verify that the circuit breakers for the navigation equipment you will use are “ON.” 4127 • 42 Super Sport 4/06...

  • Page 92: Starting The Engines

    If the engine is cold when it starts, it may run rough. Advance its shift/ throttle lever slightly to keep it running. 5. When the engine is idling smoothly, start the other engine in the same manner as the first. 4127 • 42 Super Sport 4/06...
  • Page 93 4. Let the engines warm up until the needles on the temperature gauges begin moving up. 5. Make sure any navigation systems installed are operating properly. 6. Periodically perform a visual inspection of the engine room while underway. 4127 • 42 Super Sport 4/06...

  • Page 95: Section 6 - Operating And Maneuvering

    Understanding navigation is very important when operating your boat on the open seas. Instructions on how to navigate your boat are beyond the scope of this guide. Carver encourages you to read Chapman’s Piloting and Seamanship and obtain instruction regarding how to navigate your boat.

  • Page 96: Controlling The Boat

    At marina anchorages, boats are often secured to a mooring buoy. Fouling your propeller with a mooring line is the principal hazard when leaving a mooring. If you use a dinghy to reach your boat, make sure the dinghy line does not foul the propeller. 4127 • 42 Super Sport 4/06...
  • Page 97 Keep the engine running until the pennant eye has been secured on the bitt or bow cleat. If your crewman can not reach the pennant or if you overshoot, get clear and calmly try again. Forward 4127 • 42 Super Sport 4/06...
  • Page 98 You can assist the rate of turn by turning the rudders in the direction of the turn. Starboard Reverse Port Forward 4127 • 42 Super Sport 4/06...
  • Page 99 OPERATING AND MANEUVERING SECTION 6 Tracking Forward (Props Only) Starboard Engine Forward Both Engines Forward Port Engine Forward Tracking Astern (Props Only) Starboard Engine Reverse Port Engine Reverse Both Engines Reverse 4127 • 42 Super Sport 4/06...

  • Page 100: Anchoring

    If both anchors are set in- line and one of them drags, it may cut a trough for the other anchor to follow. 4127 • 42 Super Sport 4/06...

  • Page 101: Mooring Lines

    Spring lines are useful in preventing undesired movement ahead or astern in a berth; they also keep a moored vessel in position when there is a significant rise or fall in tide. 4127 • 42 Super Sport 4/06...

  • Page 102: Getting Underway

    Invite the sales person who sold you the boat or a member of your Carver Dealer’s service staff along for the ride. Carry a pad and pencil with you during this first outing. Write down any questions that come to mind during the cruise so you can discuss them with your dealer.

  • Page 103: Trim Tabs

    DOWN.” Before advancing the throttles, press both switches on the “BOW UP” side for 5 seconds. This lifts the trim tabs to the full “up” position. 4. Advance the throttles to bring the boat on plane. Adjust the engine RPMs for cruising speed. 4127 • 42 Super Sport 4/06...
  • Page 104 Use the “BOW DOWN” side of both trim tab switches simultaneously to adjust the trim. Be careful when making bow down adjustments. Excessive bow down trim can cause considerable bow spray which hampers visibility and reduces control of your boat. 4127 • 42 Super Sport 4/06...

  • Page 105: Section 7 - Maintenance

    The log should list both the activities described in the following charts and the maintenance activities for the OEM equipment as recommended in the OEM information. Make copies of the log and keep the copy in a safe place. 4127 • 42 Super Sport 4/06...

  • Page 106: Control System

    CONTROL SYSTEM Make any necessary throttle and shift adjustments. Lubricate cables and controls. STEERING SYSTEM Inspect linkage and connections. Inspect hydraulic fluid level. Inspect rudder seals. Inspect tiller tie bar linkage. Inspect trim tab reservoir. 4127 • 42 Super Sport 4/06...
  • Page 107 If you notice a rapid deterioration of the zinc anodes, have a professional yacht corrosion specialist check your boat, local seawater and dock. 4127 • 42 Super Sport 4/06...
  • Page 108 Check hull drain plug. Check and test bilge pumps. Inspect sump pump(s). Check and test bilge blowers. Each time Each time Each time Each time before starting before starting before starting before starting engine engine engine engine 4127 • 42 Super Sport 4/06...

  • Page 109: Exterior Maintenance

    Gelcoat eventually dulls with age, much like the paint on your car. When it does this, you can restore the gelcoat’s luster using an electric buffer and a very fine grade polishing compound. Ask your Carver Dealer what brand and grade of polish to use.

  • Page 110: Hull Bottom

    Repairs to fiberglass laminates or structural fiberglass components are best left to the experienced technicians at your Carver Dealer. A gelcoat repair kit is available from your Carver Dealer (Carver part number 82036-03). This kit includes color matched gel, gel hardener and detailed instructions on making gelcoat repairs.
  • Page 111 A variety of decorative stripes are used on the exterior of your boat. Striping tapes are custom-made to Carver’s color and size specifications. Replacement striping tape is only available through Carver Dealers. To remove a damaged section of tape, heat the area with a hair dryer. This softens the adhesive and makes the tape easier to remove.
  • Page 112 Refer to the OEM information for details on cleaning the Sunbrella fabric. To store the fabric: The fabric must be completely dry before you store it. Moisture on stored fabric can cause the glass to cloud, and the fabric and thread to break down. 4127 • 42 Super Sport 4/06...

  • Page 113: Interior Maintenance

    The interior woodwork was finished at the factory with a special industrial/ commercial grade finish. If you need to refinish any woodwork, contact your Carver Dealer to order the appropriate product. Follow the manufacturer’s instructions on the product package when applying the finish.

  • Page 114: Mechanical Systems

    This guards against the valve seizing in the open or closed position. While doing this make sure the valve handle is securely fastened. Tighten any loose handles. Refer to Section 9 - Thru-Hull Fittings for the location of the thru-hull valves. 4127 • 42 Super Sport 4/06...

  • Page 115: Propeller Shaft Seals

    Propeller Shaft Seals The propeller shaft extends through a watertight fitting called a shaft seal. Check the shaft seal every month; if the seal is leaking, contact your Carver Dealer. Make sure the engines are OFF before inspecting the propeller shaft seals.
  • Page 116 There is an in-line filter installed near the pressure water pump. Clean the filter once a month. Refer to Section 4 - Fresh Water System diagram for the exact location of the pump and filter. 4127 • 42 Super Sport 4/06...
  • Page 117 • Remove any oil, dirt or debris from the bilges. Treat the bilges with a commercial bilge cleaner, available from your Carver Dealer, twice a season. Sanitation System Unlike the other systems in your boat, the sanitation system requires ongoing maintenance to avoid problems.

  • Page 119: Section 8 - Winterization And Storage

    Carver recommends that you hire a professional to winterize your boat and its systems. Carver also recommends that you place your boat in dry (out-of- water), as opposed to wet, storage. Some of the winterizing procedures can only be completed when the boat is out of the water.

  • Page 120: Winterization - Systems

    Air Conditioning System Refer to the OEM information for details on winterizing the air conditioning system. Carver recommends that you have a qualified marina winterize your air conditioning system for you. Fresh Water System Refer to Section 4 - Fresh Water System for a diagram of your boat’s fresh water...
  • Page 121 Using the wrong type of antifreeze can damage the fresh water system. The repair of such damage is not included under the terms of the Carver Limited Warranty. 2. Close all faucets. 3. On the DC Control Center, switch the Water Pump circuit breaker “ON.”...
  • Page 122 Using the wrong type of antifreeze can damage the raw water washdown system. The repair of such damage is not included under the terms of the Carver Limited Warranty. 3. Place the disconnected hose end into a bucket that contains about a gallon of nontoxic recreational vehicle antifreeze.
  • Page 123 Using the wrong type of antifreeze can damage the sanitation system. The repair of such damage is not included under the terms of the Carver Limited Warranty. 2. Flush 4 gallons of nontoxic recreational vehicle antifreeze through the toilet and allow it to remain in the waste tank while the boat is in storage.
  • Page 124 Using the wrong type of antifreeze can damage the sanitation system. The repair of such damage is not included under the terms of the Carver Limited Warranty. 2. Flush 10 gallons of nontoxic recreational vehicle antifreeze through the toilet.
  • Page 125 Using the wrong type of antifreeze can damage the grey water holding system. The repair of such damage is not included under the terms of the Carver Limited Warranty. 3. Pour 3 gallons of nontoxic recreational vehicle antifreeze through the shower and each sink drain.
  • Page 126 Using the wrong type of antifreeze can damage the grey water holding system. The repair of such damage is not included under the terms of the Carver Limited Warranty. 3. Pour 3 gallons of nontoxic recreational vehicle antifreeze through the shower and each sink drain.
  • Page 127 Also remove all dried food. Food attracts mice and insects. To give your boat the maximum protection while it is in storage, Carver recommends that you place your boat in dry, as opposed to wet, storage.

  • Page 128: Spring Recommissioning Checklist

     Inspect connections for corrosion Plumbing  Purge fresh water system of antifreeze  Replace Sealand vent filters.  Inspect seacocks  Inspect heads  Chemically charge waste and grey water tanks  Fill fresh water tank 4127 • 42 Super Sport 4/06...

  • Page 129: Section 9 - Warranty And Parts

    Limited Warranty. Carver Dealer’s Responsibilities Warranty Information Your Carver Dealer will review the terms of the warranty and make certain the warranty is registered with Carver. Your Dealer will also instruct you on how to obtain warranty service. Pre-Delivery Service Procedure Your Carver Dealer will prepare your boat for delivery in accordance with the procedures detailed on the Pre-Delivery Service Record.

  • Page 130: Obtaining Warranty Service

    Registration of a previously-owned Carver boat does not extend or in any way modify the boat’s original limited warranty. However, purchasers of a previously- owned Carver boat should register the boat so that, if it is ever necessary, Carver can contact you.

  • Page 131: Hull Identification Number

    OEMs Whenever you need information about a system or component on your boat, contact your Carver Dealer first. If your Dealer is unable to provide the information, contact the manufacturer (OEM) of the system or component. Refer to the OEM information for telephone numbers and addresses.

  • Page 133: Specifications

    Sleeps ......4 (6 optional) Component Locations The illustrations on the following pages show the locations of various components, deck plates, and thru-hull fittings discussed throughout this guide. 4127 • 42 Super Sport 4/06...

  • Page 134: Hatches

    Fire Extinguisher Fresh Water Tanks Generator Port and Starboard Fuel Tanks Water Pump High Water Alarm Accessory Main Circuit Breaker Salon Air Conditioner Aft Bilge Pump Grey Water Tank Port and Starboard Engines Water Heater 4127 • 42 Super Sport 4/06...

  • Page 135: Deck Plates

    Fresh Water Fill Plate Grey Water Pumpout Plate Port Fuel Fill Starboard Fuel Fill Plate & Vent Plate & Vent Hand Shower TV/Telephone Connectors Cablemaster Fresh Water Washdown Fittings Shore Water Connectors Raw Water Inlet 4127 • 42 Super Sport 4/06...

  • Page 136: Thru-Hull Fittings

    5. Dinette Air Conditioning Condensate Discharge 15. Salon Air Conditioning Condensate Discharge 6. Forward Bilge Pump Discharge 16. Aft Bilge Pump Discharge 7. Washer/Dryer Discharge 8. Shower Sump Discharge 9. Rope Locker Drain 4127-526-005 (4) 2/7/06 4127 • 42 Super Sport 4/06...
  • Page 137 (Diesel & Gas Only) (IPS Only) Air Conditiong Pick-Up Generator Water Pick-Up (Diesel & Gas Only) (Diesel & Gas Only) Cockpit Drain Overboard Discharge Salon Air Dinette Air Conditioning Discharge Conditioning Discharge Trasom Drain 4127-526-005 (4) 2/7/06 4127 • 42 Super Sport 4/06...

  • Page 138: Engine Room - Ips System

    Generator Battery Charger Fire Suppression System Engine/Accessory Starboard Fuel Tank Battery Charger Amidships Bilge Pump Salon Air Port and Conditioning Unit Starboard Engines Grey Water Tank Water Heater Aft Bilge Pump 4127-180-001 (1) 5/2/05 4127 • 42 Super Sport 4/06...

  • Page 139: Engine Room - Inboard System

    Starboard Engines Generator Battery Port Fuel Tank Starboard Fuel Tank Amidships Bilge Pump Generator & Seacock - under unit Salon Air Conditioning Unit Aft Bilge Pump Water Heater Grey Water Tank Fresh Water Tanks 4127 • 42 Super Sport 4/06...

  • Page 140: Bill Of Material

    WARRANTY AND PARTS SECTION 9 Bill of Material 4127 • 42 Super Sport 4/06...

  • Page 141: Carver Limited Warranty

    WARRANTY AND PARTS SECTION 9 Carver Limited Warranty 4127 • 42 Super Sport 4/06...

Table of Contents
